Nextion NX4832T035 3.5 inch HMI TFT LCD Touch Display Module is a seamless Human Machine Interface (HMI) solution that provides a control and visualization interface between a human and a process, machine, application or appliance. Nextion is mainly applied to the Internet of thing (IoT) or consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tube.
Nextion includes a hardware part (a series of TFT boards) and a software part (theNextion editor). The Nextion TFT board uses only one serial port to communicate. It lets users avoid the hassle of wiring. It has been noticed that most engineers spend much time on application development but get unsatisfactory results. As a solution to this situation, Nextion editor has mass components such as button, text, progress bar, slider, instrument panel etc. to enrich the interface design. Furthermore, the drag-and-drop function ensures that users spend less time in programming, which will reduce 99% of their development workloads. With the help of this WYSIWYG editor, designing a GUI is a piece of cake.
It's easy to adapt Nextion family HMI to existing projects. Users just need to provide it a UART.

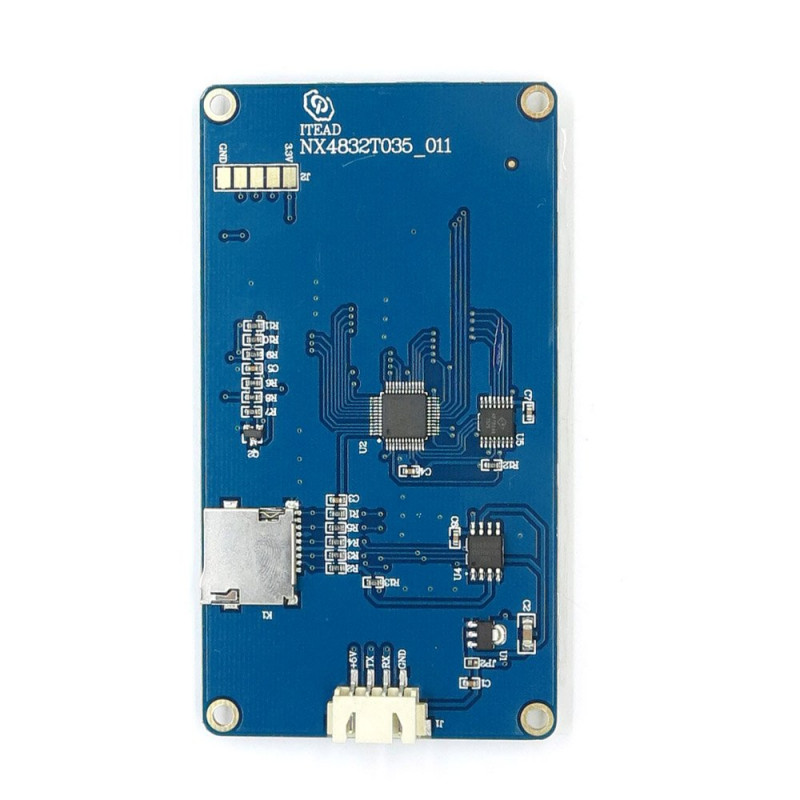

3.5 Basic Nextion NX4832T035 HMI TFT Intelligent Display Module is a powerful 3.5 HMI, which is a member of Nextion family.
Features:
- 480 x 320 Resolution
- RGB 65K true to life colors
- TFT screen with integrated resistive touch panel
- 4 pin TTL serial interface
- 16M Flash memory for User Application Code and Data
- Onboard micro-SD card slot for firmware upgrade
- Visual Area: 73.44mm(L)48.96mm(W)
- Adjustable Brightness: 0~180 nit, the interval of adjustment is 1%

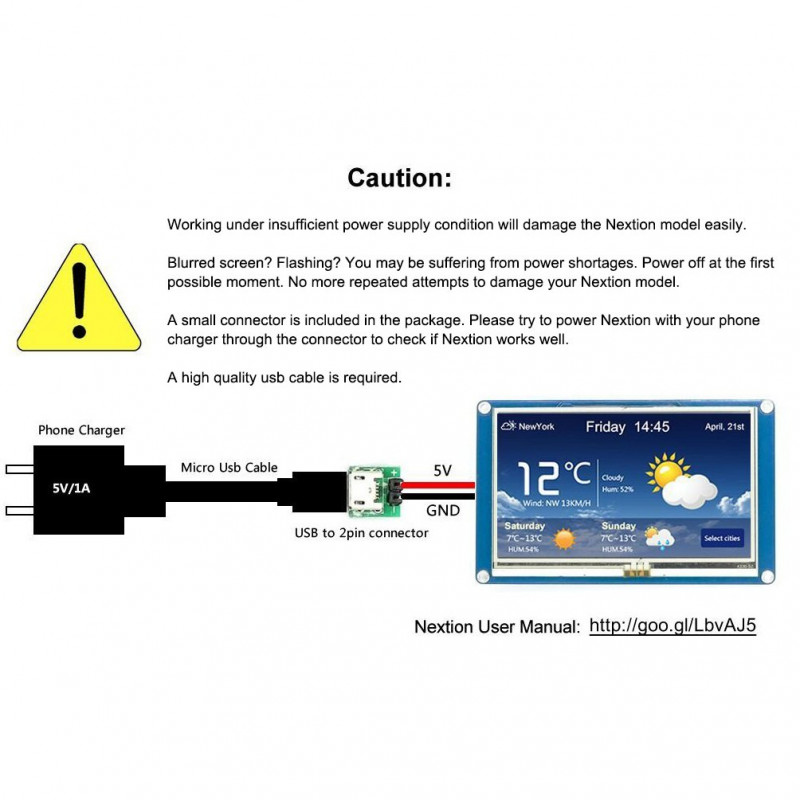

- 5V500mA DC recommended the power supply
- 5V145mA power consumption
- Certificates: CE/EMC, RoHS(certificates)
Interfaces Performance
| Test Conditions | Min | Typical | Max | Unit | |
|---|---|---|---|---|---|
| Serial Port Baudrate | Standard | 2400 | 9600 | 115200 | bps |
| Output Voltage(TXD) | Output 1, Iout=1mA | 3.0 | 3.2 | V | |
| Output Voltage(TXD) | Output 0, Iout=-1mA | 0.1 | 0.2 | V | |
| Input Voltage(RXD) | Output 1, Iout=1mA | 2.0 | 3.3 | 5.0 | V |
| Input Voltage(RXD) | Output 0, Iout=-1mA | -0.7 | 0.0 | 1.3 | V |
| Serial Port Mode | TTL | ||||
| Serial Port | 4Pin_2.54mm with Lock | ||||
| USB interface | NO | ||||
| SD card socket | Yes (FAT32 format), support maximum 32G Micro TF/SD Card | ||||

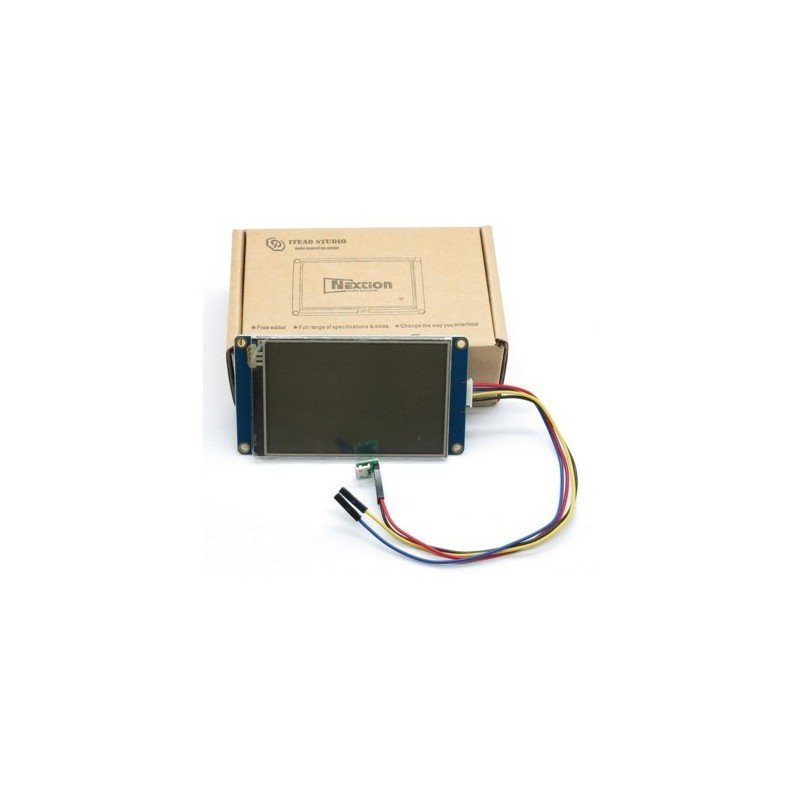

Package Includes:

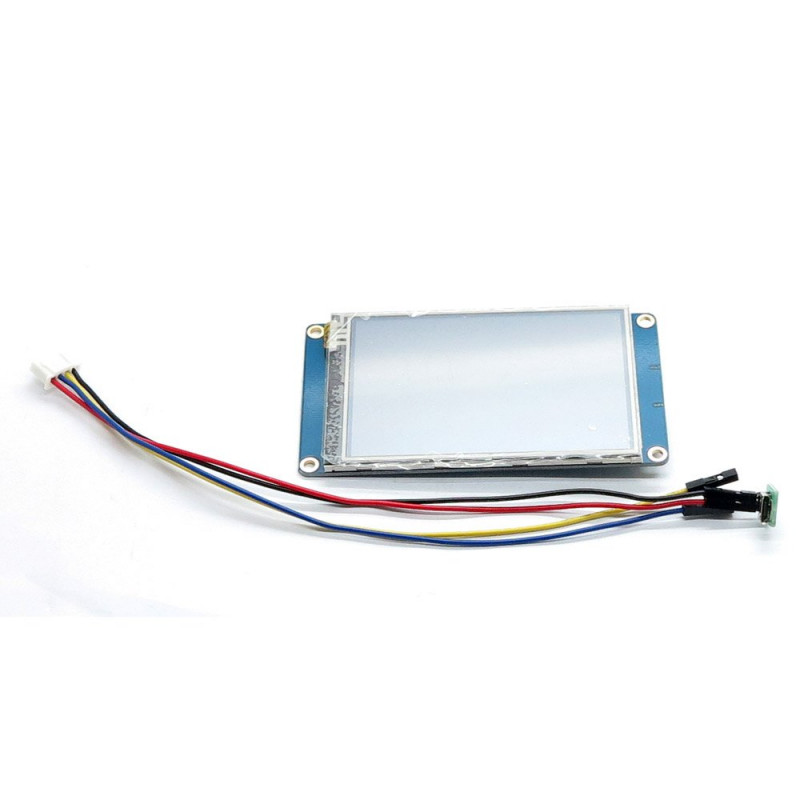

1 x Nextion NX4832T035 3.5 HMI Kernel TFT LCD Touch Display Module
1 x Connecting Wires
1 x Power Supply Test Board
Specifications :-
| Model No. | NX4832T035 |
| Display Type | 011R(R:Resitive Touchscreen) |
| Operating Voltage (VDC) | 4.75 ~ 7 |
| Max. Operating Current (mA) | 145 |
| Net weight (gm) | 52 |
| Touch Type | Resistive |
| Colors | 65K (65536) |
| Recommended Power Supply | 5V, 500mA, DC |
| Working Temperature Range (C) | -20 to 70 |
| Working Humidity Range | 10% to 90% RH |
| USB Interface | No |
| Micro-SD Card Slot | Yes (FAT32 format), support maximum 32G Micro SD Card |
| Flash Memory | 16 MB |
| RAM | 3584 BYTE |
| Brand/Manufacturer | Nextion |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Nextion 3.5 inch BASIC NX4832T035 HMI TFT LCD Touch Display Module
- Product Code: EC-6738
- Availability: 24
-
Rs.5426.82
