Nextion NX4827T043 4.3 TFT LCD ManMachine Interface HMI Kernel Intelligent Touch Display is a seamless Human Machine Interface (HMI) solution that provides a control and visualization interface between a human and a process, machine, application or appliance. Nextion is mainly applied to the Internet of thing (IoT) or consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tube.

Nextion includes a hardware part (a series of TFT boards) and a software part (theNextion editor). The Nextion TFT board uses only one serial port to communicate. It lets users avoid the hassle of wiring. We noticed that most engineers spend much time in application development but get unsatisfactory results. As a solution to this situation, Nextion editor has mass components such as button, text, progress bar, slider, instrument panel etc. to enrich the interface design. Furthermore, the drag-and-drop function ensures that users spend less time in programming, which will reduce 99% of their development workloads. With the help of this WYSIWYG editor, designing a GUI is a piece of cake.

Its easy to adapt Nextion family HMI to existing projects. Users just need to provide it a UART


Features:

  1. Compatible with Raspberry Pi A+, B+ and Raspberry Pi 2.
  2. 480 x 272 Resolution
  3. RGB 65K true to life colors
  4. TFT Screen with integrated 4-wire Resistive Touch Panel
  5. Easy 4 pin interface to any TTL Serial Host
  6. 16M Flash memory for User Application Code and Data
  7. Onboard micro-SD card for firmware upgrade
  8. Visual Area:95.04mm(L)53.86mm(W)
  9. Adjustable Brightness:0~230 nit, the interval of adjustment is 1%
  10. 5V250mA power consumption
  11. CE/EMC, RoHS certified (certificates)


Technical support

For technical support, please open a ticket onItead Support System.

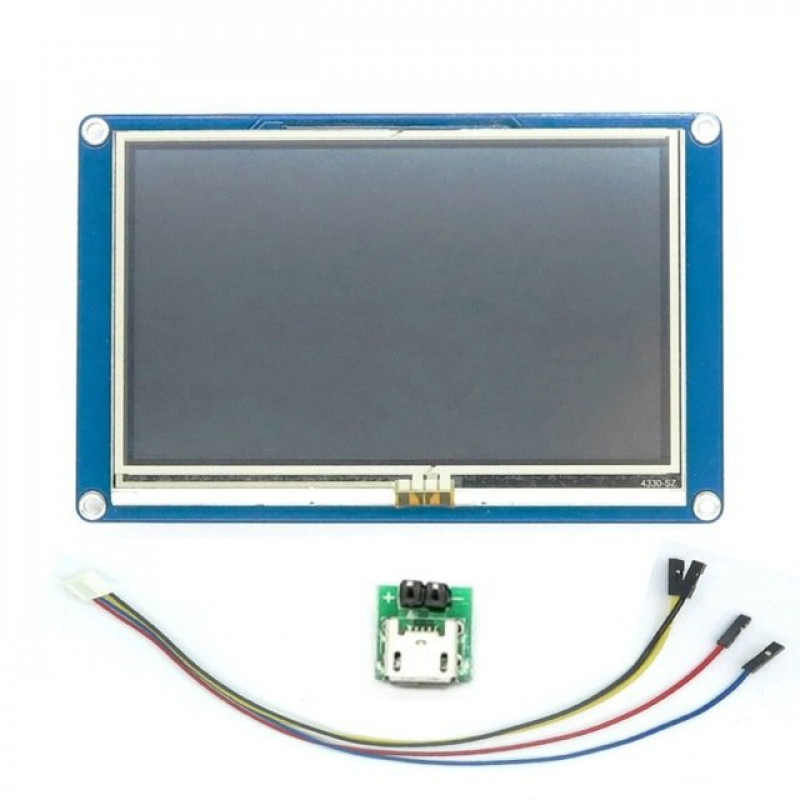

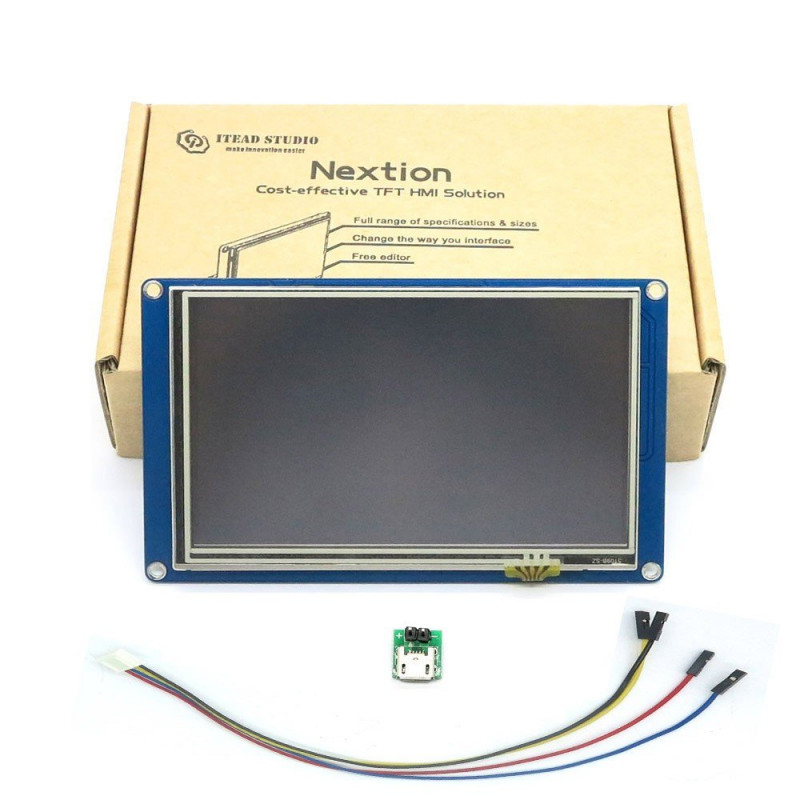

Package Includes:

1 x Nextion NX4827T043 4.3 TFT LCD Intelligent Touch Display

1 x Connecting Wires

1 x Power Supply Test Board



Specifications :-

Model No.

NX4827T043

Display Type

011R(R:Resitive Touchscreen)
NX4827T043

Operating Voltage (VDC)

4.75 ~ 7

Max. Operating Current (mA)

250

Net weight (gm)

93

Touch Type

Resistive

Colors

65K (65536)

Recommended Power Supply

5V, 500mA, DC

Working Temperature Range (C)

-20 to 70

Working Humidity Range

10% to 90% RH

USB Interface

No

Micro-SD Card Slot

Yes (FAT32 format), support maximum 32G Micro SD Card Memory Features

Flash Memory

16 MB

RAM

3584 BYTE



Brand/Manufacturer Nextion
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 6134.82 (Inclusive of all Taxes)
