The Nextion Enhanced NX4827K043 Generic 4.3 HMI Touch Display is more powerful than the standard ones. Compare to the basic Nextion displays, the enhanced ones have added some new functions, such as: supporting built-in RTC, supporting save data to Flash, supporting GPIO, larger flash capacity, and larger CPU clock. The enhanced Nextion series has 7 size covers from generic 2.4 to 7.0.

Nextion Enhanced NX4827K043is a powerful 4.3 HMI TFT display, with 32MB Flash data storage space, 1024 byte EEPROM, 8192 byte RAM.With GPIO supported, now customers can use Nextion to control external devices.

Nextion is a Seamless Human Machine Interface (HMI) solution that provides a control and visualization interface between a human and a process, machine, application or appliance. Nextion is mainly applied to the Internet of Things (IoT) or the consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tubes.

Nextion includes a hardware part (a series of TFT boards) and a software part (theNextion editor).The Nextion TFT board uses only one serial port to communicate. It lets users avoid the hassle of wiring. We noticed that most engineers spend much time on application development but get unsatisfactory results. As a solution to this situation, Nextion editor has mass components such as button, text, progress bar, slider, instrument panel, etc. to enrich the interface design. Furthermore, the drag-and-drop function ensures that users spend less time in programming, which will reduce 99% of their development workloads. With the help of this WYSIWYG editor, designing a GUI is a piece of cake. Its easy to adapt Nextion family HMI to existing projects- users just need to provide it a UART.


Features:

  1. Supports built-in RTC
  2. Supports GPIO
  3. SD Card interface: support max 32G Micro TF/SD card (FAT32 file format)
  4. Flash data storage space: 32MB
  5. EEPROM: 1024 bytes
  6. RAM: 8192 bytes
  7. Instruction buffer: 1024 bytes
  8. Color: 65K (65536) colors
  9. Resolution: 480272 pixel
  10. Adjustable Brightness: 0~230 nit- the interval of adjustment is 1%

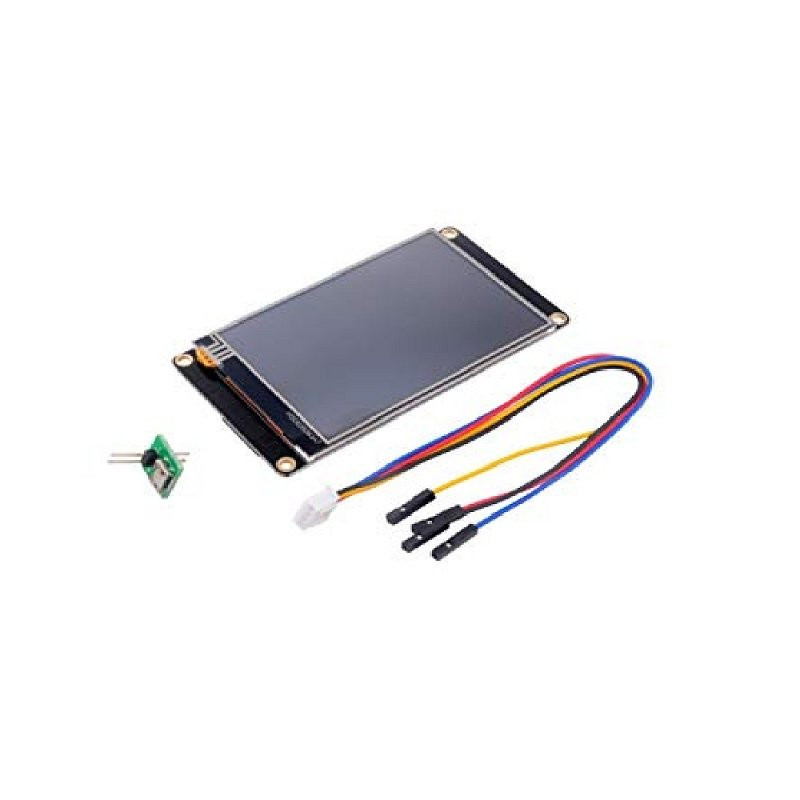

Package includes:

1 4.3 Nextion Enhanced HMI Display

1 power supply test board

1 4-pin grove cable



Specifications :-

Model No.

NX4827K043

Display Type

NX4827K043_011R (R: Resistive touchscreen)

Operating Voltage (VDC)

4.75 ~ 7

Max. Operating Current (mA)

250

Display Layout Size (L x W x H) mm

120 74 6.2

Net weight (gm)

93.8

Touch Type

Resistive

Colors

65K (65536)

Recommended Power Supply

5V, 1.0A, DC

Working Temperature Range (C)

-20 to 70

Working Humidity Range

10% to 90% RH

USB Interface

No

Micro-SD Card Slot

Yes (FAT32 format), support maximum 32G Micro SD Card

Flash Memory

32 MB

RAM

8192 bytes

Backlight

LED

Backlight Lifetime (Avg)

>30,000 Hours

Display Resolution

480272

Visual Area (L x W) mm

95.04 53.86



Brand/Manufacturer Nextion
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 6488.82 (Inclusive of all Taxes)
