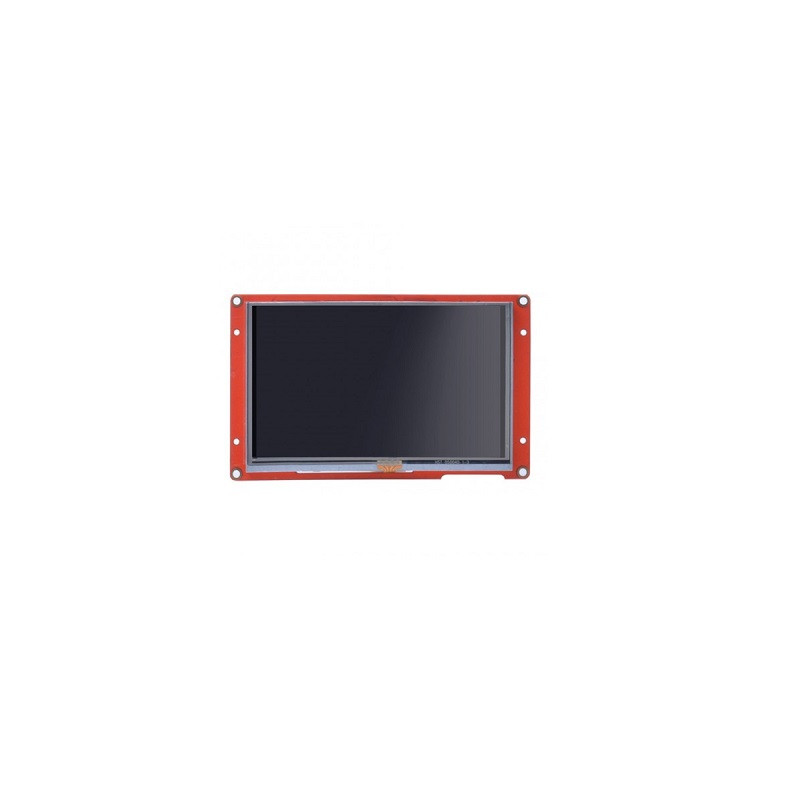

Nextion Intelligent NX4827P043-011C 4.3 HMI Capacitive Touch Display having a capacitive touch screen with enclosure. Nextion displays have a built-in microcontroller that controls the display, it takes care of which button has been clicked, creating text, storing images, or change the background.
The Nextion Intelligent NX4827P043-011C-Y 4.3 Capacitive Touchscreen Display with Enclosure is so simple to the interface that it can easily work with Arduino, Raspberry Pi, ESP8266, ESP32, PIC Microcontroller, AVR controller, ARM Microcontroller and you wont believe it will work even with basic 8051 microcontrollers basically it will work with any board or Microcontroller that has UART port.

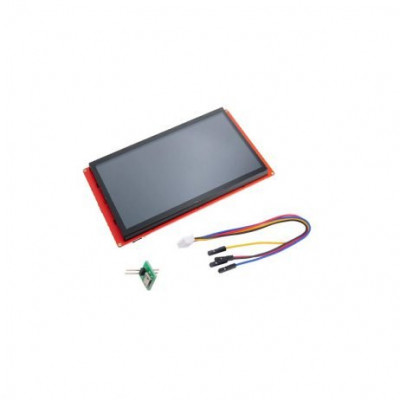

Note: The small power supply test board and connecting wire inside the package allow you to test if the electrical supply is enough or not.
Features:
- 128 MB of Flash memory
- 1024 Byte EEPROM
- XH2.54 4 Pins (+5V, TX, RX, GND) TTL serial interface
- 1.25T-2-2A Audio port for external speaker connection
- 8 Digital extended GPIO (IO0-IO7 support input, output, and component binding event, IO6-IO7 support PWM)
- Built-in RTC support
Package Includes:
1 x Nextion Intelligent NX4827P043_011C 4.3 HMI Capacitive Touch Display
Specifications :-
| Model | NX4827P043-011C |
| Operating Voltage | 5 V |
| Operating Current | 220 mA |
| FLASH Memory | 120 MB |
| RAM Memory | 512 KB |
| Serial Port Mode | 3.3V/5.0V TTL |
| Touch type | Capacitive |
| Touches | > 1 million |
| Brightness | 300nit |
| Resolution | 480272 pixel |
| Color | 65K 65536 |
| Operating Temperature Range (C). | -20 to 70 |
| Length (mm) | 120 |
| Width (mm) | 75 |
| Height (mm) | 13 |
| Weight (gm) | 110 |
| Brand/Manufacturer | Nextion |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 6248.1 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Nextion 4.3 inch Intelligent NX4827P043-011C HMI Capacitive Touch Display
- Product Code: EC-7404
- Availability: Out Of Stock
-
Rs.5295.00
- (Excluding 18% GST)
