Nextion Intelligent NX4827P043_011C_Y 4.3 HMI Capacitive Touch Display with an enclosure having a Capacitive touch screen. Nextion displays have a built-in microcontroller that controls the display, it takes care of which button has been clicked, creating text, storing images, or change the background. The Nextion display then communicates with your microcontroller using serial communication at a 9600 baud rate.

The Nextion Intelligent NX4827P043-011R 4.3 Capacitive Touchscreen Display is so simple to the interface that it can easily work with Arduino, Raspberry Pi, ESP8266, ESP32, PIC Microcontroller, AVR controller, ARM Microcontroller and you wont believe it will work even with basic 8051 microcontrollers basically it will work with any board or Microcontroller that has UART port.

Note: The small power supply test board and connecting wire inside the package allow you to test if the electrical supply is enough or not.

Features:

1. 4.3 LCD-TFT HMI display module
2. 480 x 272 screen resolution
3. RGB 65K true-to-life colors
4. Capacitive touch panel
5. 300 nit Brightness
6. Onboard 200MHz MCU
7. 512 KB of SRAM
8. 128 MB of Flash memory
9. 1024 Byte EEPROM

Package Includes:

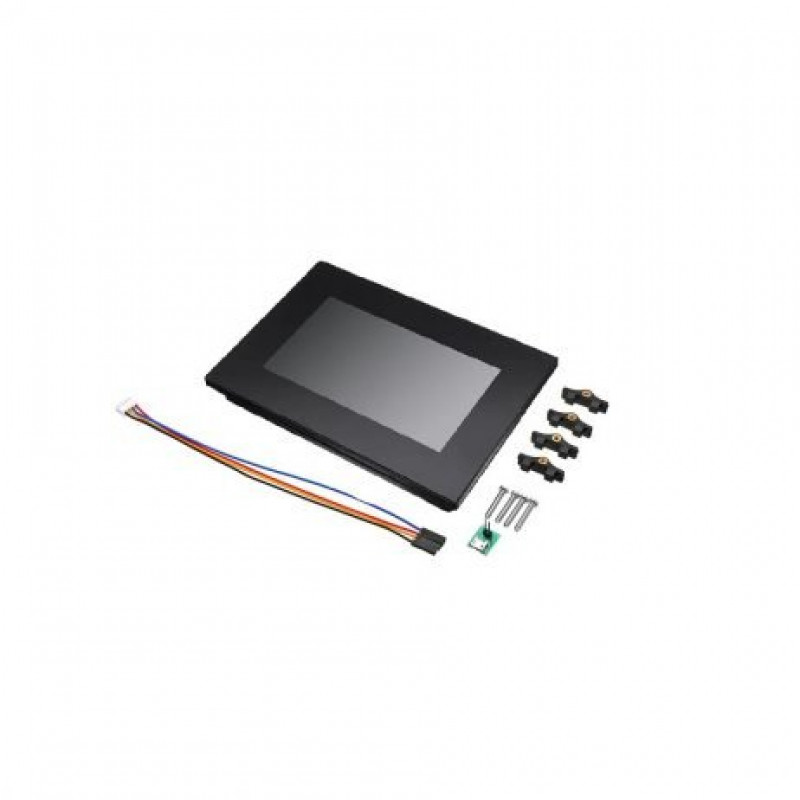

1 x Nextion Intelligent NX4827P043_011C_Y 4.3 HMI Capacitive Touch Display with enclosure

Specifications :-

Model	NX4827P043-011C-Y
Operating Voltage	5 V
Operating Current	220 mA
FLASH Memory	120 MB
RAM Memory	512 KB
Serial Port Mode	3.3V/5.0V TTL
Touch type	Capacitive
Touches	> 1 million
Backlight lifetime	>30,000 Hours
Brightness	300nit
Operating Temperature Range (C).	-20 to 70
Length (mm)	140
Width (mm)	100
Height (mm)	20
Weight (gm)	185
