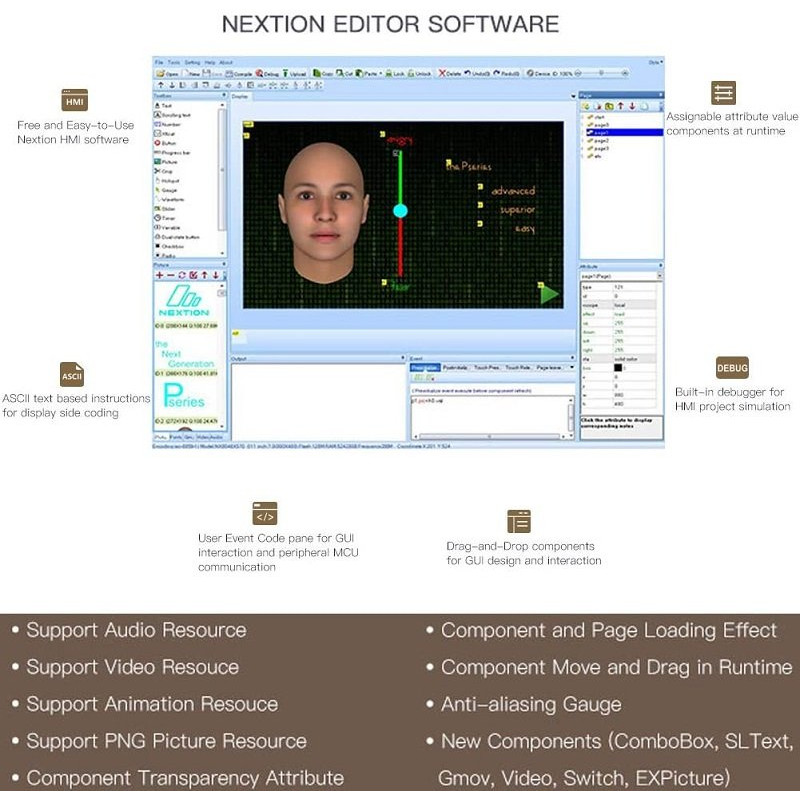

Nextion is a Human Machine Interface solution combining an onboard processor and memory touch display with Nextion Editor software for HMI GUI project development. Using the NEXTION Editor software, you can quickly develop the HMI GUI by drag-and-drop components (graphics, text, button, slider, etc.) and ASCII text-based instructions for coding how components interact at the display side. Nextion HMI display connects to peripheral MCU via TTL Serial (5V, TX, RX, GND) to provide event notifications that peripheral MCU can act on, the peripheral MCU can easily update progress and status back to Nextion display utilizing simple ASCII text-based instructions.

The Intelligent Series products have more powerful hardware in terms of MCU, Flash storage, and SRAM compared with Basic Series and Enhanced Series. Whats more and new? The audio, video, and animation play functions enriches users project HMI interaction. The Intelligent Series supports advanced software features and functions such as transparent component, page loading effect, component Move, and Drag .etc.


Features:

  1. Nextion Type: Intelligent Series
  2. Nextion Models: NX8048P070-011C (18.1 cm capacitive touchscreen without enclosure)

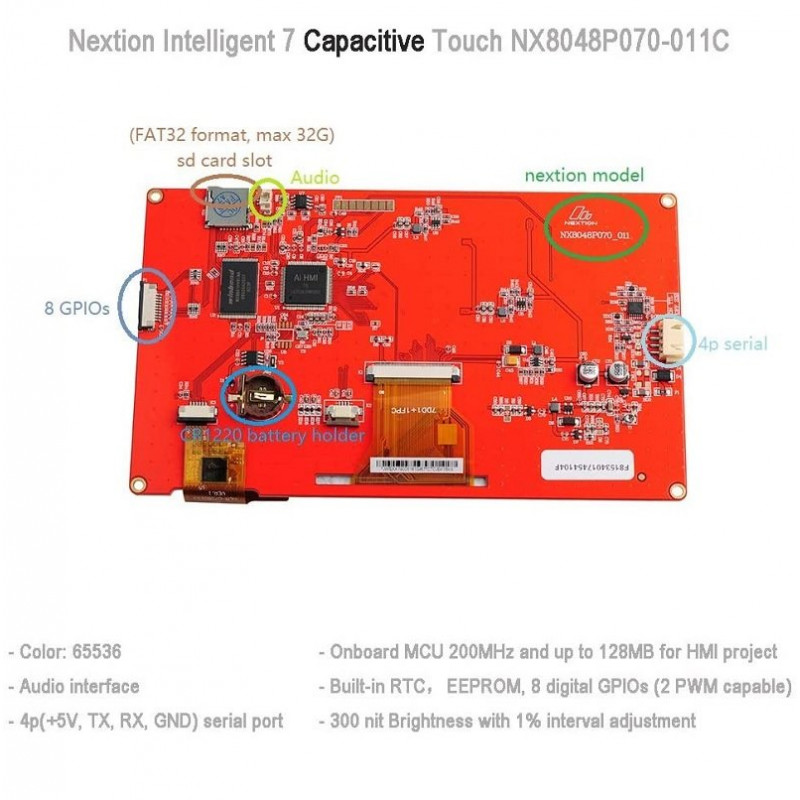

  3. Built-in RTC support (Battery type: CR1220)
  4. Operating Voltage:5V(Typical)
  5. Operating Current: 430mA(VCC=+5V, Brightness is 100%)


Package Includes:

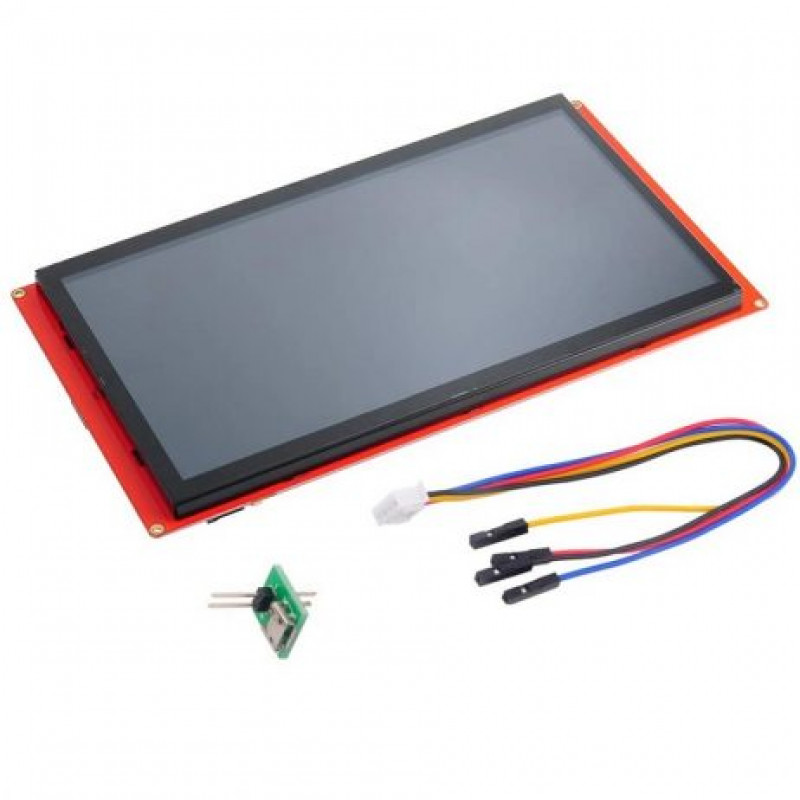

1 x Nextion NX8048P070-011C HMI Display

1 x XH2.54 4P wire

1 x Power supply test board



Specifications :-

Model Name

NX8048P070-011C



Color

65K 65536 colors

Layout size

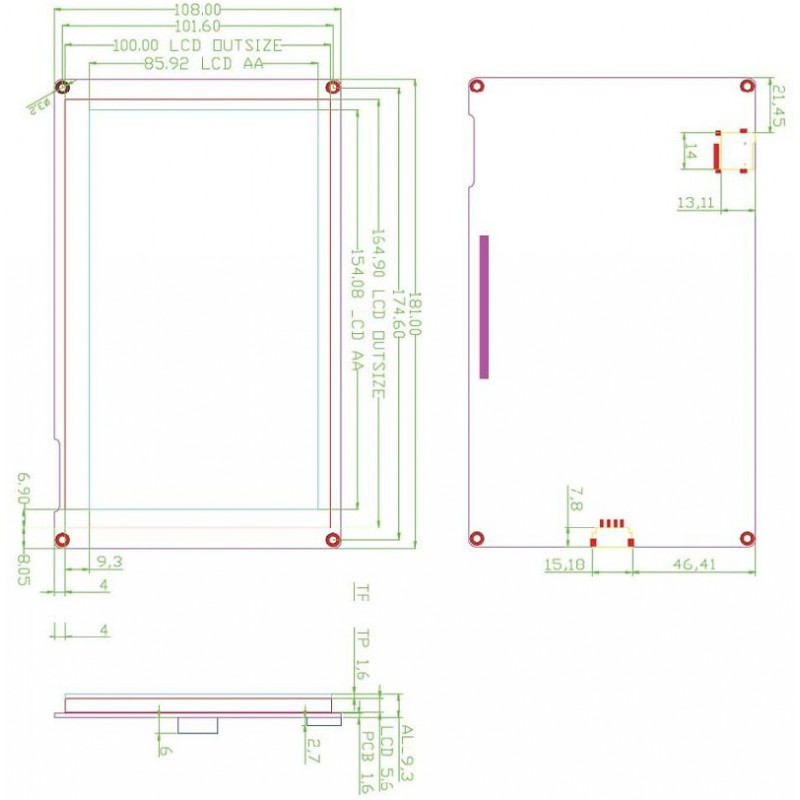

18.1cm(L) x 10.8cm(W) x 0.93cm(H)



Resolution

800 x 480 pixel

Touch type

Capacitive

Touches

> 1 million

Backlight

LED

Backlight lifetime (Average)

>30,000 Hours

Brightness

300nit

RAM Memory

512KB

FLASH Memory

120 MB

Instruction Buffer

1024 BYTE

User Storage

1024 BYTE

Weight

310g


Brand/Manufacturer Nextion
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 10264.82 (Inclusive of all Taxes)
