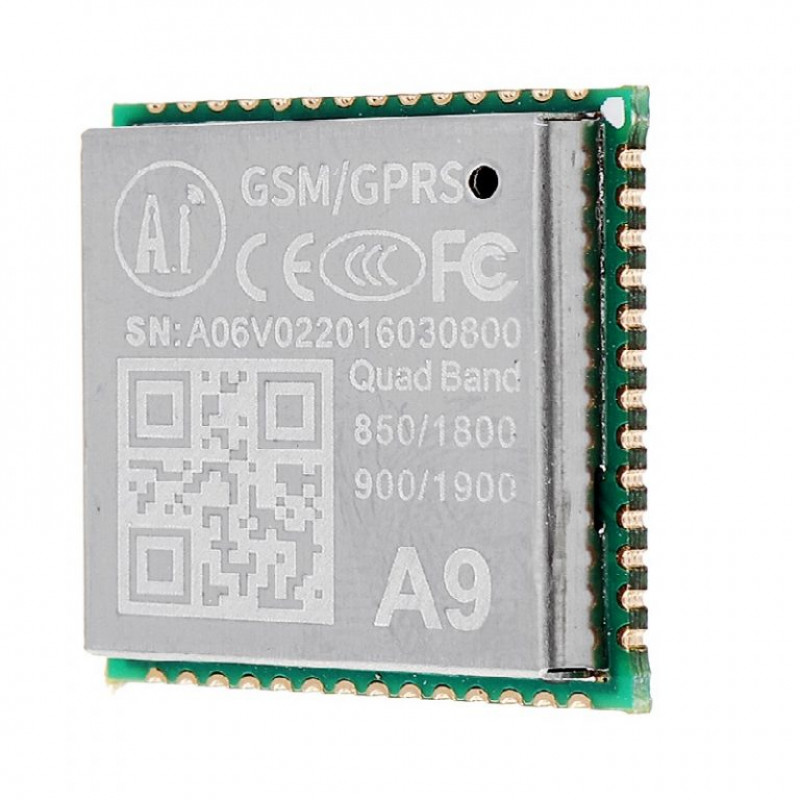

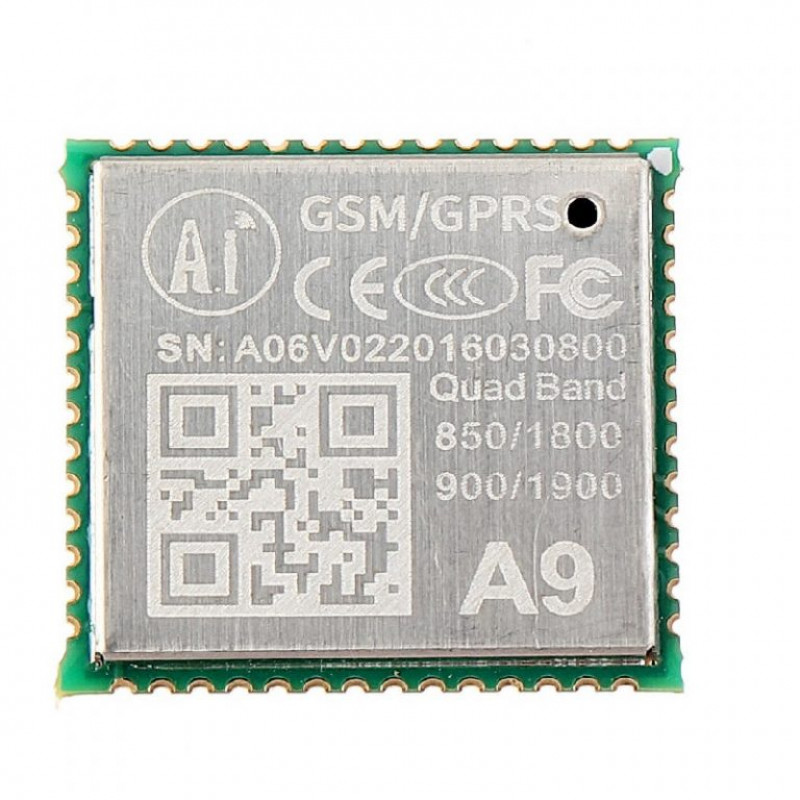

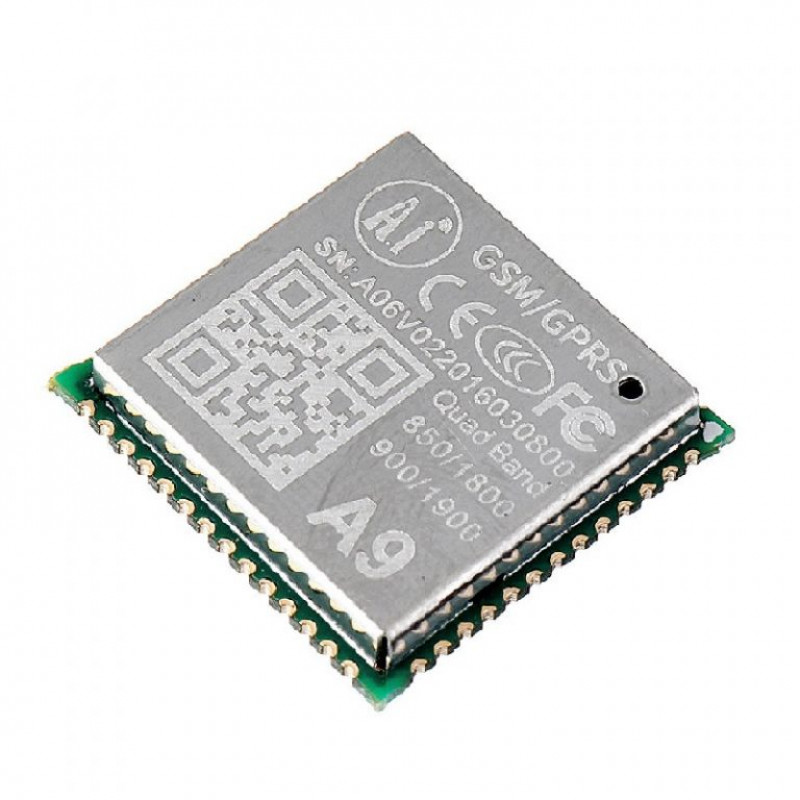

Ai Thinker A9 GPRS Series Module can be used in a wide range of IoT applications and is ideal for IoT applications for home automation, industrial wireless control, wearable electronics, wireless location sensing devices, wireless location system signals, and other IoT applications.

The A9 is a complete quad-band GSM / GPRS module in a compact design SMD package. Its stable performance, the appearance of compact, cost-effective, could meet the diverse needs of customers.

Features:

1. Supports GSM/ GPRS frequency: 800/ 900/ 1800/ 1900 MHz.
2. Supports voice calls and SMS messages.
3. The data rate is 85.6 Kbps
4. Supports firmware upgrade via serial port
5. Support PBCCH
6. Supports 3 serial ports, one download serial port, one AT command port.
7. Working temperature: -30 -80
8. Working voltage: 3.5v 4.2v (its best to power by 4v)
9. Power voltage: >3.5 Volts
10. Low power consumption:
11. Sensitivity GPIO level: 2.8 volts

Package includes:

1 x Ai Thinker A9 GPRS Series Module
