BW15 module highly integrated Wi-Fi and Bluetooth SOC module, The main chip RTL8720CF is a high integrated low power chip that supports 2.4 GHz wireless LAN (WLAN) and Bluetooth low power (v4.2); a combination of Real-M300MCU, in a single chip WLAN MAC, with the 1T1R function of WLAN base band. And it provides configurable GPIO, and these GPIO are configured as digital peripherals, for different applications and control purposes. BW15 also integrates internal memory to achieve complete WIFI and BLE4.2protocol functions. Embedded memory configuration also supports simple application development.

Features:-

• Support 802.11 b/g/n 1x1,2.4GHz
• Support MCS7 up to 20 MHz /40MHz
• Low Power Architecture
• Support low power transmit/receive, suitable for short range applications
• Low power beacon listening mode, low power receiving mode, low power pending mode
• Built-in AES/SHA hardware engine
• Built-in 2 MB Flash
• Support BLE4.2BQB
• Support for central and peripheral models
• The internal co existence mechanism between WIFI and BT shares the same antenna
• Supporting STA/AP/STA+AP operating mode
• Support One-click distribution network for Android, IOS Smart Config(APP)/AirKiss
• Supports local serial port upgrades and remote firmware upgrades (OTA)
• General AT commands can be used quickly

Specifications:-

• Model : BW15
• Package : SMD-16
• Dimensions (mm) : 24x16x3(±0.2)mm
• Antenna form : On-board PCB antenna/ IPEX antenna
• Spectrum range : 2400-2483.5MHz
• Bluetooth : Bluetooth 4.2BLE
• Operating temperature : -40C ~ 85 ° C
• Storage environment : -40 ° C ~ 125 ° C, <90% RH
• Power supply range : Supply voltage 3.0 V ~3.6 V, supply current >500 mA
• Support interface : UART / GPIO / ADC / PWM / I2C / SPI / PDM

Package Includes:-

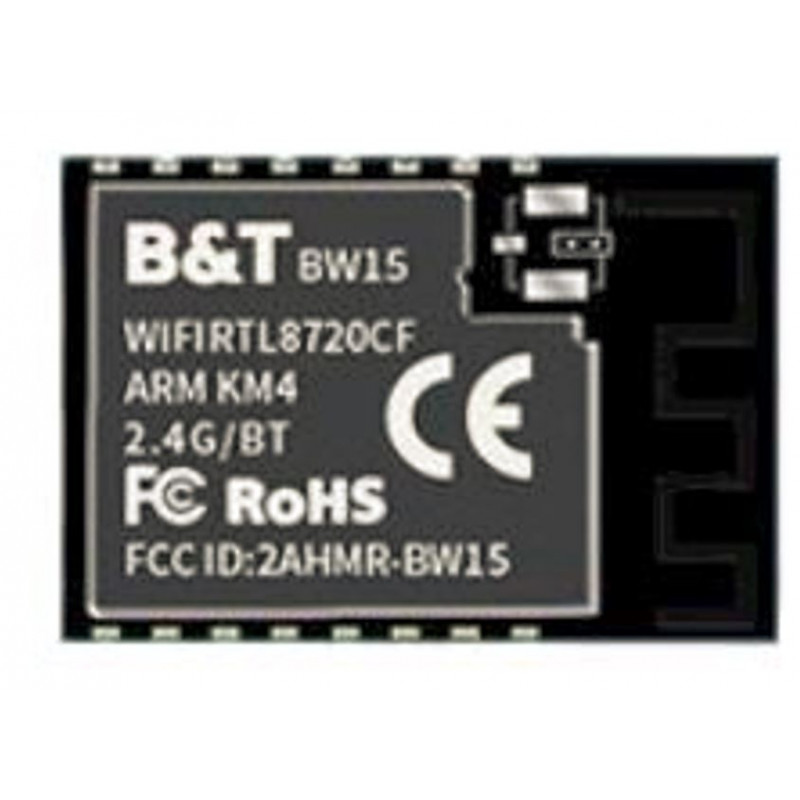

1 x Ai Thinker BW15 WiFi SOC module
