The ESP-12F WiFi module was developed by Ai-Thinker Technology. The core processor ESP8266 integrates the industry-leading Tensilica L106 ultra-low-power 32-bit micro MCU in a small package with 16-bit Lite mode, clocked at Supports 80 MHz and 160 MHz, supports RTOS, and integrates Wi-Fi MAC/BB/RF/PA/LNA.

The ESP-12F WiFi module supports the standard IEEE802.11 b/g/n protocol, a complete TCP/IP protocol stack. Users can use this module to add networking capabilities to existing devices or to build separate network controllers.
The ESP8266 is a high-performance wireless SOC that offers maximum utility at the lowest cost and unlimited possibilities for embedding WiFi functionality into other systems
The ESP8266 is a complete and self-contained WiFi network solution that can operate independently or as a slave running on other hosts MCUs. The ESP8266 is capable of booting directly from external flash memory when it is powered by an application and is the only application processor in the device. The built-in cache helps improve system performance and reduce memory requirements.


Features:

  1. The smallest 802.11b/g/n Wi-Fi SOC module
  2. Low power 32-bit CPU, can also serve as the application processor
  3. Up to 160MHz clock speed
  4. Built-in 10 bit high precision ADC
  5. Supports UART/GPIO/IIC/PWM/ADC
  6. SMD-22 package for easy welding
  7. Integrated Wi-Fi MAC/BB/RF/PA/LNA
  8. Support multiple sleep patterns. Deep sleep current as low as 20uA
  9. UART baud rate up to 4Mbps
  10. Embedded LWIP protocol stack
  11. Supports STA/AP/STA + AP operation mode
  12. Support Smart Config/AirKiss technology
  13. Supports remote firmware upgrade (FOTA)
  14. General AT commands can be used quickly
  15. Support for the two development, integration of windows, Linux development
    environment


Package includes:

1 x Ai Thinker ESP-12F ESP8266 Serial WiFi Module


Additional information

Module Model

ESP-12F

Package/Case

SMD22

Antenna Type

PCB

Input Supply Range (VDC)

3.0 ~ 3.6

Transmit Power (dBm)

802.11b: 162 dBm (@11Mbps)
802.11g: 142 dBm (@54Mbps)
802.11n: 132 dBm (@HT20, MCS7)

Receiving Sensitivity

54 Mbps (3/4 64-QAM): -70dBm
6 Mbps (1/2 BPSK): -88dBm
CCK, 1 Mbps : -90dBm
CCK, 11 Mbps: -85dBm
HT20, MCS7 (65 Mbps, 72.2 Mbps): -67dBm

UART Baudrate

Support 300 ~ 4608000 bps Default 115200 bps

Operating Temperature (C)

-20 to 85

Frequency Range

2412 ~ 2484MHz

Operating Current

80mA

Operating Voltage

3.0-3.6V

Security

WEP/WPA-PSK/WPA2-PSK

IO Port

9

Interface

UART/GPIO/ADC/PWM

Length (mm)

24

Width (mm)

16

Height(mm)

3

Weight (gm)

3


Brand/Manufacturer Ai Thinker
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 211.22 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

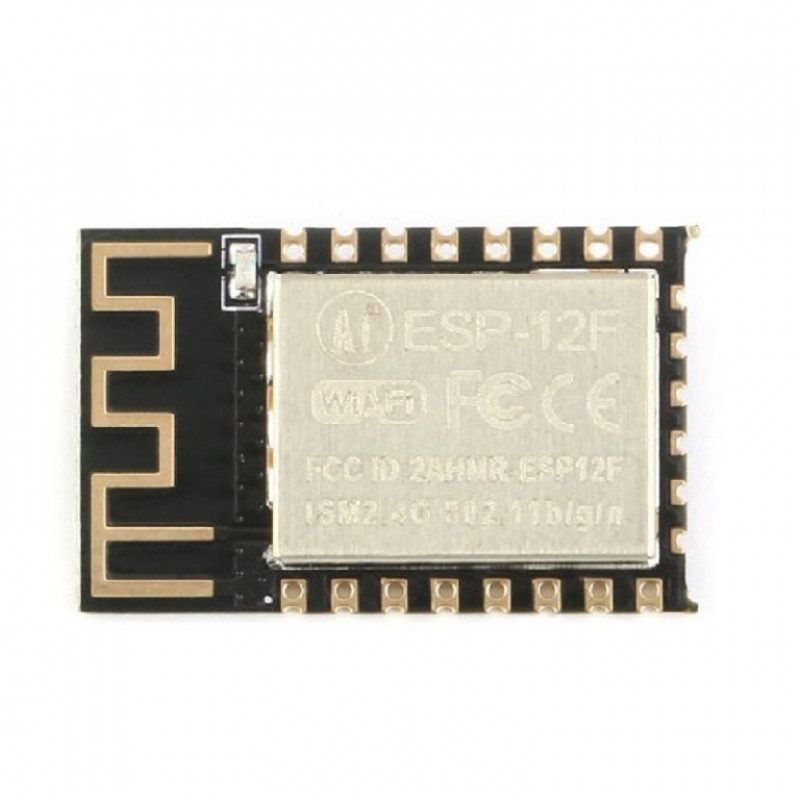

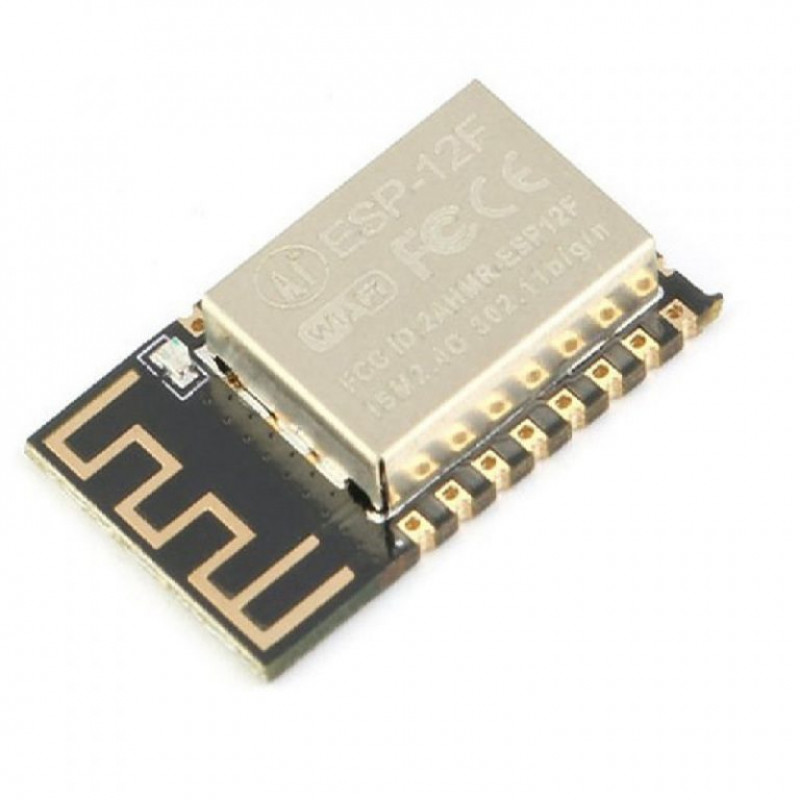

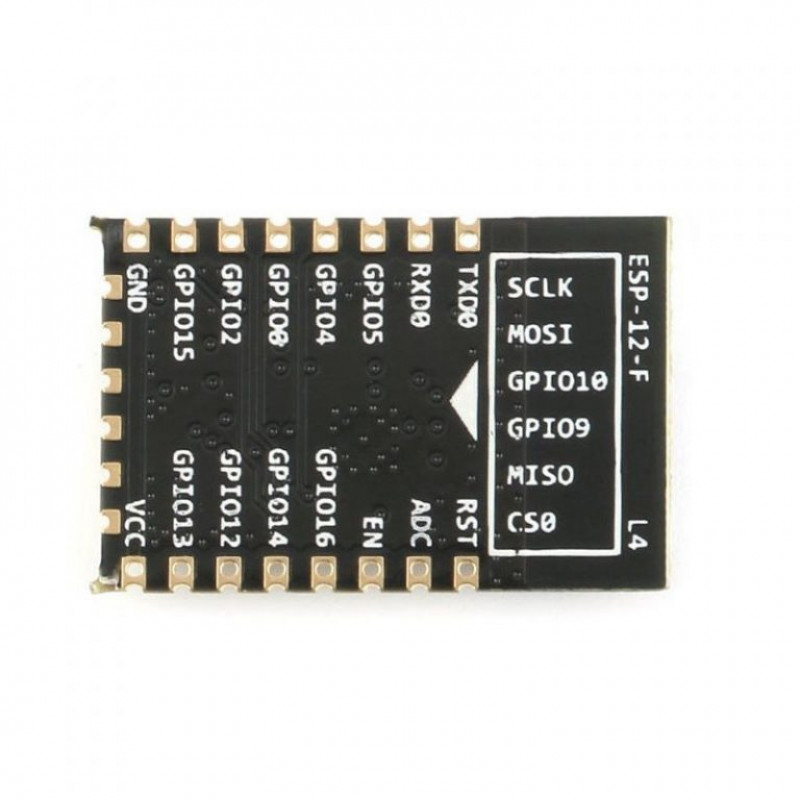

Ai Thinker ESP-12F ESP8266 Serial WiFi Module

  • Product Code: EC-4960
  • Availability: 299
  • Rs.179.00
  • (Excluding 18% GST)
