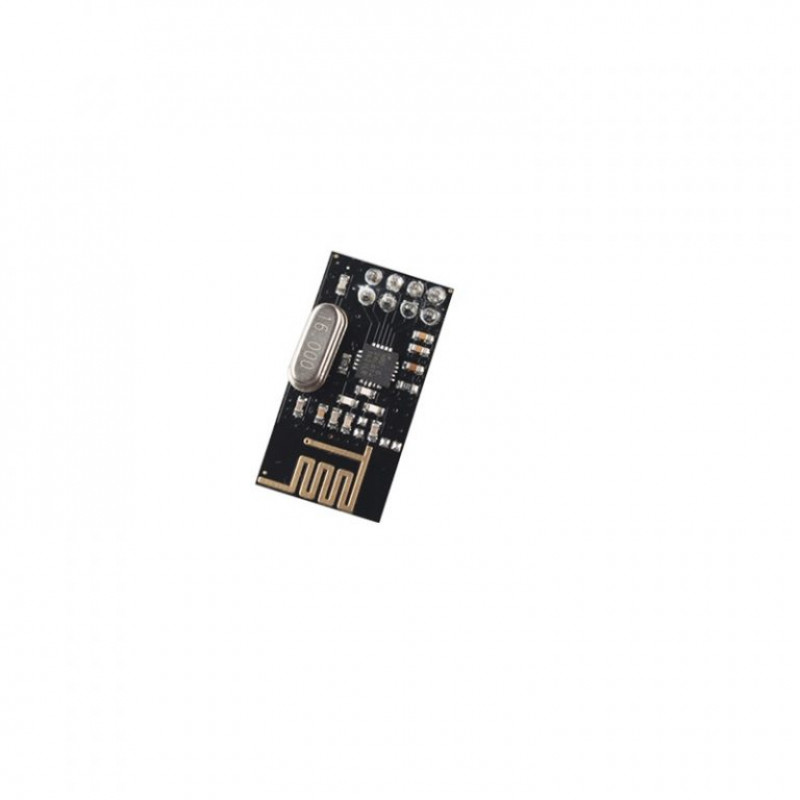

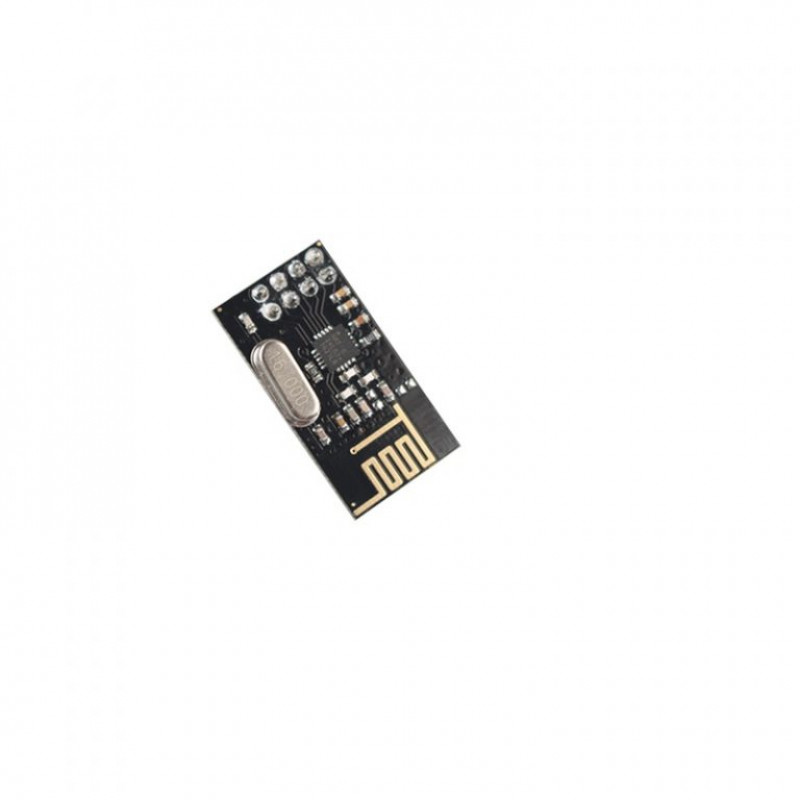

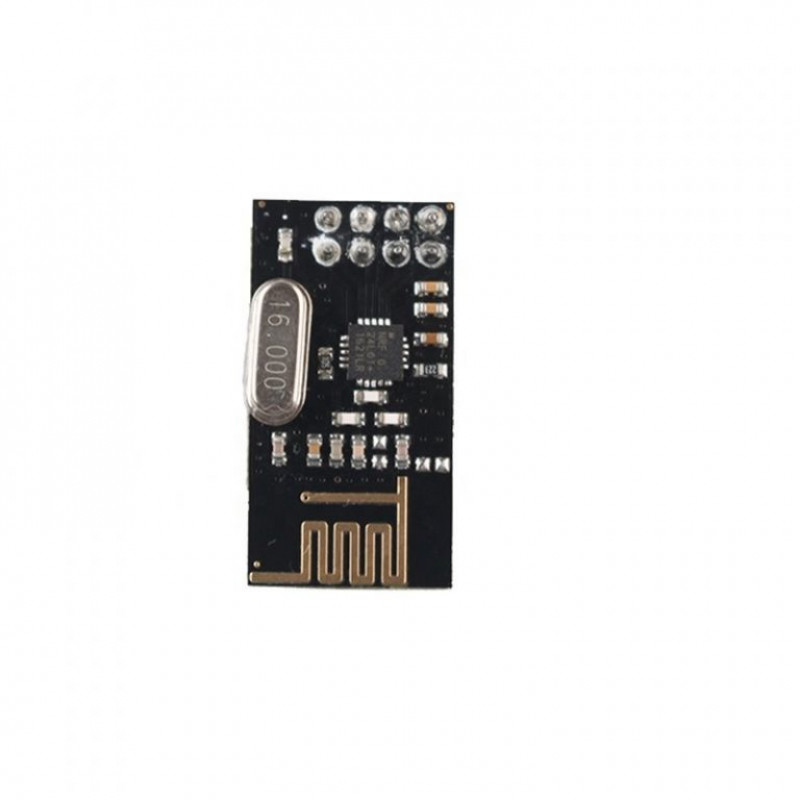

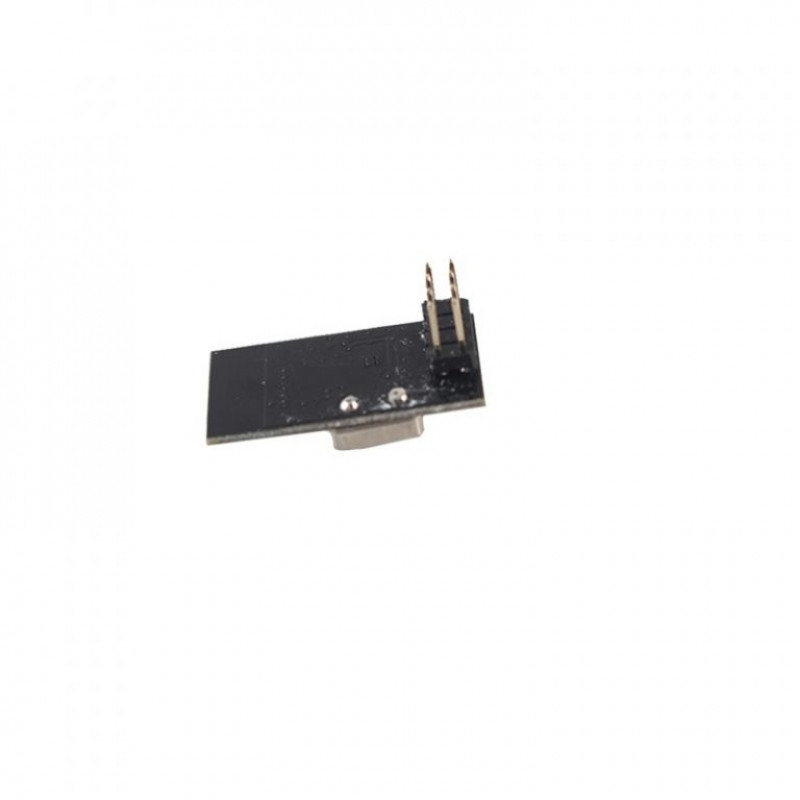

Ai Thinker NF-01-N Wireless Transceiver is a 100mW power 2.4G wireless module with high airspeed (up to 2Mbps), SPI interface, a pure hardware module for transceiver and it has high stability, high cost performance, good spectrum test characteristics, small Volume, using all industrial grade components.

NF-01-N can be widely used in various Internet of Things applications, suitable for wireless mouse and keyboard, wireless remote control, somatosensory equipment, active RFID, NFC, low-power self-organizing network wireless sensor network nodes, etc.

The NF-01-N is packaged in DIP-8. It can be quickly connected to existing products, whether it is for learning or mass production. It can be directly inserted and removed without welding. It is very convenient to use.


Features:

  1. DIP-8 ultra-small package
  2. built-in 2.4G antenna, compact size, easy to use
  3. Supports six channels of data reception
  4. Supports general modulation methods such as GFSK/FSK
  5. Supports 2Mbps/1Mbps/250Kbps data rate
  6. Multi-frequency point: 126 frequency points to meet the needs of multi-point communication and frequency hopping communication
  7. Internally integrated high PSRR LDO
  8. Wide supply voltage range: 1.9~3.6V
  9. Average emission current as low as 110mA
  10. Receive sensitivity: -96dBm@250kbps
  11. Maximum transmit power: 7dBm
  12. 4-wire SPI interface with speeds up to 10MHz
  13. Internally integrated intelligent ARQ baseband protocol engine
  14. Transceiver data hardware interrupt output
  15. Support 1bit RSSI output


Package includes:

1 x Ai Thinker NF-01-N Wireless Transceiver Module


Additional information

Module Model

NF-01-N

Package

DIP-8

Frequency Range

2400MHz~2525MHz

Power Supply

1.9~3.6V, Typical 3.3V

Modulation methods

GFSK/FSK

Data rate

2Mbps/1Mbps/250Kbps

Voltage range

1.9~3.6V

Average emission current

as low as 110mA

Receive sensitivity

-96dBm@250kbps

Maximum transmit power

7dBm

Width (mm)

29

Length (mm)

11

Height (mm)

11

Weight (gm)

3


Brand/Manufacturer Ai Thinker
Country Of Origin China
