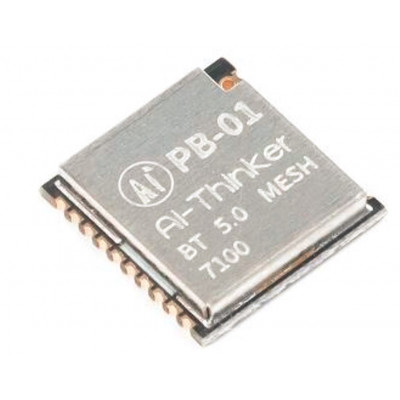

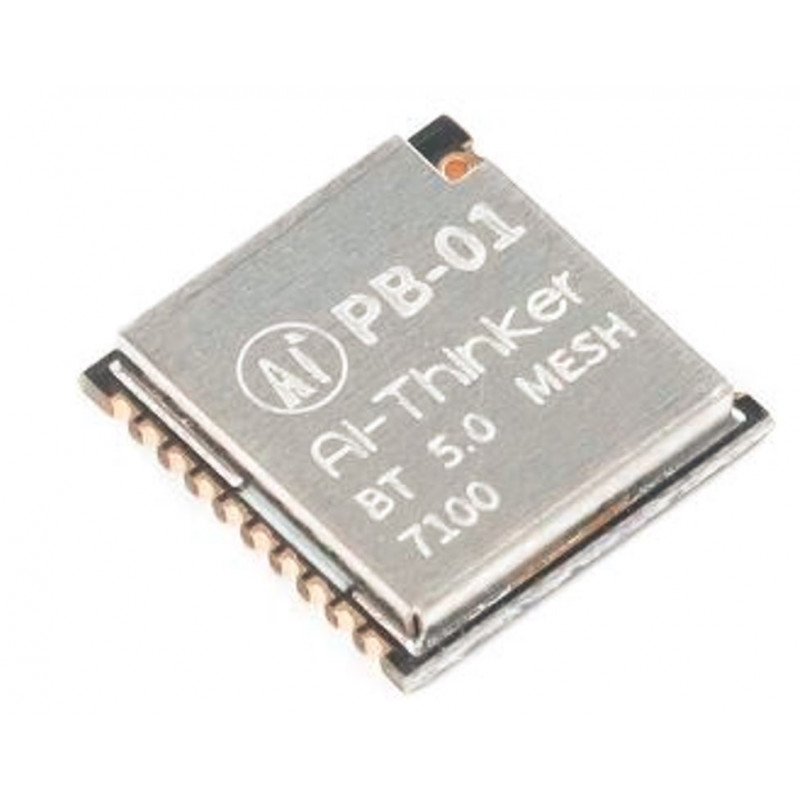

PB-01 is a BLE 5.0 low-power Bluetooth module based on PHY6212 chip; supports SIG Mesh.. PHY6212 is equipped with ARM® Cortex™-M0 32-bit processor, 138KB SRAM, ultra-low power consumption, high performance and wireless multi- mode characteristics,, supports BLE functions of security, applications and wireless updates.PB-01 module has the function of Bluetooth mesh networking; the communication between devices through peer-to-peer network, using Bluetooth broadcast for communication, can ensure timely response in the case of multiple devices. It is mainly used in intelligent lamp control, wearable smart device, retail payment and other Internet of things fields; it can meet the requirements of low power consumption, low delay, low cost wireless data communication.

Features:-

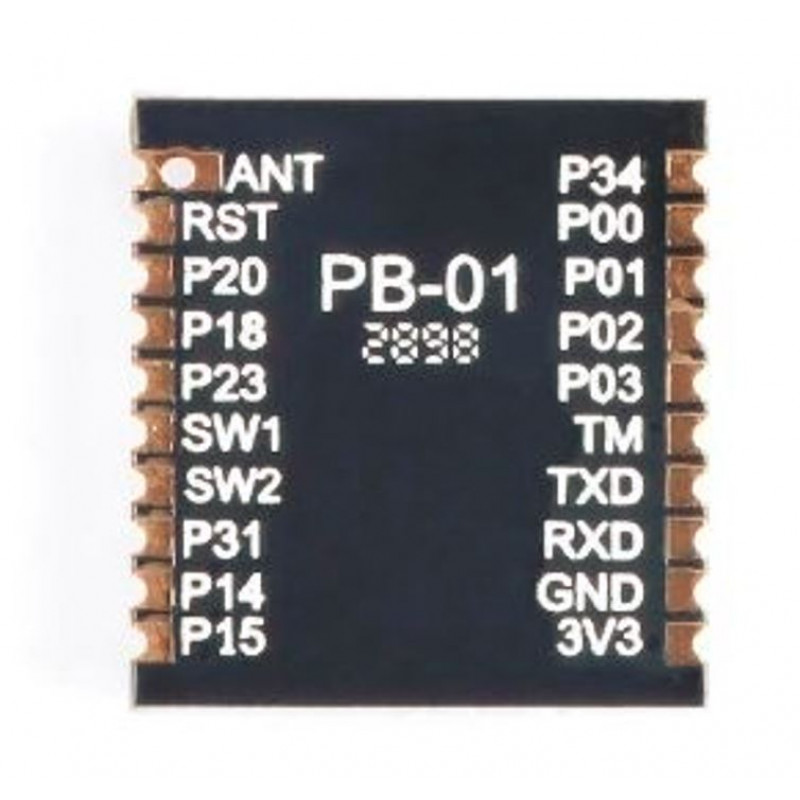

• 1.1 mm spacing SMD-20 package
• 6 channels PWM output
• The antenna adopts half-hole pad mode, which can lead to the main board.
• With the reservation of antenna holes, for inserted the spring antenna directly
• Brightness (duty cycle) adjustment range 5%-100%
• Factory default cool and warm color 50%
• PWM output frequency 1KHz
• Features with Nightlight
• Switching Color Temperature with Wall Switch

Specifications:-

• Model : PB-01
• Dimensions : 12.2x13.0x2.3(±0.2) MM
• Package: SMD-20
• Wireless Standards : Bluetooth 5.0
• Frequency range : 2400~ 2483.5 MHz
• Maximum transmit power Maximum : 10dBm
• Receiving sensitivity : -93±2 dBm
• Interface : GPIO/PWM/SPI/ADC
• Operating temperature : -40℃ ~ 85 ℃
• Storage environment : -40℃~125℃,<90%
• Power supply range : Supply voltage 2.7 V ~ 3.6 V, supply current ≥50mA
• Power consumption:

                                         Deep sleep mode :0.7uA (IO wake-up)

                                         Dormancy mode :2uA (RTC wake-up)

                                          RX mode :7 mA

                                          TX (10dBm): 25mA

Package Includes:-

1 x Ai Thinker PB-01 Bluetooth module
