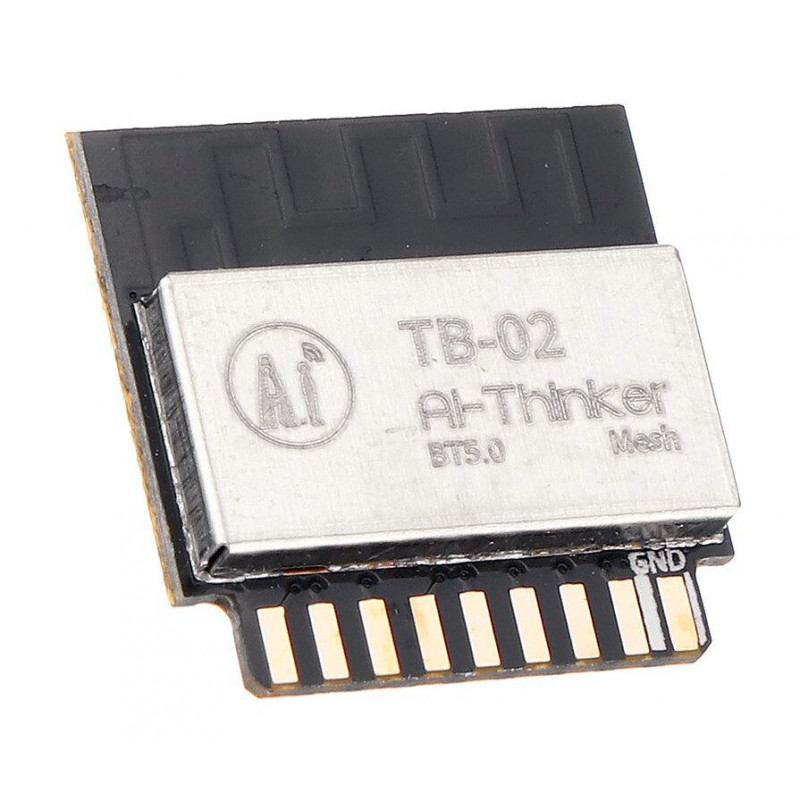

The TB-02 intelligent lighting module is a Bluetooth module based on the TLSR8250F512 chip  and  compatible  with  BT  5.0  low-power  Tmall  Genie  Mesh.  This  module  supports  the  Bluetooth  module  directly  controlled  by  Tmall  Genie  and  has  a  Bluetooth  mesh  networking  function. Peer-to-peer network communication, using Bluetooth broadcast for communication, can ensure timely response in the case of multiple devices. It is mainly used in intelligent light control,  which  can  meet  the  requirements  of  low  power  consumption,  low  latency,  and  short-range wireless data communication.

Features:-

• Can be directly controlled by Tmall Elf without a gateway

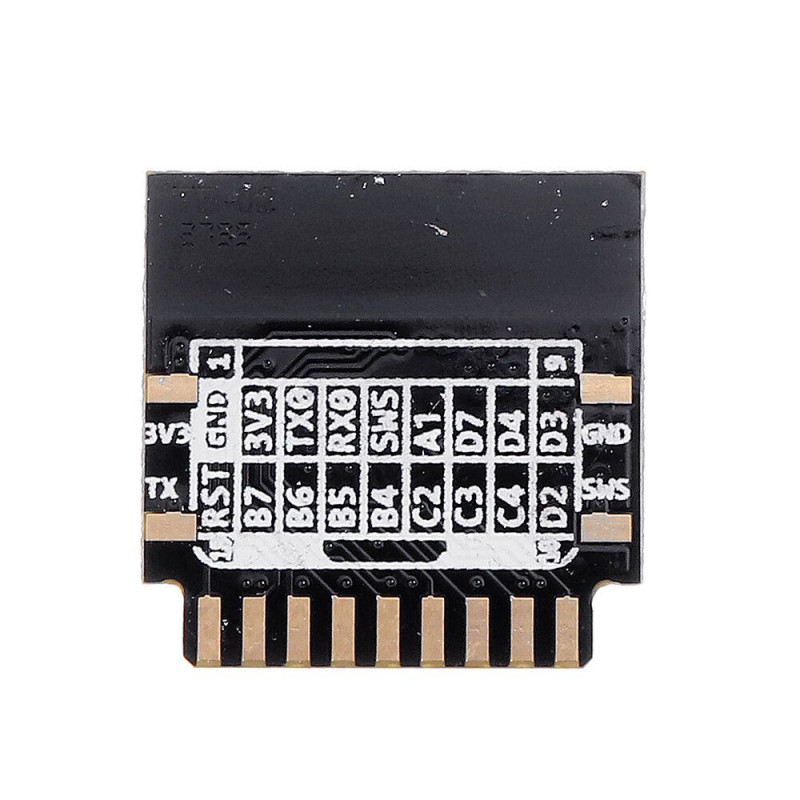

• 1.6mm pitch pin vertical solder DIP18 package
• 6 PWM outputs
• With on-board antenna, no need to design antenna
• Brightness (duty cycle) adjustment range 5% -100%
• Factory default 50% duty cycle for cool and warm colors
• PWM output power 1KHz
• With night light function
• With wall switch to switch color temperature function

Specifications:-

• Model Name : TB-02
• Size : 18.0x18.0x2.8(±0.2)mm
• Wireless Standard : Bluetooth V5.0
• Frequency Range : 2402 ~ 2480MHz
• Max Sensitivity : -93.2dBm
• Interface : GPIO/PWM/SPI/ADC
• Work Temperature : -20°C~ 70 °C
• Store Temperature : -40 °C~ 125°C, < 90%RH
• Voltage Range : Voltage 2.7V ~ 3.6V, Current≥50mA
• Power : Deep Sleep Mode：0.8uA Sleep Mode：1.8uA TX：12.62mA
• Transmission distance : 80m ~ 150m

Package Includes:-

1 x Ai Thinker TB-02 Bluetooth module
