The TB-02 intelligent lighting module is a Bluetooth module based on the TLSR8250F512 chip and compatible with BT 5.0 low-power Tmall Genie Mesh. This module supports the Bluetooth module directly controlled by Tmall Genie and has a Bluetooth mesh networking function. Peer-to-peer network communication, using Bluetooth broadcast for communication, can ensure timely response in the case of multiple devices. It is mainly used in intelligent light control, which can meet the requirements of low power consumption, low latency, and short-range wireless data communication.

Features:-

• Can be directly controlled by Tmall Elf without a gateway
• 1.6mm pitch pin vertical solder DIP18 or SMD-13 package
• 6 PWM outputs
• With on-board antenna, no need to design antenna
• Brightness (duty cycle) adjustment range 5% -100%
• Factory default 50% duty cycle for cool and warm colors
• PWM output power 1KHz
• With night light function
• With wall switch to switch color temperature function

Specifications:-

• Model Name : TB-02
• Size : 18.0x18.0x2.8(±2)mm
• Package : DIP-18 or SMD-13
• Wireless Standard : Bluetooth V5.0
• Frequency Range : 2400 ~ 2483.5MHz
• Output Power : 10dBm
• Sensitivity : -93dBm
• Interface : GPIO/PWM/SPI/ADC
• Work Temperature : -20°C ~ 70 °C
• Store Temperature : -40°C~ 125°C, < 90%RH
• Voltage Range : Voltage 2.7V ~ 3.6V, Current: >=50mA
• Power Deep Sleep Mode: 0.8uA
• Sleep Mode: 1.8uA
• TX: 12.62mA
• Transmission Distance : 80m ~ 150m

Package Includes:-

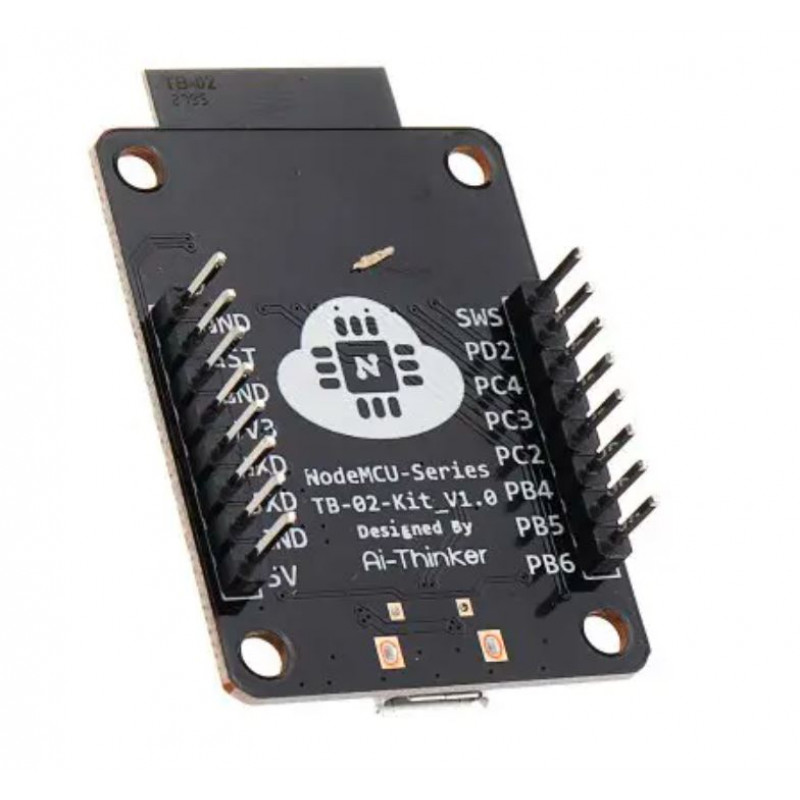

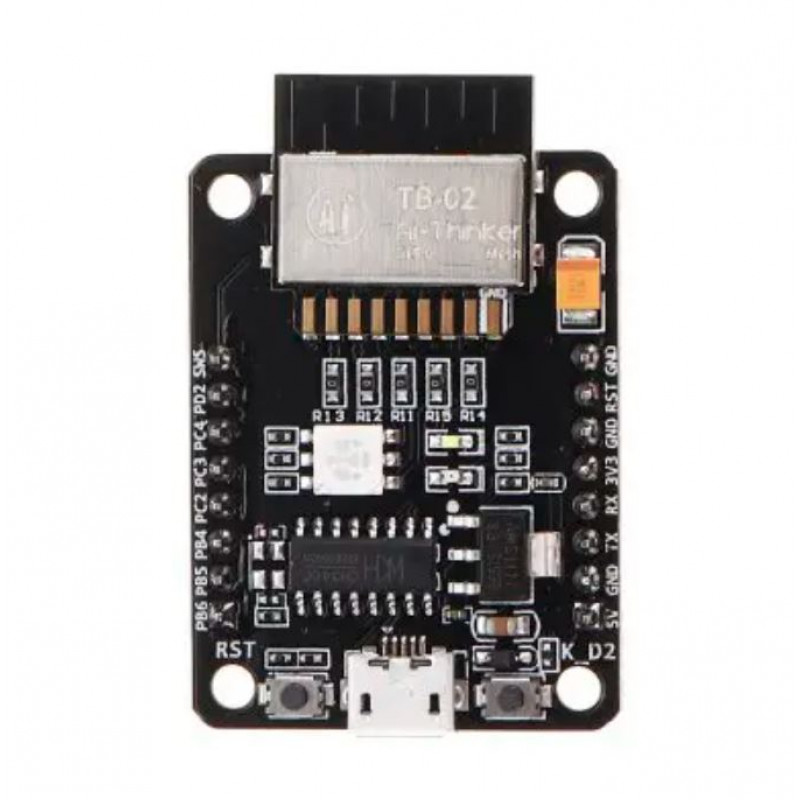

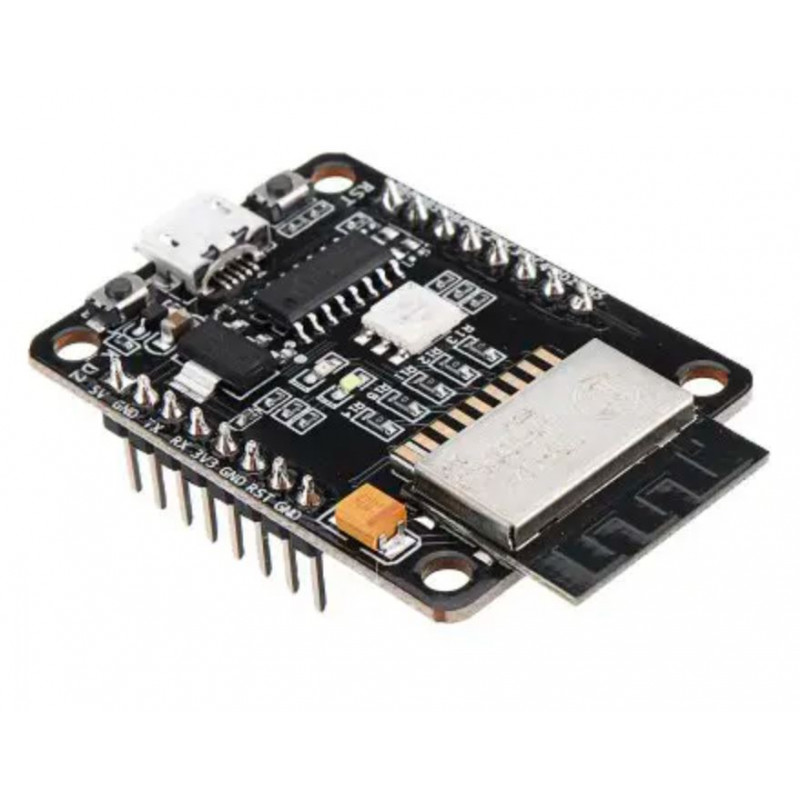

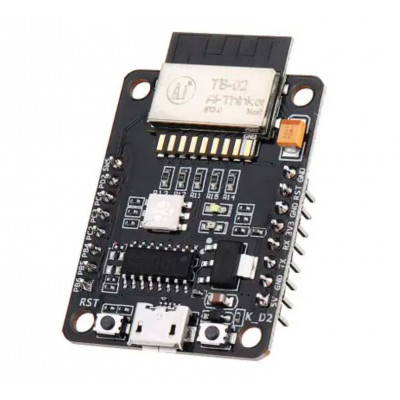

1 x Ai Thinker TB-02 Development Board
