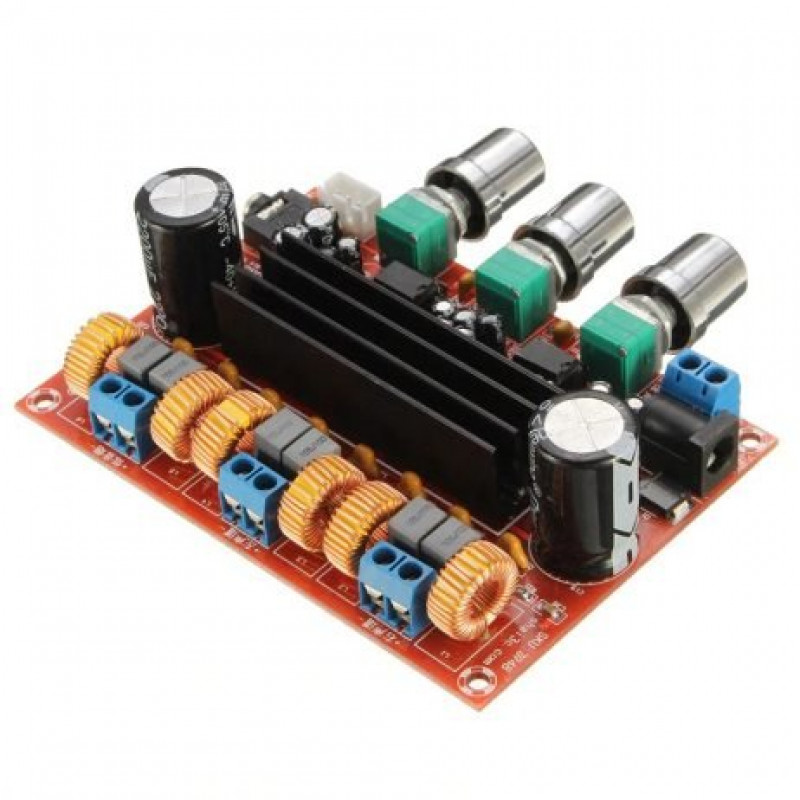

DC12-24V TPA3116D2 2.1 Channel Digital Subwoofer Power Amplifier Board adopts two high-quality TPA3116D2 digital amplifier chips. Sound quality is very good, high efficiency and amplifying power. 50W x 2+100W 2.1 channels (left/right channel and subwoofer channel), high efficiency and low-heat. Users can adjust the volume by themselves easily. It is powered by DC 12-24V, wide input voltage.


Features:

  1. Adopts two high-quality TPA3116D2 digital amplifier chips.
  2. Good sound quality, high efficient device and power amplifying feature.
  3. 50W x 2+100W 2.1 channels(left/right channel and subwoofer channel), high efficiency and low-heat.
  4. Powered by DC 12-24V, wide input voltage.
  5. User can adjust the volume by themselves easily.
  6. Applicable speaker impedance: 4-8 ohm.
  7. Just connect the power supply and loudspeaker box, enjoy pure digital music!.


Package includes:

1 x DC12-24V TPA3116D2 2.1 Channel Digital Subwoofer Power Amplifier Board



Specifications:

Supply Voltage

DC 12-24V

Main Chip

TPA3116 x 2

Channel Type

3 Channels(Left Channel, Right Channel, Subwoofer)

Output Power

50W x 2 + 100W x 1 Subwoofer

Output Match

4-8 ohm

Audio Output

Terminals

Frequency Response Range

14-100KHz

SNR

100dB

Switching Frequency

1.2MHz

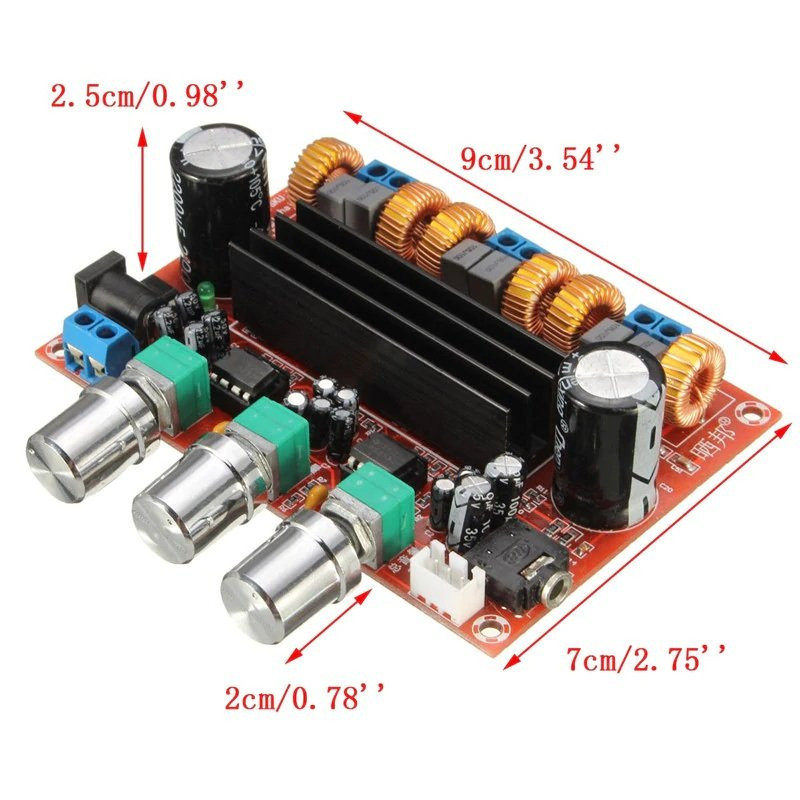

PCB Board Size (LxWxH) mm

100 x 70 x 30

Weight

113g


Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 1249.62 (Inclusive of all Taxes)
