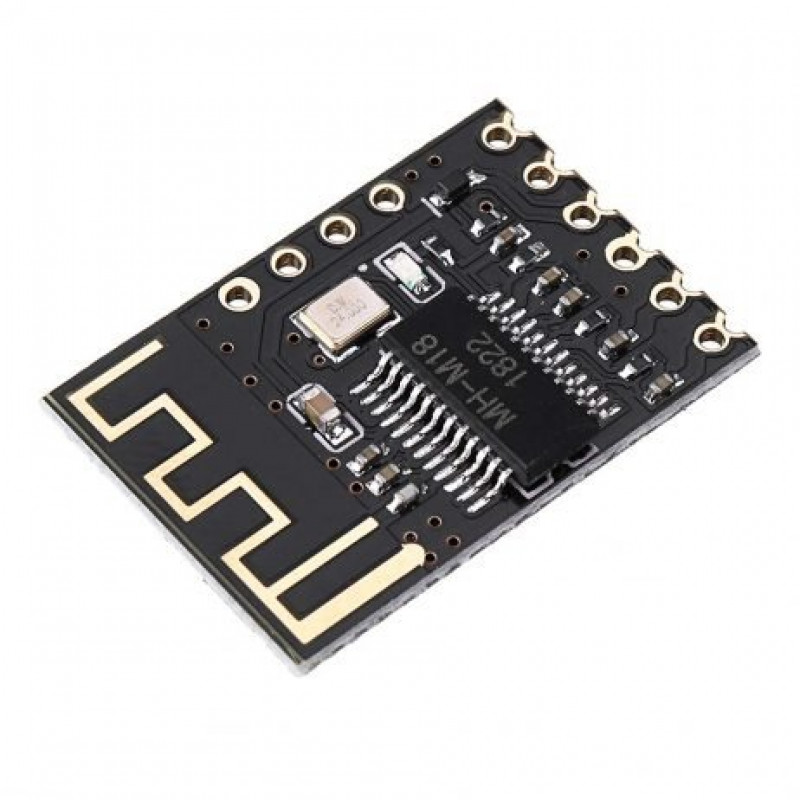

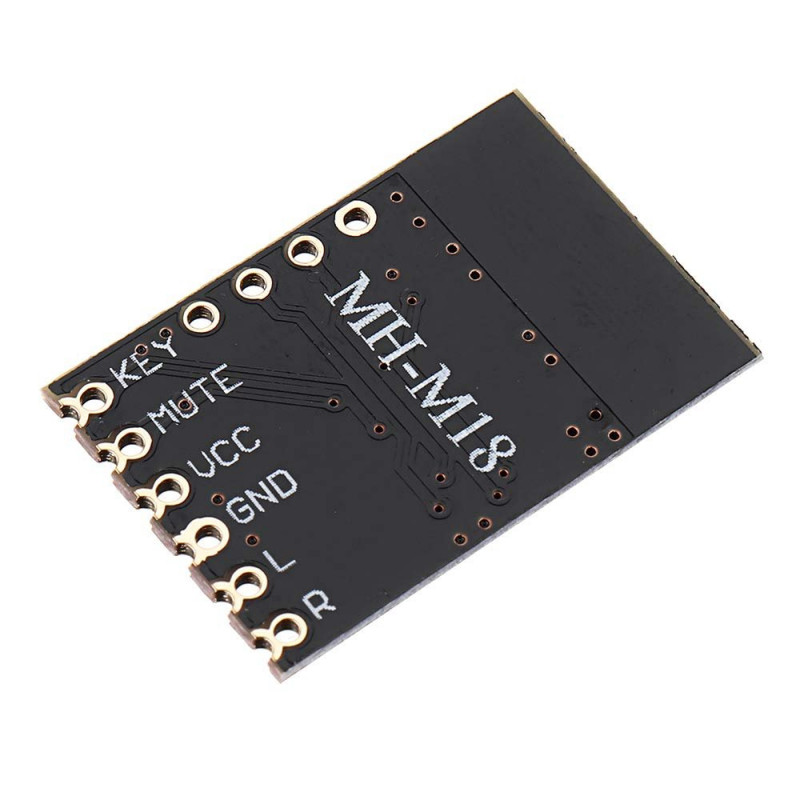

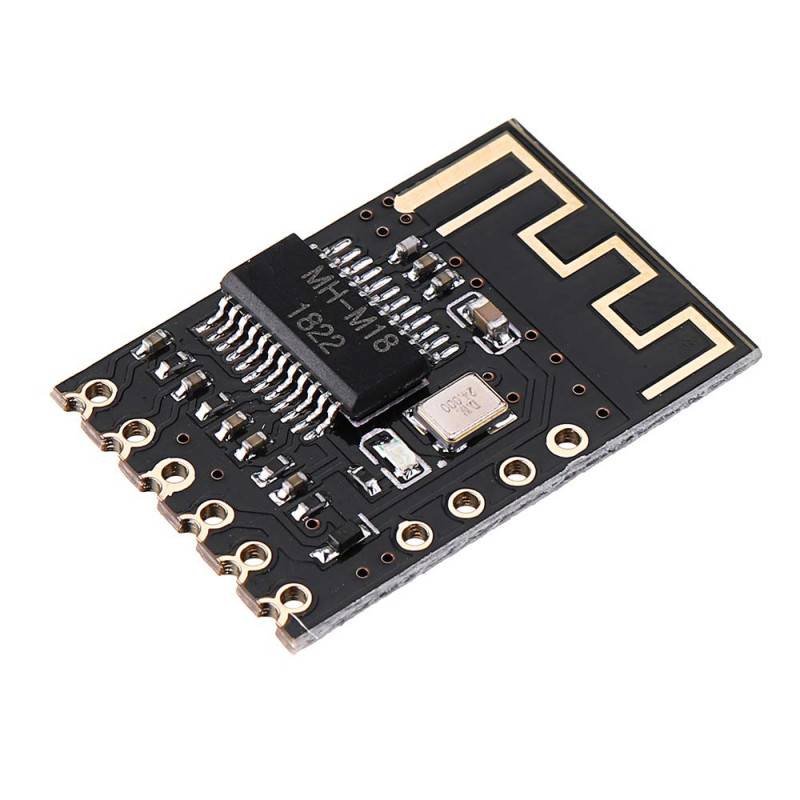

This MH-M18 Wireless Bluetooth Audio Receiver Board is a low power design solution, which supports the latest Bluetooth 4.2 transmission. Convert your old speakers into a Bluetooth equipped speaker with the help of this module. With a maximum range of 20 meters.


Applications:
  1. Conversion of old speakers into Bluetooth speaker
  2. DIY Bluetooth speakers

Note: This Product is available in two different variant of IC chip (MH-M18 and JL AS208PO1429-25C4) with same working, we will ship it randomly


Features:

  1. Support WAV/WMA/FLAC/APE/MP3 lossless decoding, stereo two-channel output
  2. Support Bluetooth Protocol HFPV1.7, A2DPV1.2, AVRCPV1.5, AVCTPV1.2, AVDTPV1.2
  3. Maximum Transmission Distance of 20 meters.
  4. Can be powered via lithium Battery.

Package Includes:

1 x MH-M18 Wireless Bluetooth Audio Receiver Board Module BLT 4.2 mp3 lossless decode



Specifications:

Model

MH-M18

Bluetooth Version

Bluetooth 4.2

Operating Voltage (VDC)

3.7 ~ 5

Max. Operating Current (mA)

20

Transmission Distance

20 meters

Operating Temperature (°C)

-40 to 85

Sensitivity

-87dbm

Length (mm)

23

Width (mm)

11

Height (mm)

2

Weight (gm)

1


Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 116.82 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

MH-M18 Wireless Bluetooth Audio Receiver Board Module BLT 4.2 mp3 lossless decode

  • Product Code: EC-6469
  • Availability: 59
  • Rs.99.00
  • (Excluding 18% GST)
