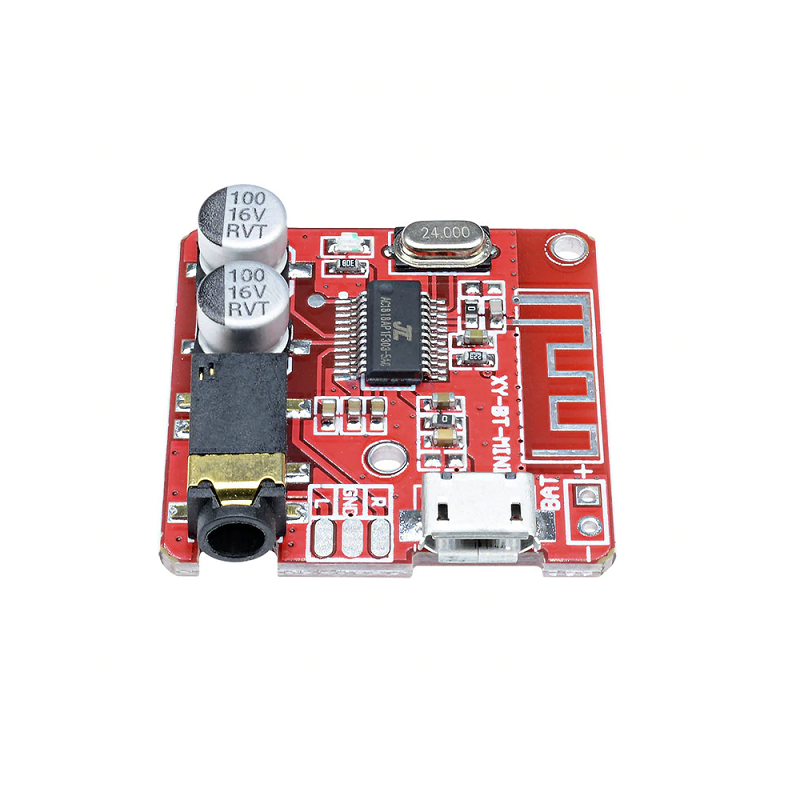

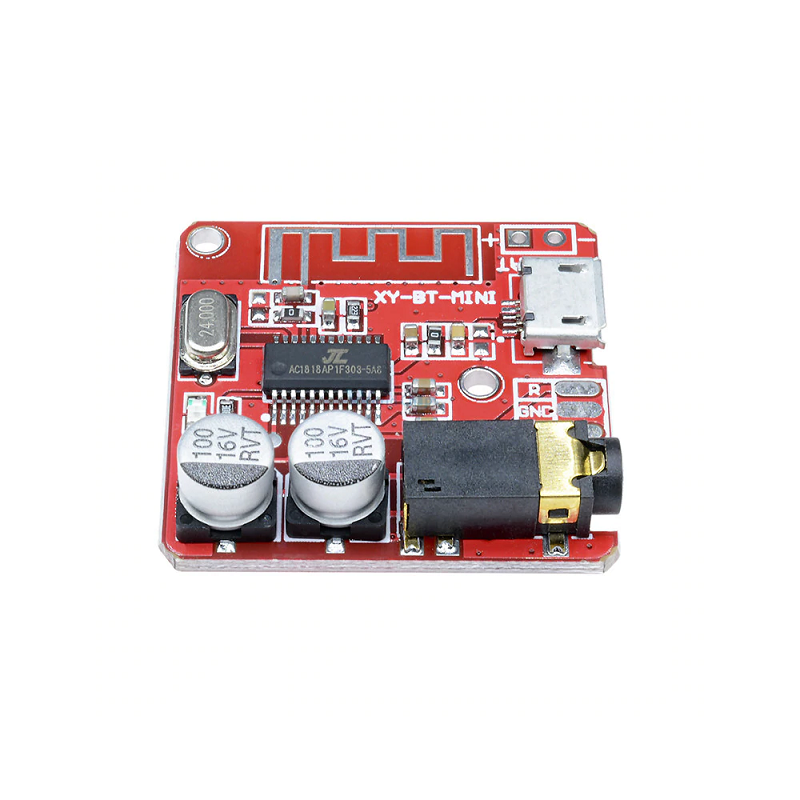

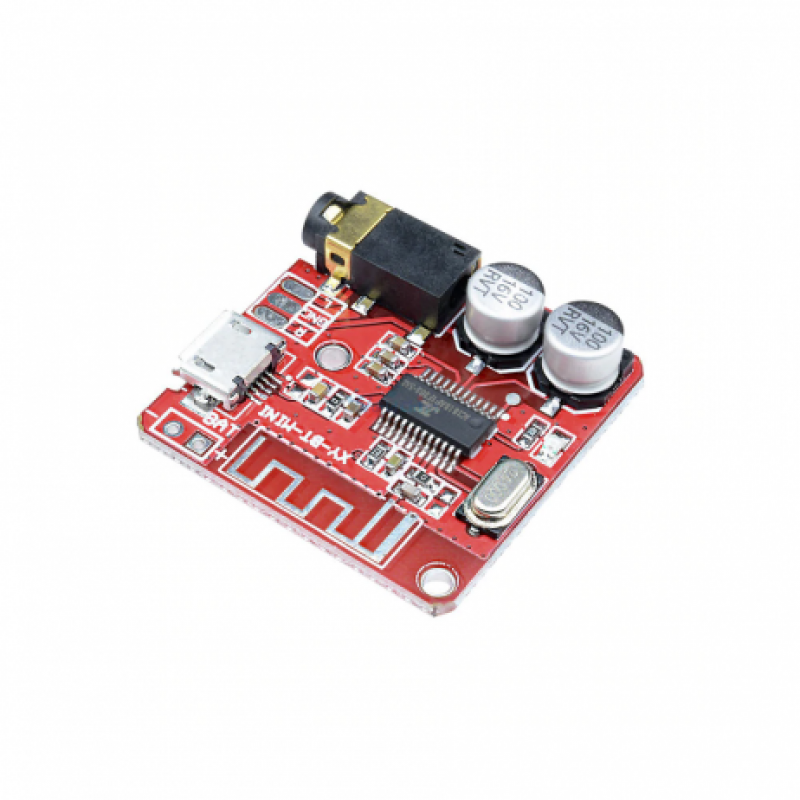

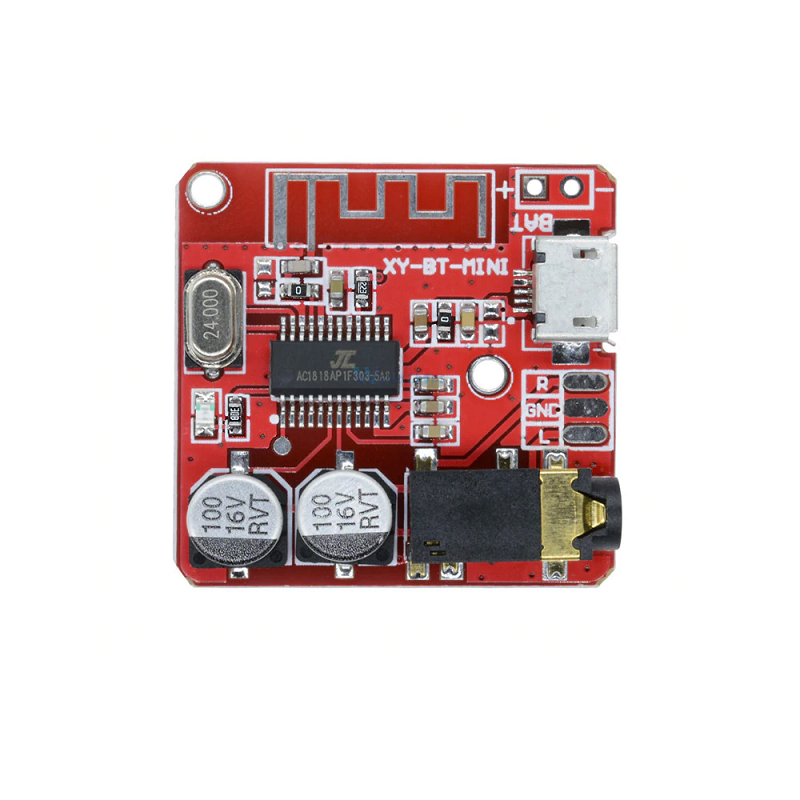

This is an Mp3 decoder board with an onboard Bluetooth 4.1 receiver. This board can be powered via a battery terminal or else from the onboard micro USB port. For the output of the board, there are solder pads for the right, left and ground wires of the speakers or a 3.5 mm audio jack is also provided to connect the speakers.


Features:

  1. USB Powered
  2. LED Indicator
  3. 3.5 mm Stereo Audio Interface
  4. 3.7 5V Supply Pad

Package Includes:

1 x MP3 Bluetooth 4.1 Decoder Board



Specifications:

Operating Voltage (VDC)

3.7 ~ 5

SNR

90dB

DNR

91dB

Support Profile

A2DP / AVCTP / AVDTP / AVRCP / HFP

Crosstalk

-86dB

Maximum Range

15m

Length (mm)

30

Width (mm)

30

Height (mm)

7

Weight (gm)

2



Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 159.3 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

MP3 Bluetooth 4.1 Decoder Board

  • Product Code: EC-6474
  • Availability: 119
  • Rs.107.00
  • (Excluding 18% GST)
