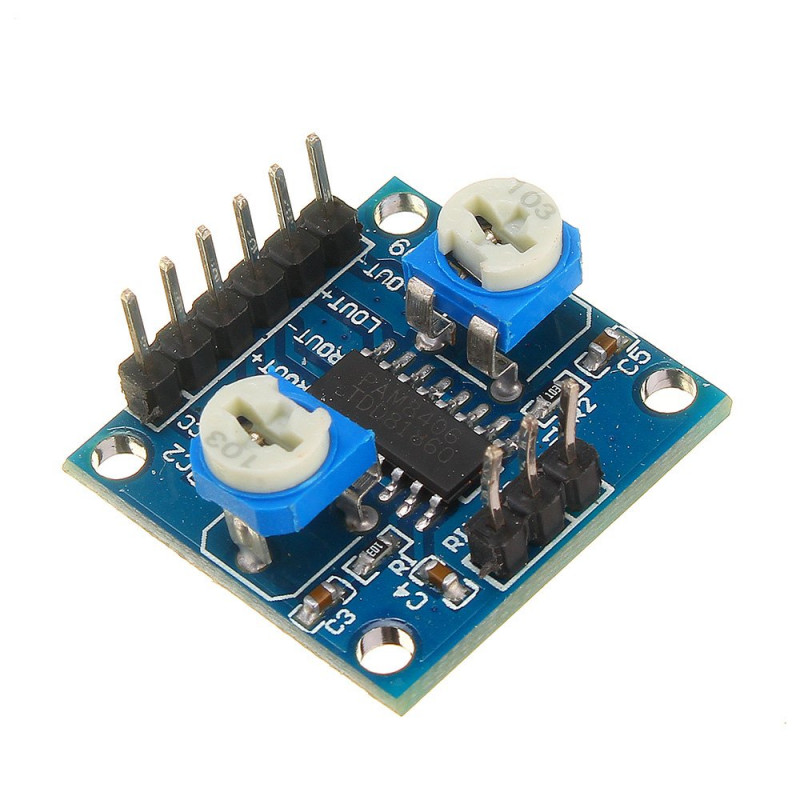

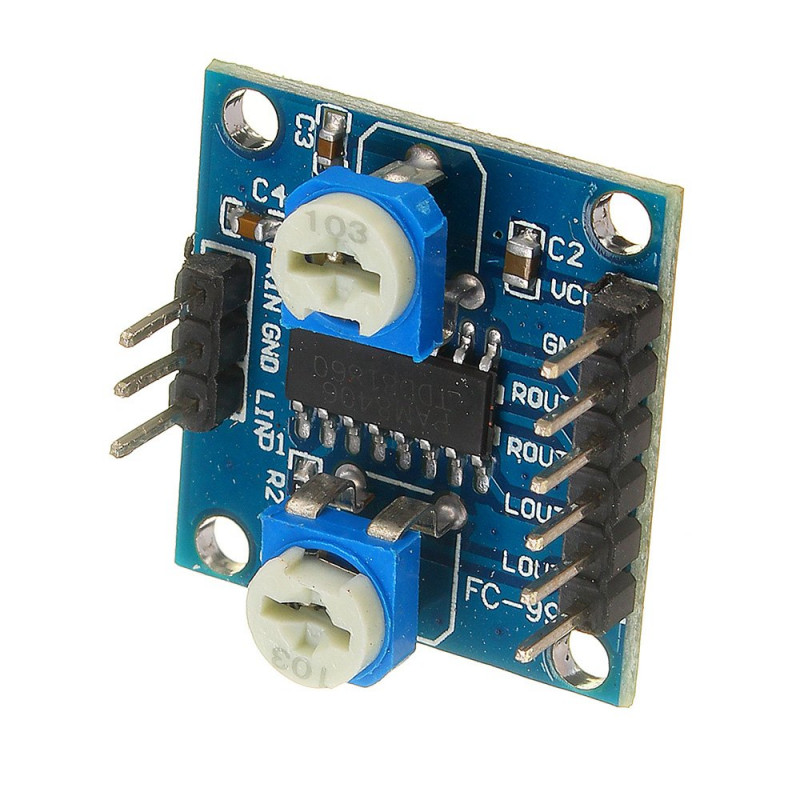

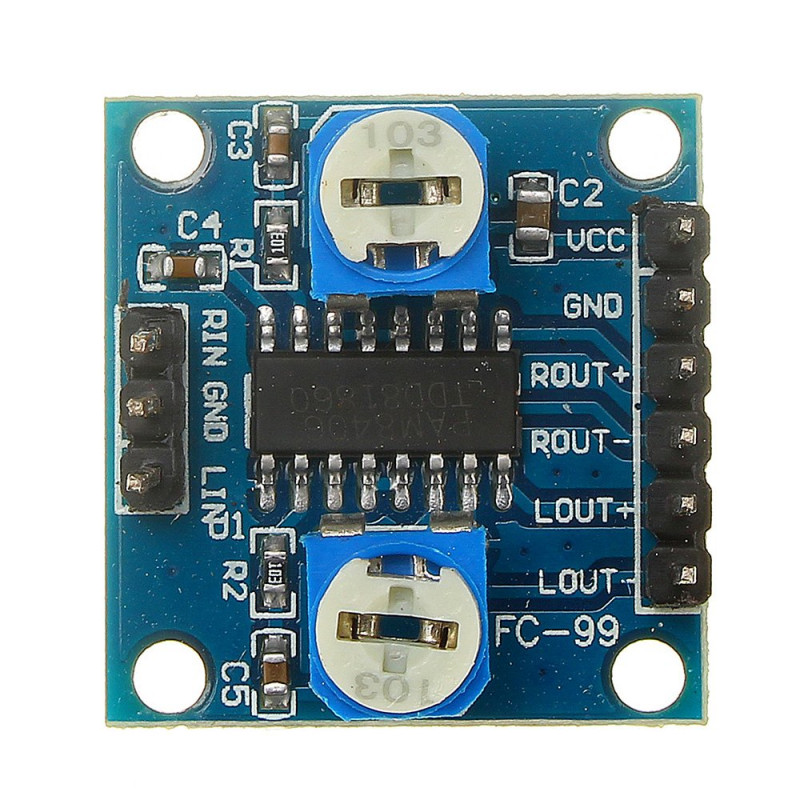

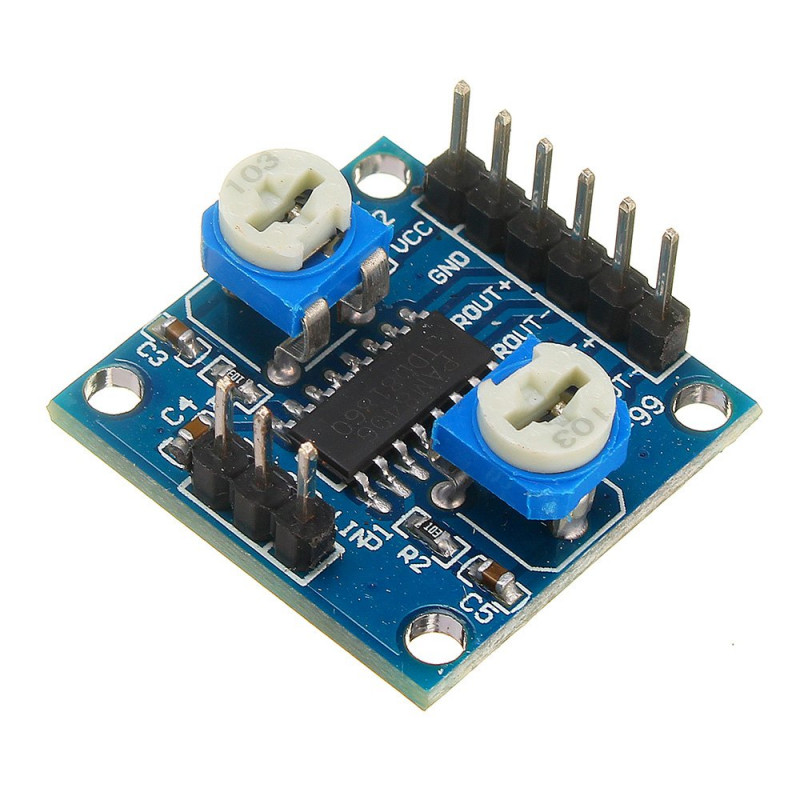

PAM8406 Digital Amplifier Module With Volume Control Potentiometer is an excellent noise suppression module. If you don't receive input audio, you will not hear any noise on your ears.


This module has a double channel stereo output. Its 5V power supply gives the output of 5W+5W power, can directly drive the 4 Omega, 8 Omega small sound box, the output power is big, the energy is full, the sound quality is good, with the volume adjustment of the right and left channel.


Features:

  1. Excellent noise suppression. in the absence of contact input audio, you will not hear any noise even put your ear close to the speaker
  2. The two-channel stereo, 5V power supply can output 5W + 5W power, directly drive 4, 8 speakers, output power, full of energy, good sound quality, with left and right channel volume adjustment.
  3. Unique non-LC filter Class-D digital power board, it can be used directly for the USB-powered from computers.
  4. Dual-panel wiring and proper solution to potential balance and channel crosstalk caused by the wiring between
  5. Ultra-miniature design, it can easily be placed in a small space inside a variety of digital products, high amplification efficiency.
  6. Solder by machine
  7. The rated working voltage 2.5-5V, limit operating voltage 5.5V
  8. The unique D type digital power plate without LC filter can be directly powered by the USB of the computer.
  9. Double panel wiring, properly solves the ground potential balance caused by wiring and inter-channel crosstalk.
  10. The ultra micro design can be easily placed in the small space of various digital products, and the amplification efficiency is super high.
  11. The whole board is welded by machine. The welding quality is comparable to that of the manual soldering iron


Package Includes:

1 x PAM8406 Digital Amplifier Module With Volume Control Potentiometer 5W x 2 Stereo



Specifications:

Operating voltage (v)

5

Length (mm)

25

Width (mm)

25

Height (mm)

12

Weight (gm)

3



Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
