The HC-06 Wireless Bluetooth Module is a Serial port Bluetooth module which having fully qualified Bluetooth V2.0+EDR (Enhanced Data Rate) 3Mbps Modulation with complete 2.4GHz radio transceiver and baseband.

It uses CSR Blue core 04-External single-chip Bluetooth with CMOS technology and frequency hopping spread spectrum technique (FHSS) to avoid interference with other devices and to have full duplex transmission. The device works on the frequency range from 2.402 GHz to 2.480GHz.


HC-06 Bluetooth Module Advantages
  1. HC-06 is the best option when short-distance wireless communication is needed. The module is used for wireless communications of less than 100 meters.
  2. The module is very easy to interface and to communicate.
  3. The module is one of the cheapest solutions for wireless communication of all types present in the market.
  4. The module consumes very less power to function and can be used on battery-operated mobile systems.
  5. The module can be interfaced with almost all controllers or processors as it uses the UART interface.

Applications
  1. Hobby projects
  2. Engineering applications
  3. Robotics
  4. Mobile Phone Accessories
  5. Servers
  6. Computer Peripherals
  7. Sports and Leisure Equipment
  8. USB Dongles


Features:

  1. Works with any USB Bluetooth adapters.
  2. Default Baud Rate: 9600,8,1,n.
  3. Built-in antenna.
  4. Coverage up to 30ft.


Package Includes:

1 xHC-06 Wireless Bluetooth Module without Baseplate


Additional information

Model

HC-06 (without Baseplate)

Operating Voltage

3.3V

Operating Current

40mA

Bluetooth version

V2.0+EDR

Default Baud Rate

9600,8,1,n.

Signal coverage

30ft

Operating temperature range

-20C to +55C

Length (mm)

27

Width (mm)

13.20

Height (mm)

2

Weight (gm)

5


Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 1209.5 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

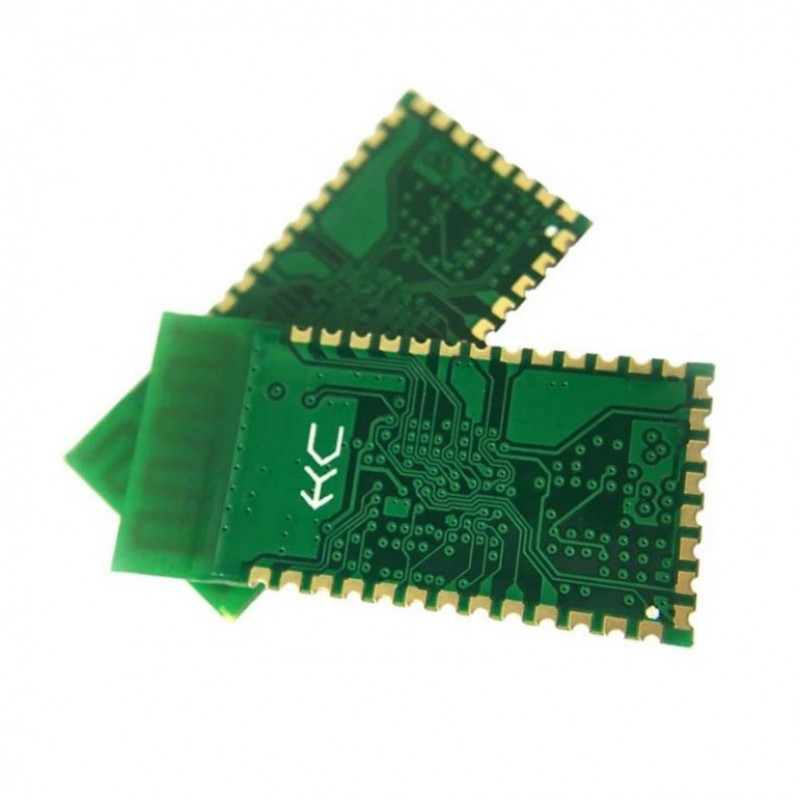

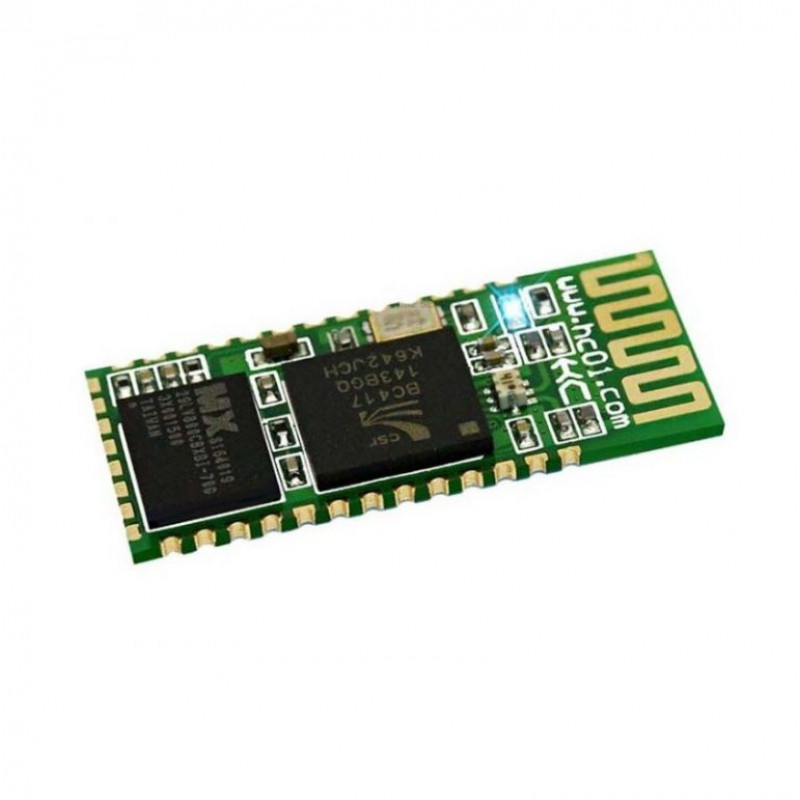

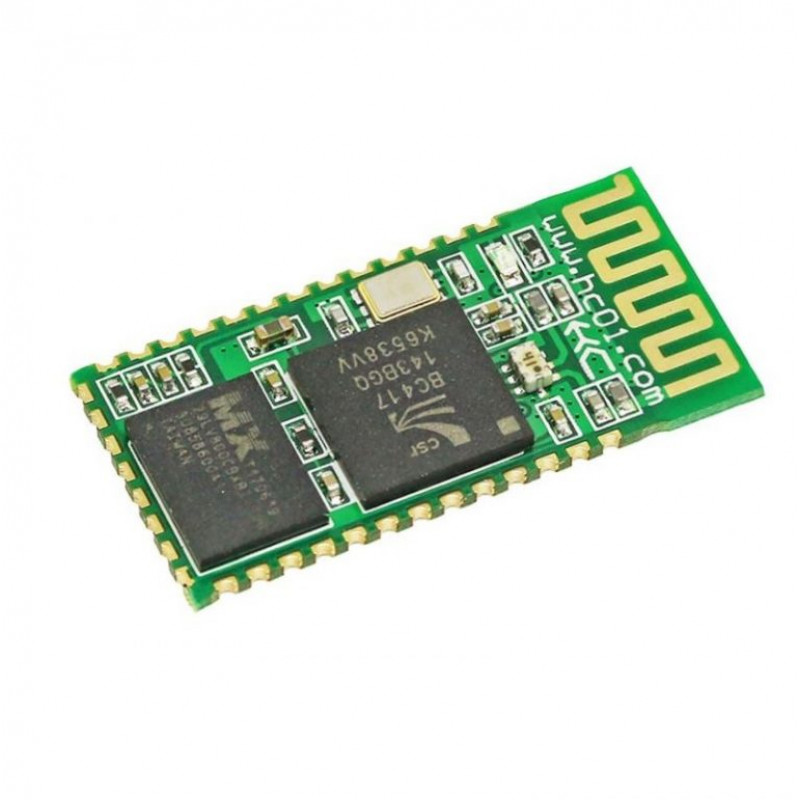

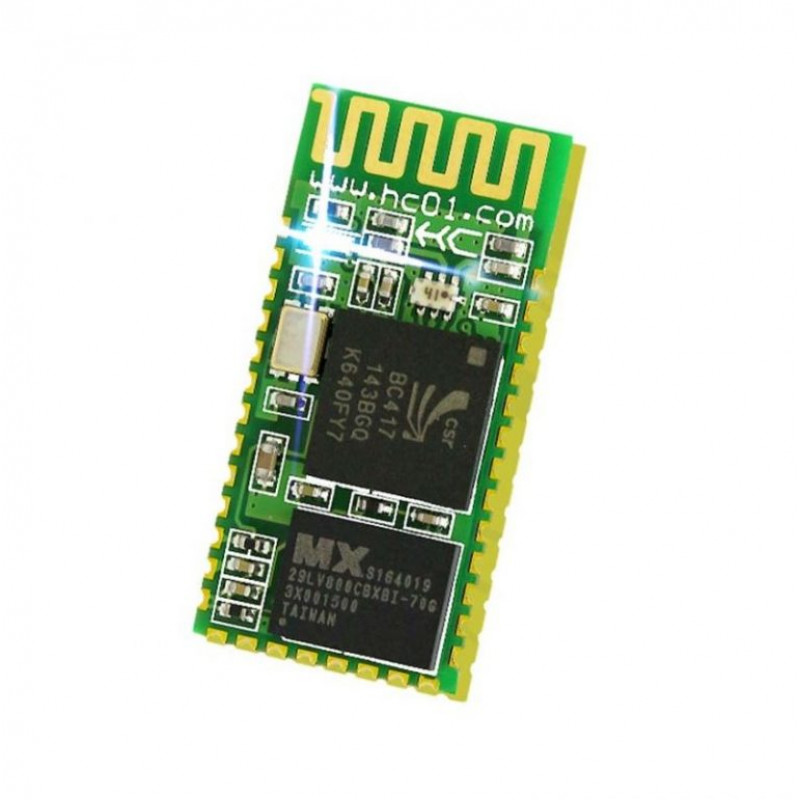

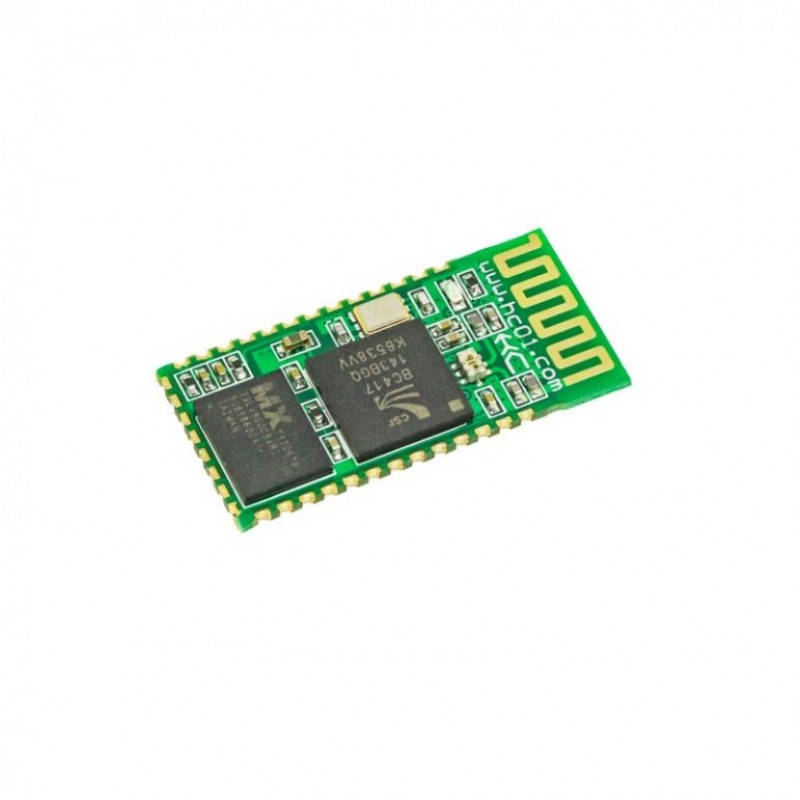

HC-06 Wireless Bluetooth Module without Baseplate

  • Product Code: EC-4985
  • Availability: Out Of Stock
  • Rs.1025.00
  • (Excluding 18% GST)
