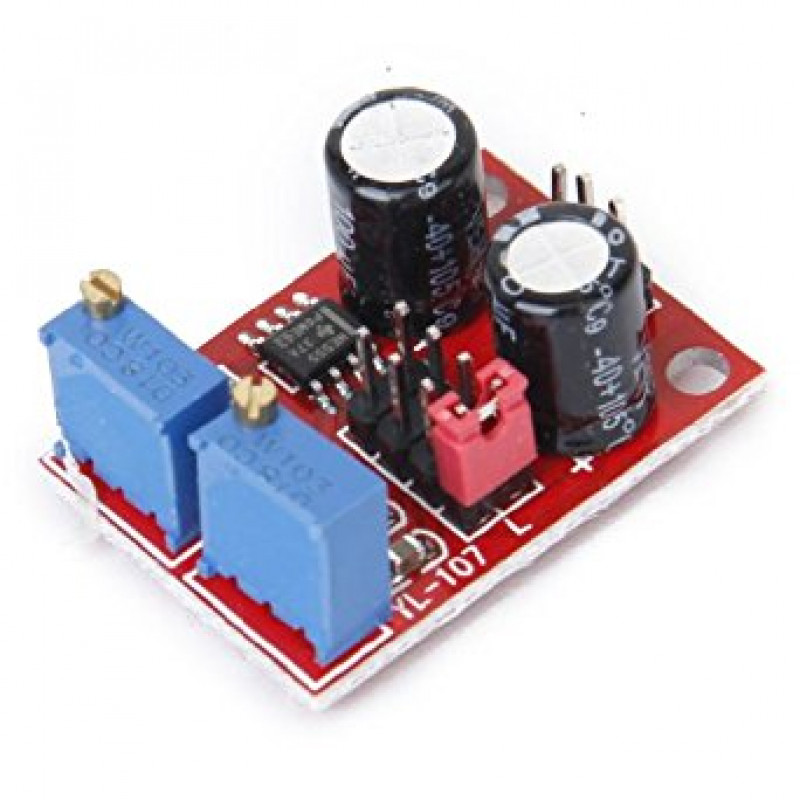

  • NE555 Frquency Adjustable Pulse Generator Module

Description:-

NE555 Frequency Adjustable Pulse generator Module utilizes the NE555 timer IC to generate pulses from about 4Hz to 1.3Khz, which can be used for experimental development, or driving a stepper motor, it would be also a good choice for users learning& experiencing the analog RC circuits.


Features:-

  • Size: 31mm * 22mm;
  • Main chip: NE555;
  • Input Voltage: 5V-15VDC. when power supply is 5V , the output current can be 15MA around;when 12V power supply, the output current can 35MA around;
  • Input current: >=100MA
  • Output amplitude: 4.2V V-PP to 11.4V V-PP. (Different input voltage, the output amplitude will be different)
  • Maximum output current: >=15MA (5V power supply, V-PP greater than 50%),                                                                   >=35MA (12V power supply, V-PP greater than 50%)
  • Output with LED indication(low level ,LED will on; high level,LED will off;low frequency, the LED flashes);
  • The output frequency range is selectable:
                LF file: 1Hz ~ 50Hz
            IF file: 50Hz ~ 1kHz
            High-frequency file: 1KHz ~ 10kHz
            HF file: 10kHz ~ 200kHz

  • The output duty cycle can fine-tune;duty cycle and frequency is not separately adjustable;adjusting the duty cycle will change the frequency;


Applications:-

  • As a square wave signal generator,generates a square wave signal used for experimental development.
  • Used to drive a stepper motor for generating a square wave drive signal.
  • Generate adjustable pulse for MCU.
  • Generate adjustable pulse,to control circuitry associated.

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 64.9 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

NE555 Frquency Adjustable Pulse Generator Module

  • Product Code: EC-2112
  • Availability: 379
  • Rs.55.00
  • (Excluding 18% GST)
