USB is a de facto connector widely used in many consumer devices for power or data interface. It has become so popular that you can find compatible cables easily.

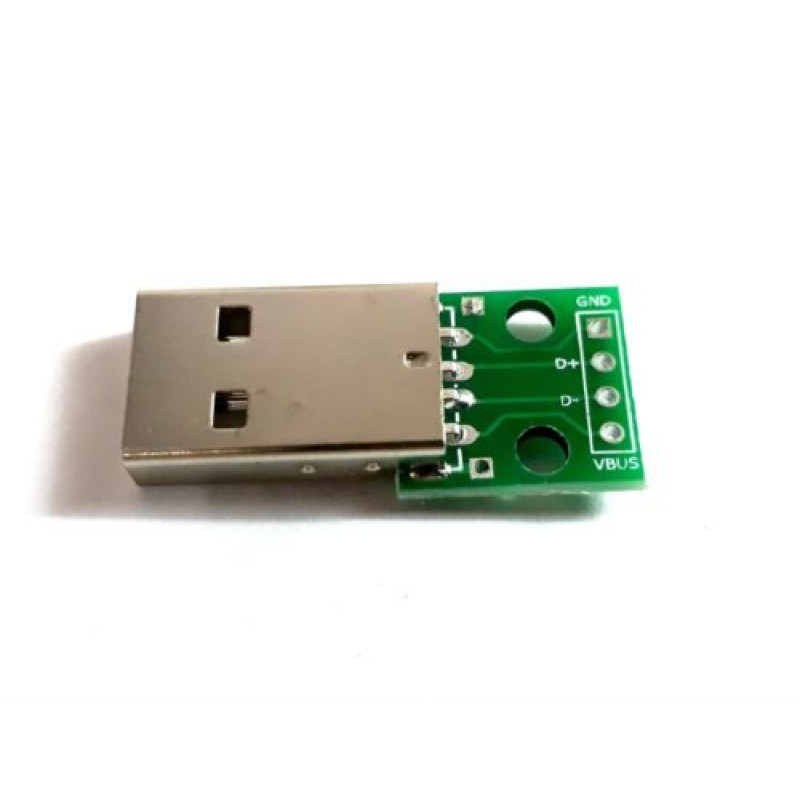

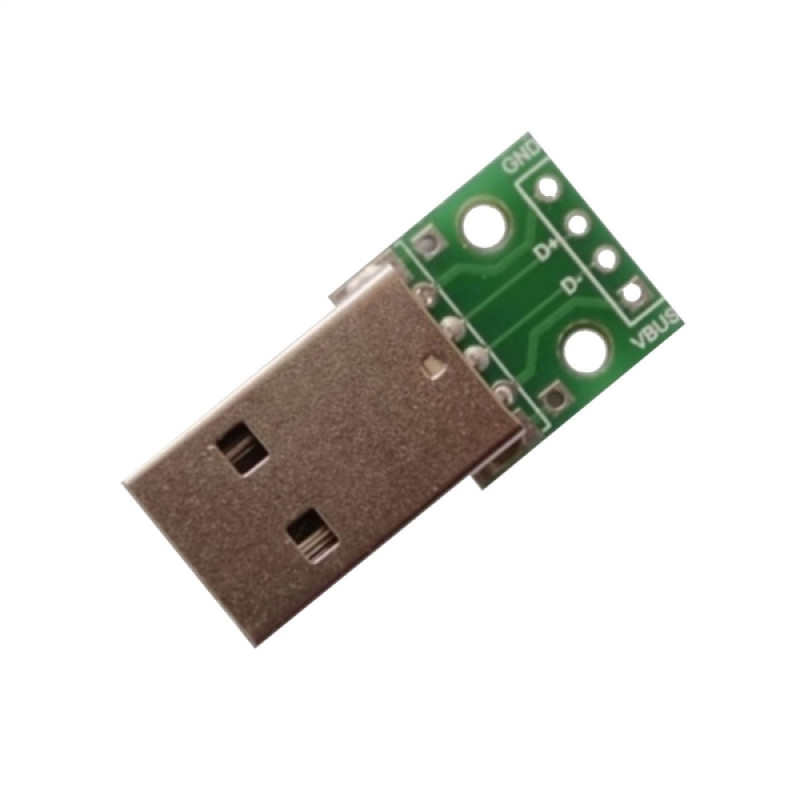

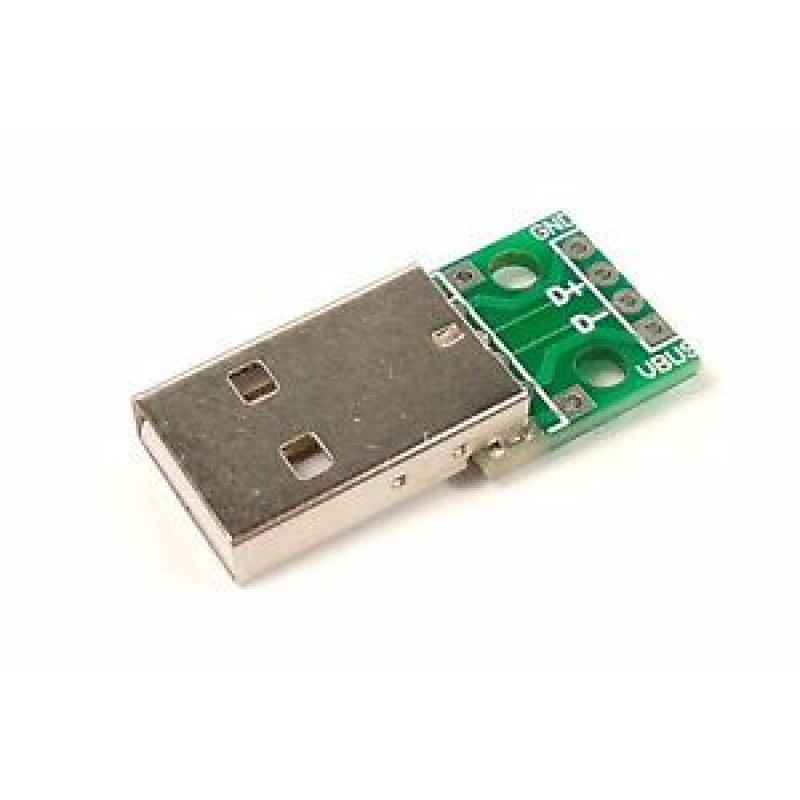

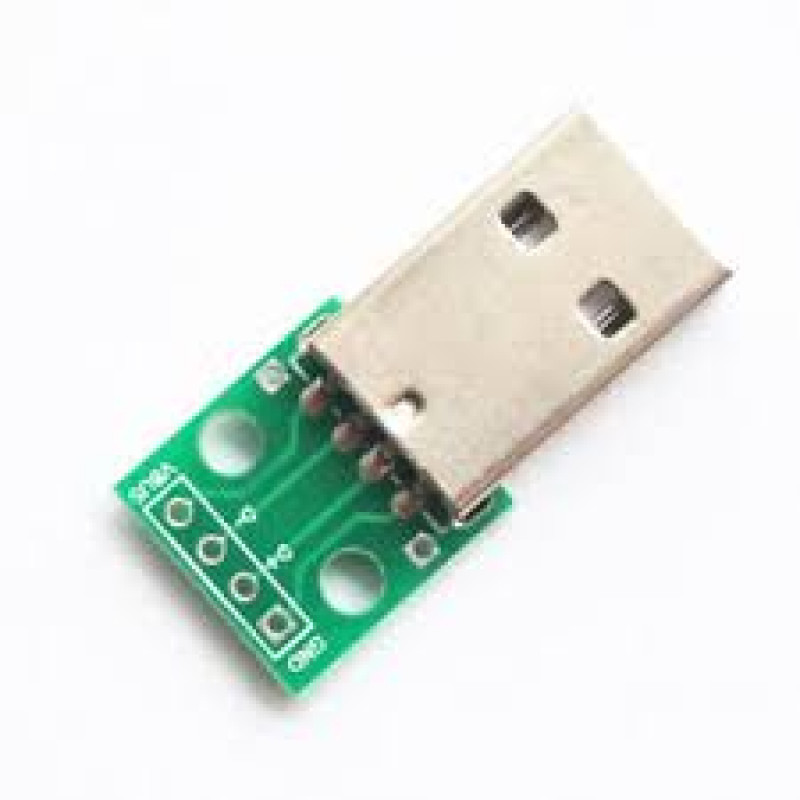

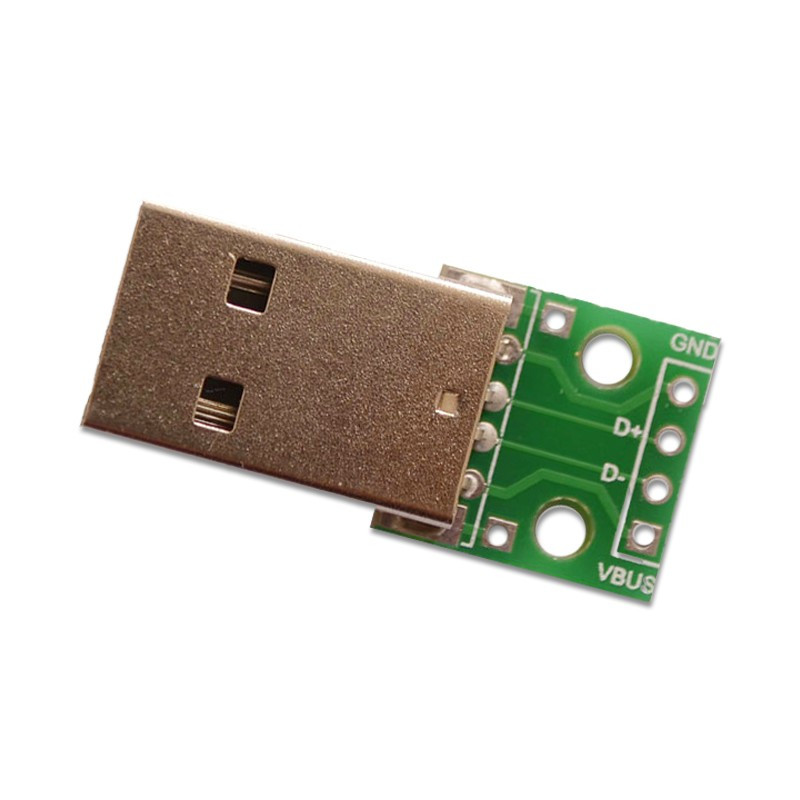

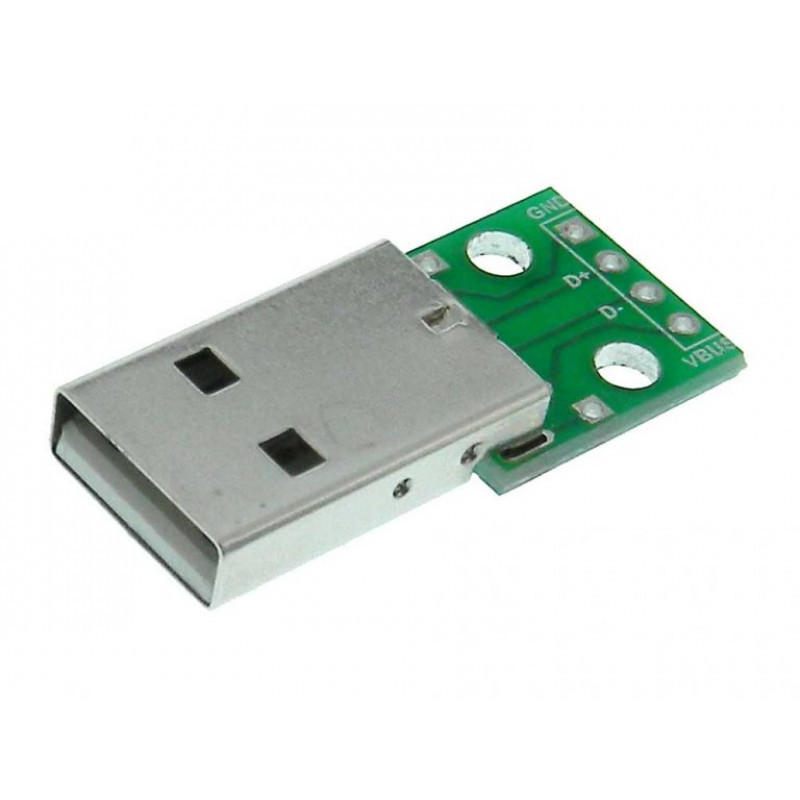

If you want to add a standard type A USB male plug to your project, this breakout board is for you. As simple as it is, this board breaks out all 4 pins of the USB connector into more manageable 2.54mm pitch soldering holes. You can then solder a 4-pin header to plug into a breadboard or solder wires directly to the holes.
The board measures 15mm x 15mm not including the connector. All connections are a label on the PCB. There are two M2.5 mounting holes for you to mount this breakout board.
Package Includes:
1 x USB Type A Breakout Board Male
Additional information
| PCB Size ( L x W ) mm | 15 x 15 |
| USB Type | Type-A |
| Weight (gm) | 3 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 69.62 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
USB Type A Breakout Board – Male
- Product Code: EC-5003
- Availability: 43
-
Rs.23.00
- (Excluding 18% GST)
