The W25Q32JV (32M-bit) Serial Flash memory provides a storage solution for systems with limited space, pins, and power. The 25Q series offers flexibility and performance well beyond ordinary Serial Flash devices. They are ideal for code shadowing to RAM, executing code directly from Dual/Quad SPI (XIP), and storing voice, text, and data. The device operates on a single 2.7V to 3.6V power supply with 1A for power-down. All devices are offered in space-saving packages
Features:
- Support SPI interface
- Provide STM32 test code
- Using serial Nor flash external extender memory chip W25Q32
Package Includes:

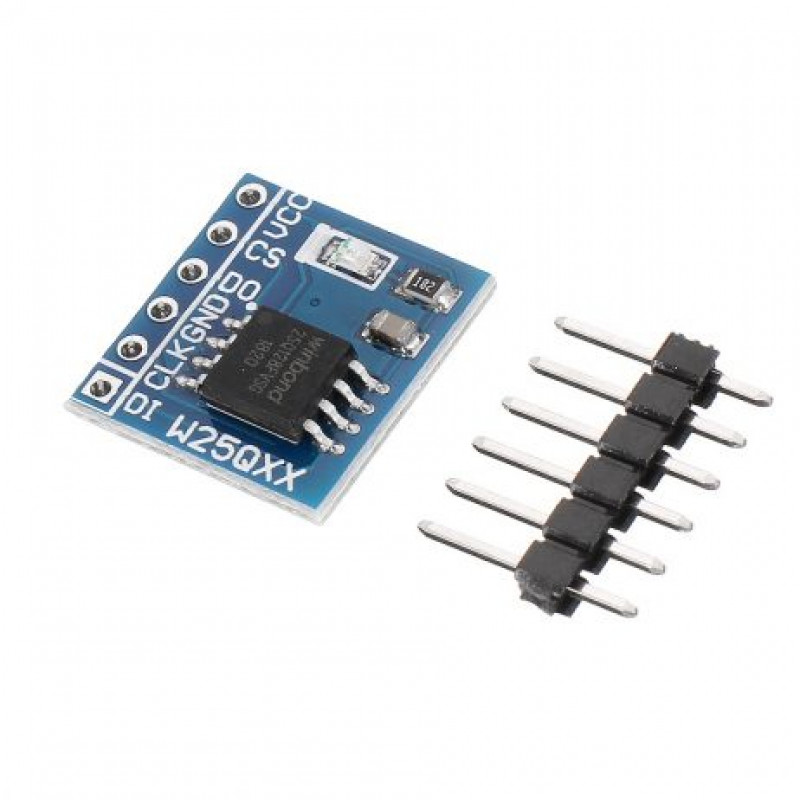

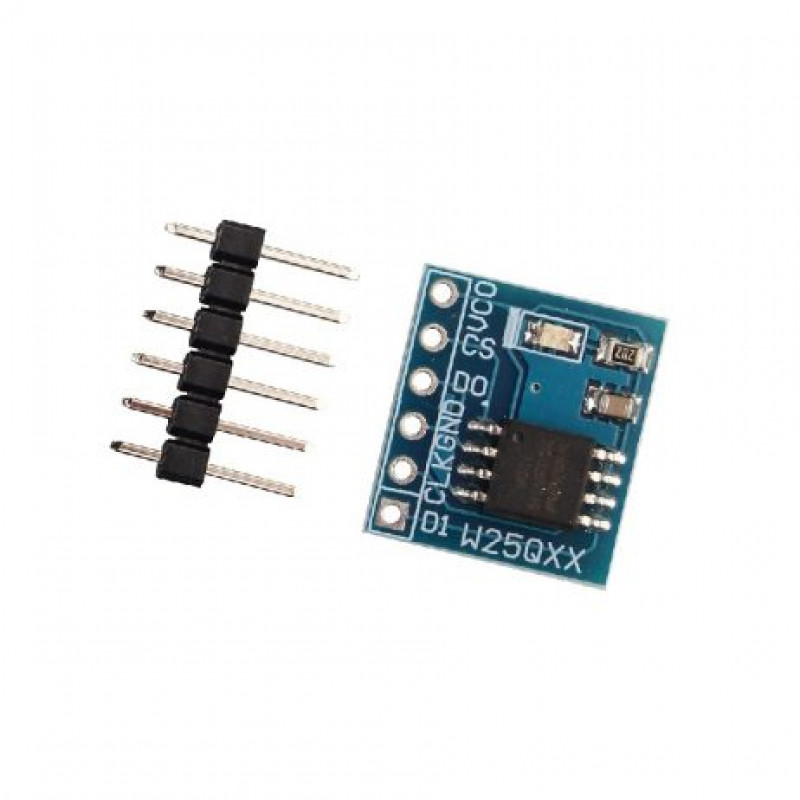

1 x W25Q32 32Mbit 4Mbyte Capacity Flash Storage Module
Additional information
| Model | W25Q32 |
| Capacity | 32M-bit / 4M-byte |
| Clock frequency | less than 104MHz |
| Working voltage | 2.7~3.6V |

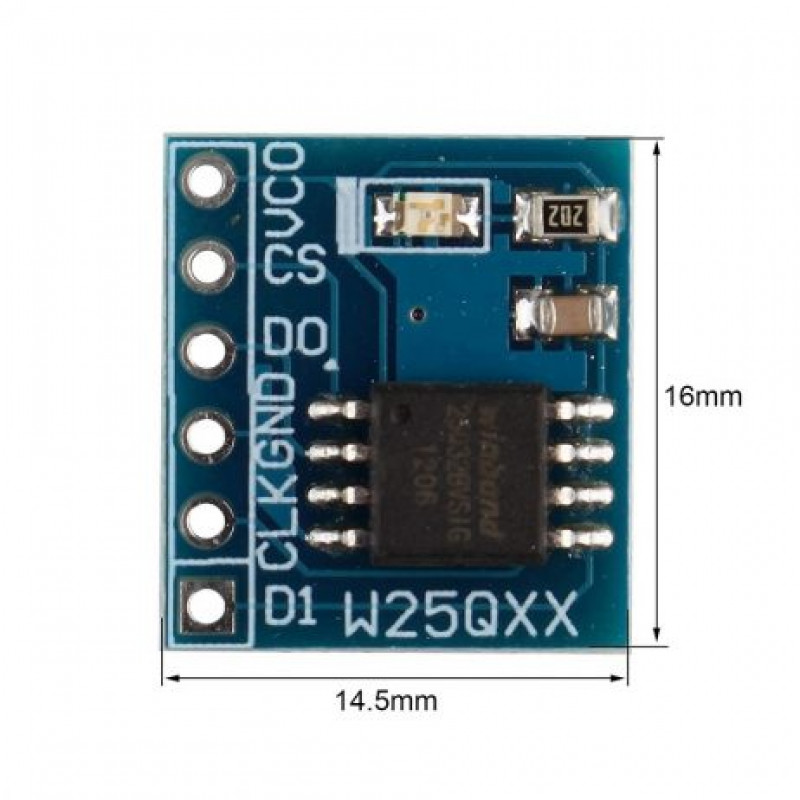

| Module size | 14mm x 15mm |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 96.76 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
W25Q32 32Mbit 4Mbyte Capacity Flash Storage Module
- Product Code: EC-5001
- Availability: 92
-
Rs.61.00
- (Excluding 18% GST)
