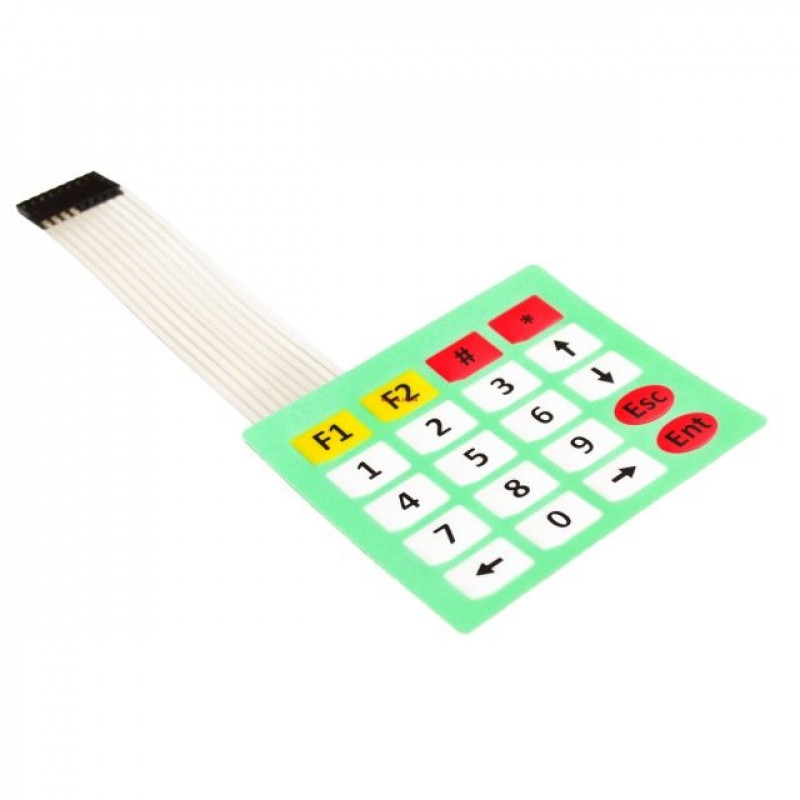

This 4x5 Matrix Array 20 Key Membrane Switch Keypad Keyboard is a high-quality soft-touch feeling button keypad with 100 million life-stroke lifespans and good resistance to environmental conditions.
This DC 12V 4x5 Key Matrix Membrane Switch Keypad is a high-quality product at a very low cost for your application needs.
This 20-button keypad provides a useful human interface component for microcontroller projects. Convenient adhesive backing provides a simple way to mount the keypad in a variety of applications.

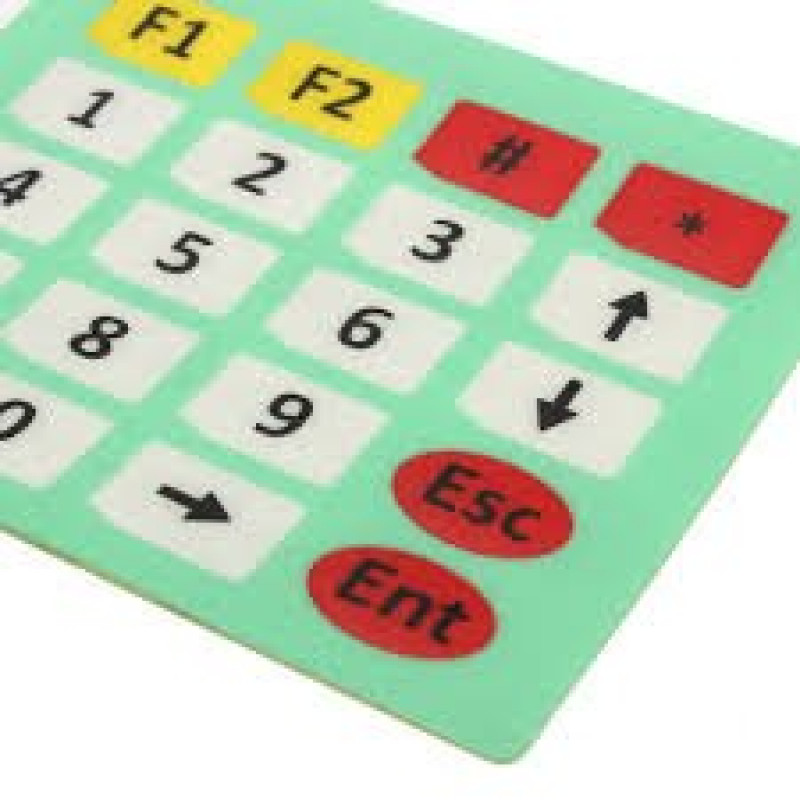

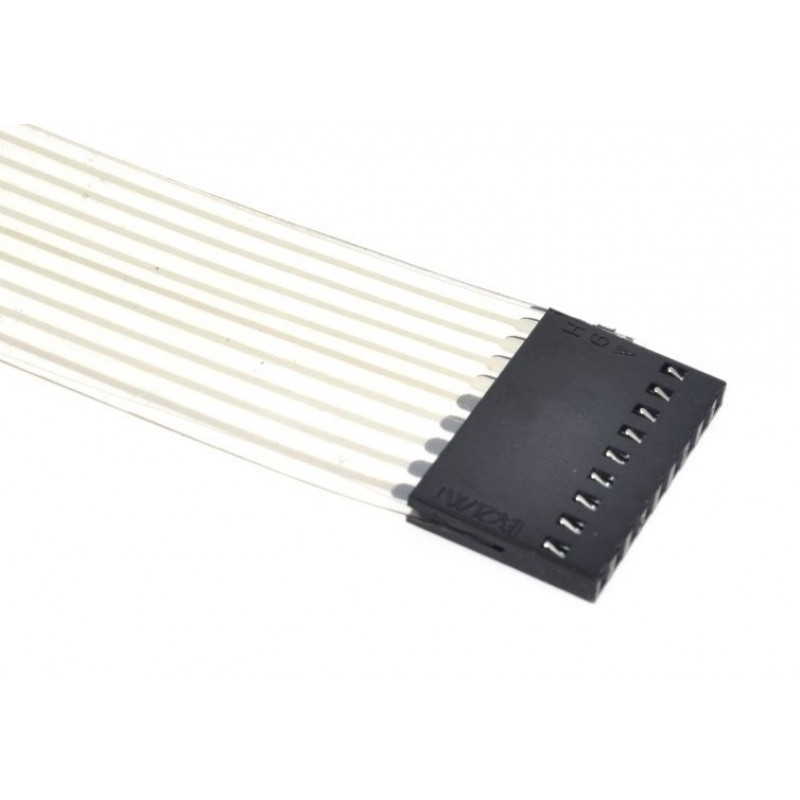

The Keypad 4x5 features a total of 20 buttons in Matrix form. This is a membrane keypad with no moving parts. A female 9-pin berg connector is required for interfacing it with your microcontroller circuits.
Features:
- Ultra-thin design & adhesive backing provides easy integration to any project
- Excellent price-performance ratio
- Easy communication with any microcontroller
- 5 pins 2.54mm pitch connector,4x5 type 20 keys.

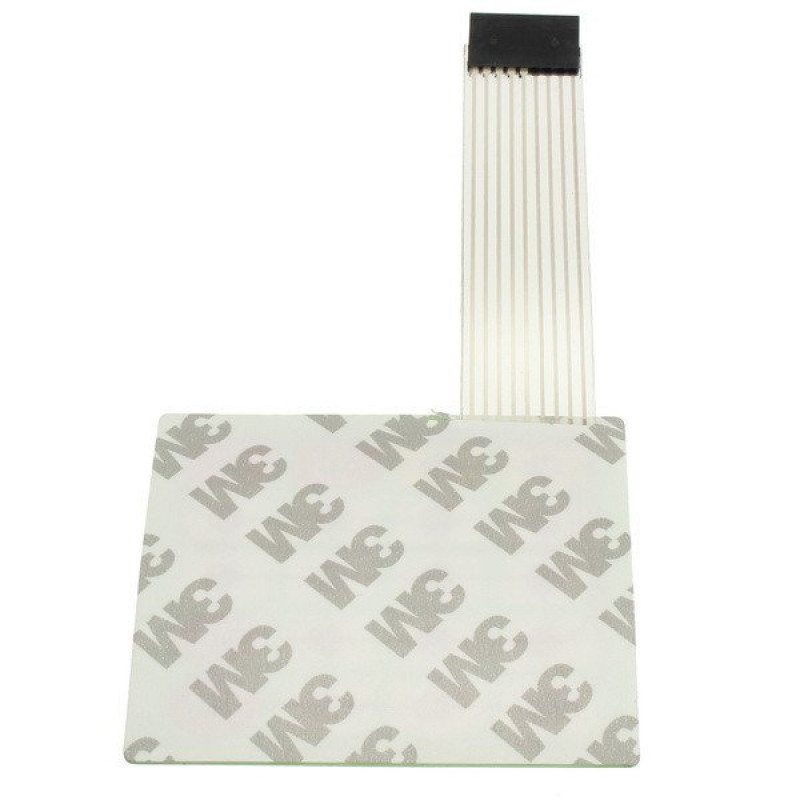

- The sticker can peel off for adhesive mounting.
- Used widely in industrial and home electronic equipment, instrument, etc.
- This allows a microcontroller to scan the 9 output pins to see which of the 20 buttons is being pressed.
Package Includes:
1 x 4x5 Matrix Array 20 Key Membrane Switch Keypad.
Specifications:
| Voltage(V) | DC 35V |
| Operating Current (A) | 100mA |
| Contact Resistance | 100mΩ (Max.) |
| Insulation Resistance (MΩ) | 100 |
| Dielectric Strength | 250VRms |
| Operating Temperature Range(°C) | -40 to 80 |
| Storage condition(°C) | -40 to 80 |
| Length (mm) | 180 |
| Width (mm) | 85 |
| Height (mm) | 1 |
| Weight (gm) | 8 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 105.02 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
4x5 Matrix Array 20 Key Membrane Switch Keypad Keyboard For Arduino
- Product Code: EC-6695
- Availability: Out Of Stock
-
Rs.89.00
- (Excluding 18% GST)
