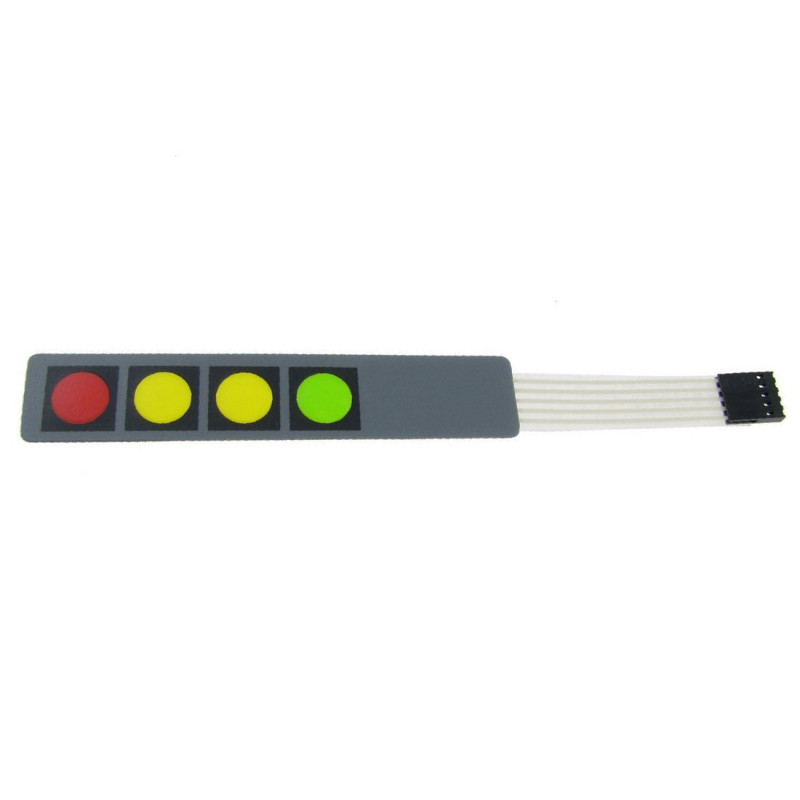

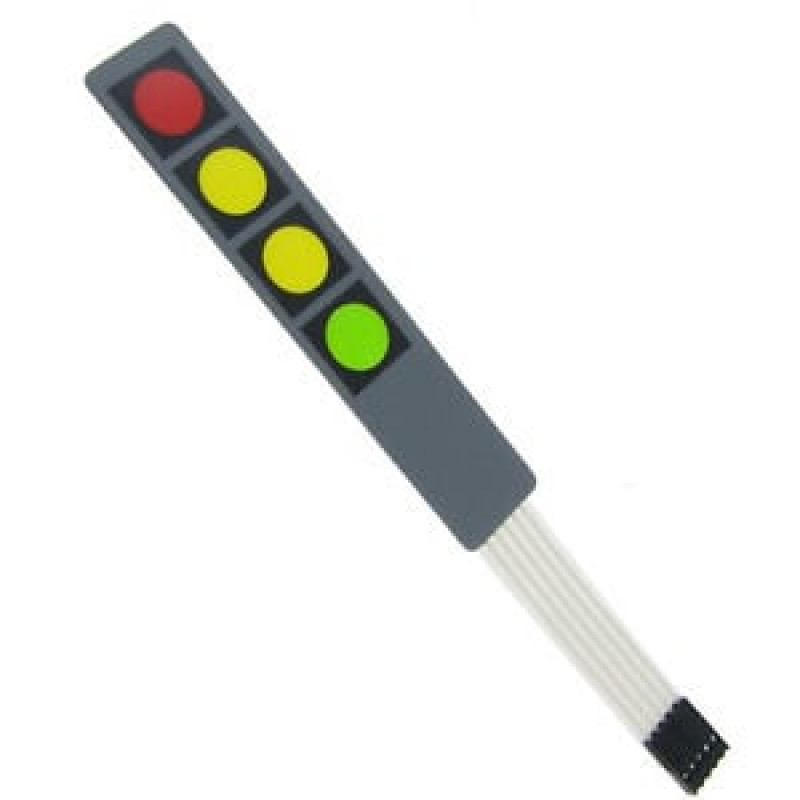

This DC 12V 4x1 Key Matrix Membrane Switch Keypad is a high-quality product at very low cost for your application needs.
This 4-button keypad provides a useful human interface component for microcontroller projects. Convenient adhesive backing provides a simple way to mount the keypad in a variety of applications.
The Keypad 4x1 features a total of 4 buttons in Matrix form. This is a membrane keypad with no moving parts. A female 5-pin berg connector is required for interfacing it with your microcontroller circuits.
Features :
- Ultra-thin design & adhesive backing provides easy integration to any project
- Excellent price-performance ratio
- Easy communication with any microcontroller
- 5 pins 2.54mm pitch connector,41 type 4 keys.
- The sticker can peel off for adhesive mounting.
- Used widely in industrial and home electronic equipment, instrument, etc.
- This allows a microcontroller to scan the 5 output pins to see which of the 4 buttons is being pressed.
Package Includes:
1 x DC 12V 4x1 Key Matrix Membrane Switch Keypad.
Specifications:
| Voltage(V) | 12 |
| Operating Current (A) | 0.03 |
| Contact Resistance | >100Ω |
| Operating Temperature Range(°C) | -40 to 85 |
| Storage condition(°C) | -40 to 80 |

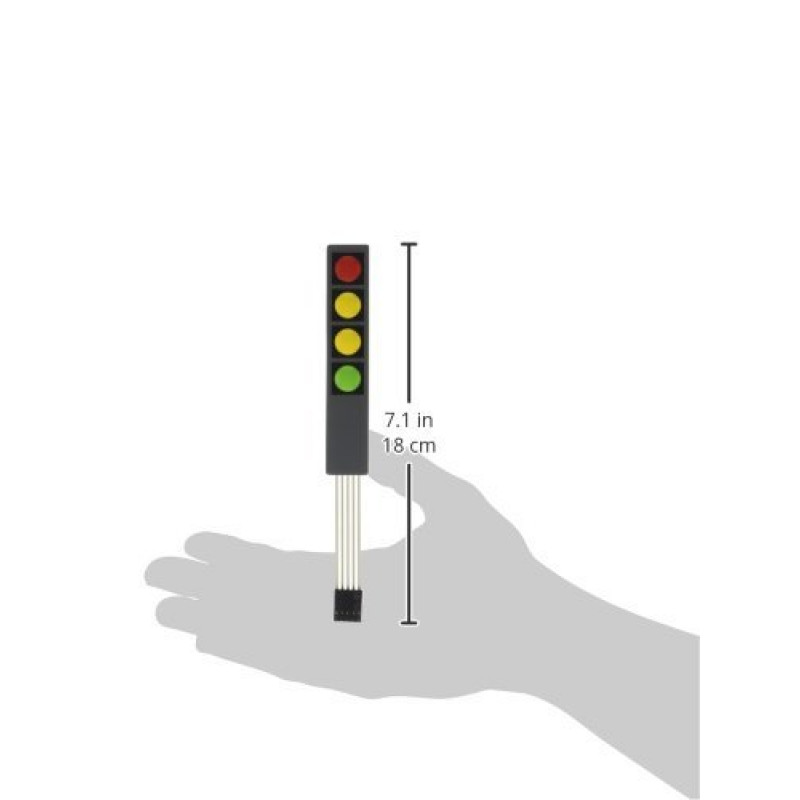

| Length (mm) | 180 |
| Width (mm) | 20 |
| Height (mm) | 1 |
| Weight (gm) | 1 (approx) |
| Cable Length (cm) | 5 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
* Product Images are shown for illustrative purposes only and may differ from actual product.
DC 12V 4x1 Key Matrix Membrane Switch Keypad
- Product Code: EC-6699
- Availability: 10
-
Rs.112.10
