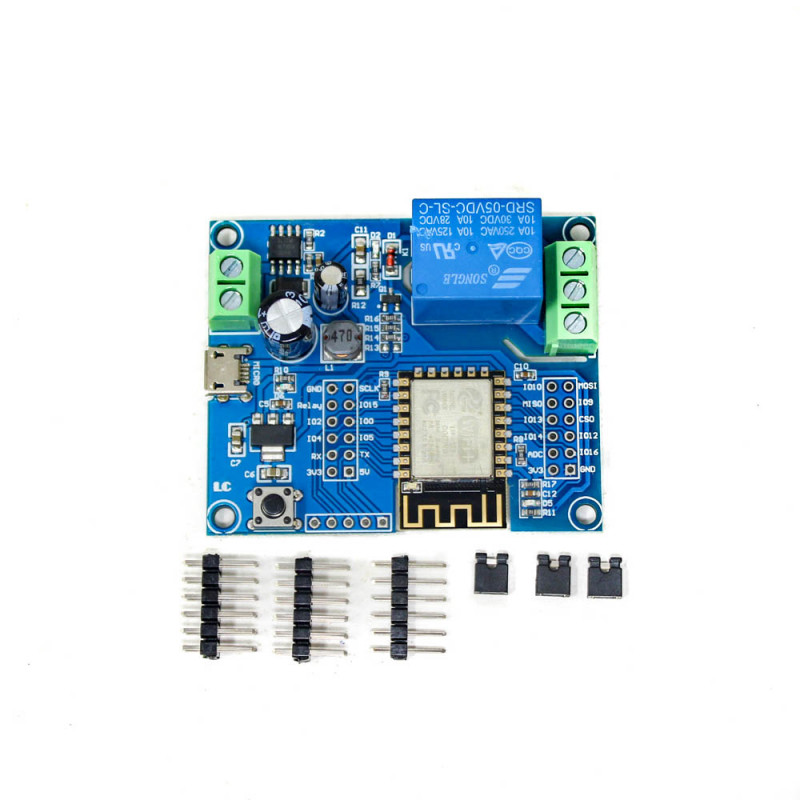

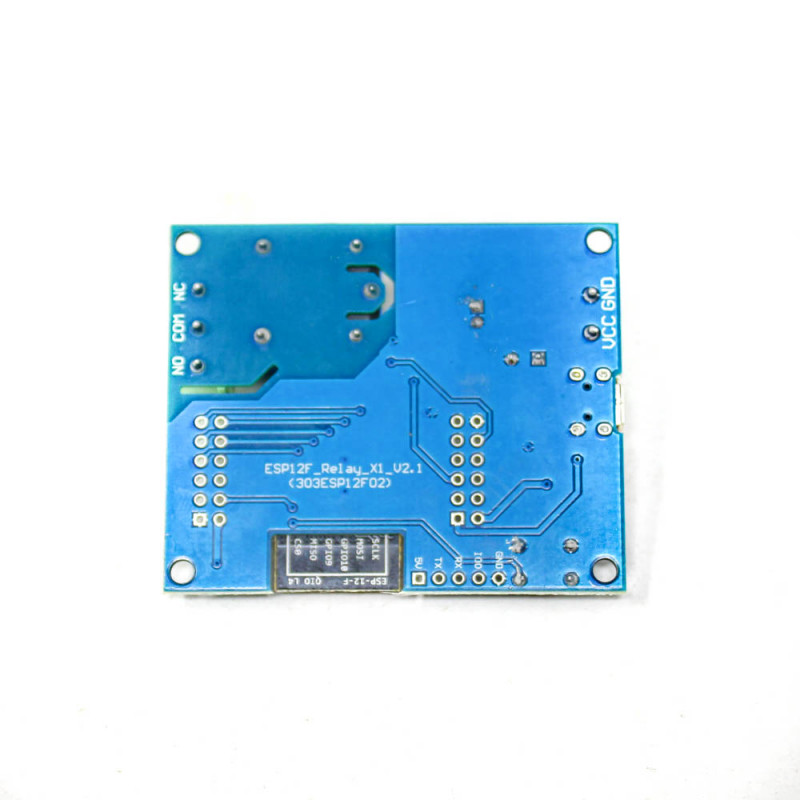

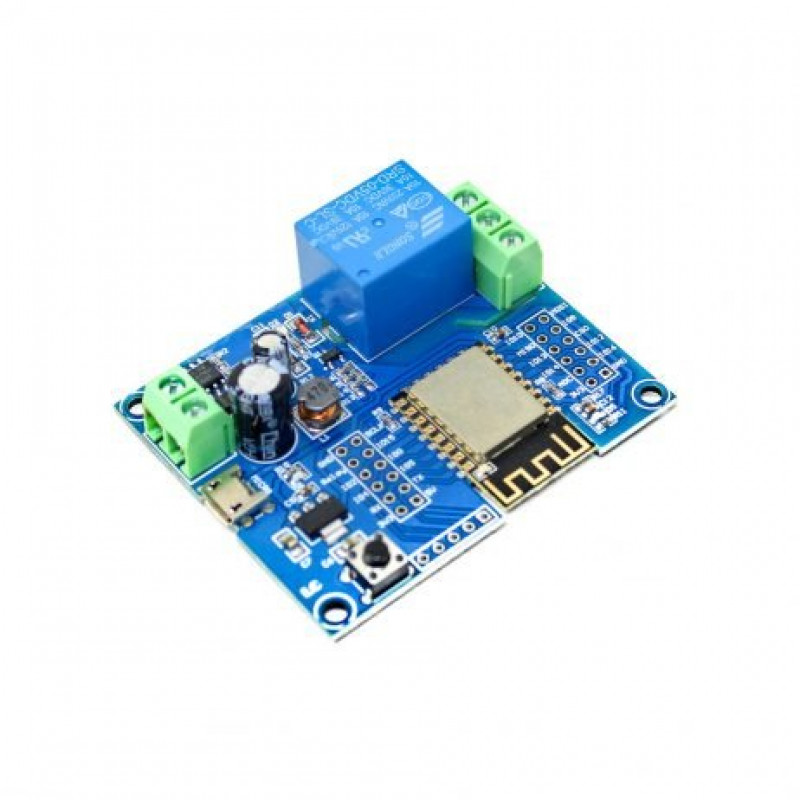

AC ESP8266 single relay development board onboard ESP-12F WiFi module, I/O orifice full lead, support DC 5- 80V, etc. many supply power way. Provide Arduino develop environment reference code, suit for ESP8266 secondary development study, smart home wireless control.
Features:
- On-board mature and stable ESP-12F WiFi module, large capacity 4M Byte Flash;
- The onboard WiFi module RST reset button;
- ESP-12F supports the use of Eclipse/Arduino IDE and other development tools and provides reference programs under for the Arduino development environment
- There are 1 5V relays on board, outputting switch signals, suitable for controlling loads whose working voltage is within AC 250V/DC30V
- Onboard power indicator and relay indicator.
Specifications:
- Power Supply:5-80 V
- Switching Voltage (VAC): (VAC):250@10A
- Switching Voltage (VDC): (VDC):30@10A
Package Includes:
1 x DC5-80V ESP8266 Wireless WIFI Relay Module 1 Channel ESP- 12F Wifi Development Board Power Supply for Arduino.
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 742.22 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
DC5-80V ESP8266 Wireless WIFI Relay Module 1 Channel ESP- 12F Wifi Development Board Power Supply for Arduino
- Product Code: EC-9456
- Availability: 3
-
Rs.649.00
- (Excluding 18% GST)
