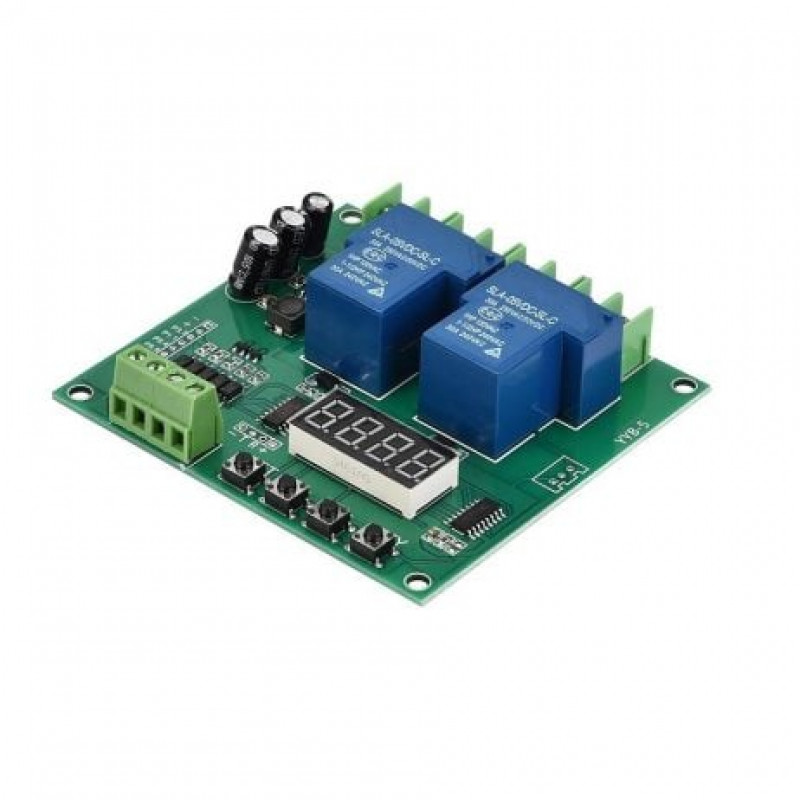

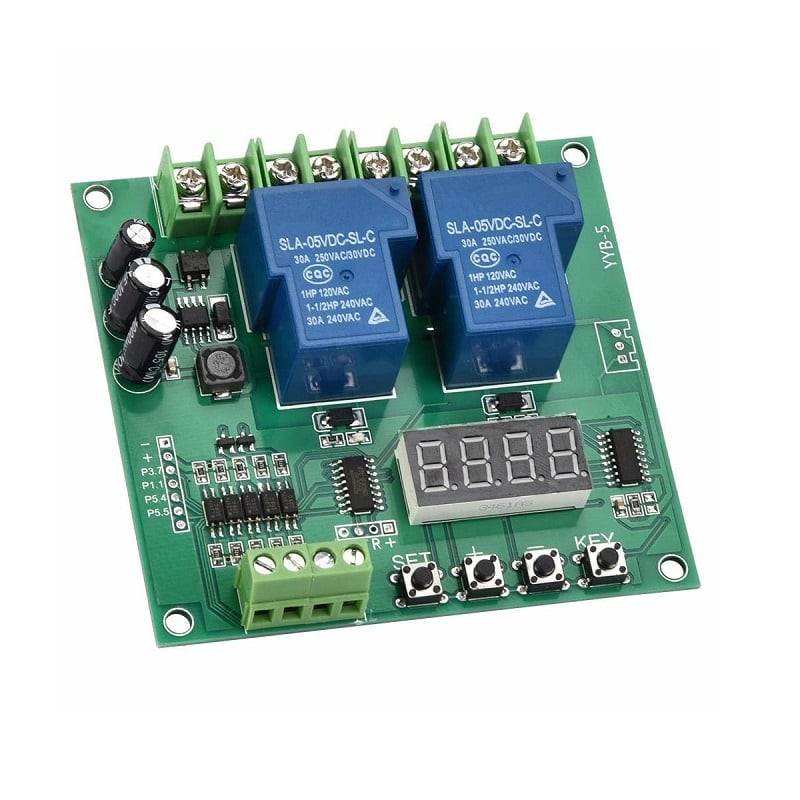

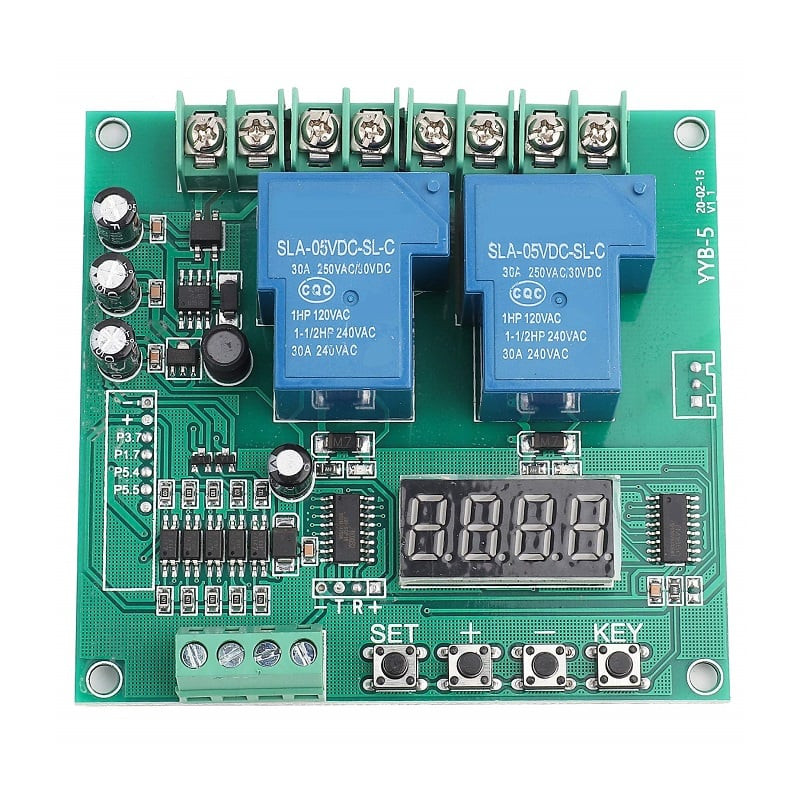

The Forward/Reverse Motor Controller Board 12V 24V Motor Two Relay Delay Timing Cycle YYB-5 Module is an electronic module designed to control the direction, speed, and timing of a DC motor.

Wiring Port Description:
1. AC/DC: Input 7V~27V
3. IN1: input 1 (negative trigger)
4. IN2: input terminal 2 (negative trigger)
2. IN3: input 3 (negative trigger)
5. NO: relay normally open interface, relay pull before the suspension, after the connection with the COM shorted
6. COM: relay common interface
7. NC: relay normally closed interface, the relay before the connection with the COM shorted, pull after the suspension

Note: The actual product may vary in slight variation with the image shown depending upon quantity availability.

Features:

1. Brand new and high quality
2. 6 kinds of commonly used functions to meet the needs of more applications.
3. It can control 2-way solenoid valve, pumps, motors, lights and other running freely.
4. Output power: it can control within 30A DC or AC load.
5. Time range: 0.1 seconds to 999 minutes any time adjustable
6. The motor control board can control within 30A DC or AC load.

Specifications:

1. Operation Mode: Automatic
2. Coil Voltage: 24 Volts
3. Model: YYB-5
4. Input voltage: DC/ AC7V~27V
5. Time range: 0.1 seconds to 999 minutes
6. Operation Mode Automatic
7. Maximum Switching Current 30 Amps
8. Relay Model: SLA-05VDC-SL-C
9. Product dimension (mm): 93 x 86 x 22
10. Product Weight (g): 104g

Package Includes:

1 x Forward/Reverse Motor Controller Board 12V 24V Motor Two Relay Delay Timing Cycle, YYB-5 Module
