This is MXD1230 6mm 650nm 5mW Red Line Laser Module with the adjustable focus point. Easy to install, Durable and portable. laser emission head For Ciclop Scanner 3D printer Components Points Spot Size Adjustable.. It can be used to connect diode tubes for multiple uses.
This Laser diode module is very efficient and useful for your electronic projects. For example, with this product, you can make a laser radiation sensor and with the use of an Arduino development board, you can create your own laser harp. Simply connect power to the red and black wires and you will be lasing in no time.
Note:
- It does not emit the RED-SPOT or Single RED Cross LINE since it is a line laser module.
- Please use the DC power supply 3~6V.
- Careful! This laser module has high output power, please wear goggles when testing or using as it can be hazardous to your vision.
- The laser beam must not be directed towards the eyes of a person or an animal in any way.
- The red cord is an anode, the black cord is a cathode.
Features:
- Practical test for point head: reflection visible to random target >1000m
- Focus lines Intensity can be adjusted with the help of lens ring head
Package Includes:
1 x MXD1230 6mm 650nm 5mW Red Line Laser Module
Specifications:
| Input Voltage (V) | 2.8 5.2 |
| Output Type | Red LINE |
| Max. Operating Current (mA) | 25 |
| Wavelength (nm) | 650 |
| Operating Temperature Range (°C) | -10 to 40 |
| Cable Length (cm) | 13 |
| Length (mm) | 36 |
| Width (mm) | 12 (Body Diameter) |
| Weight (gm) | 10 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 291.46 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

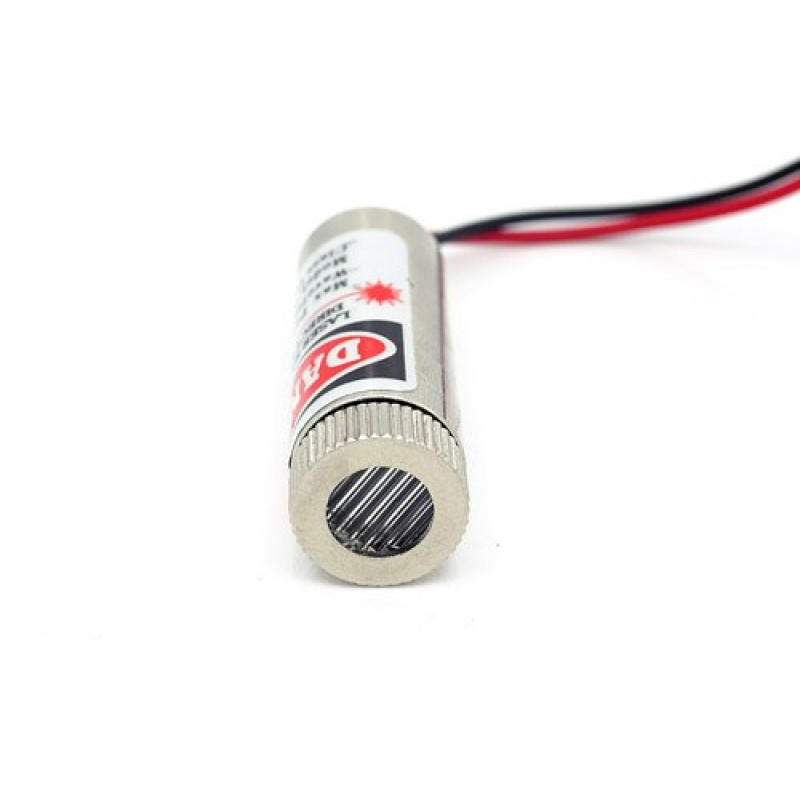

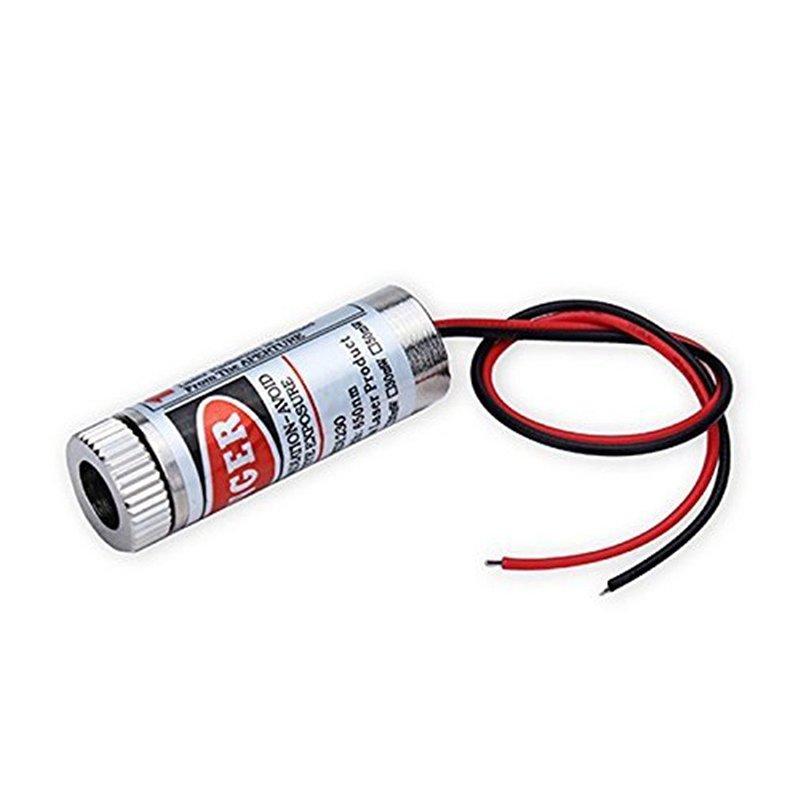

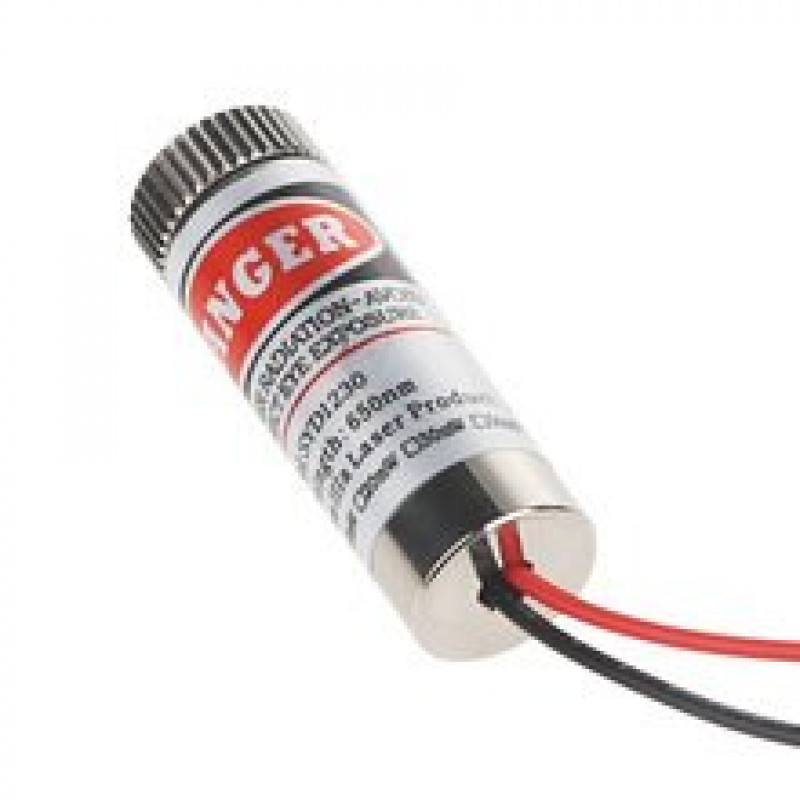

MXD1230 6mm 650nm 5mW Red Line Laser Module
- Product Code: EC-6825
- Availability: 30
-
Rs.133.00
- (Excluding 18% GST)
