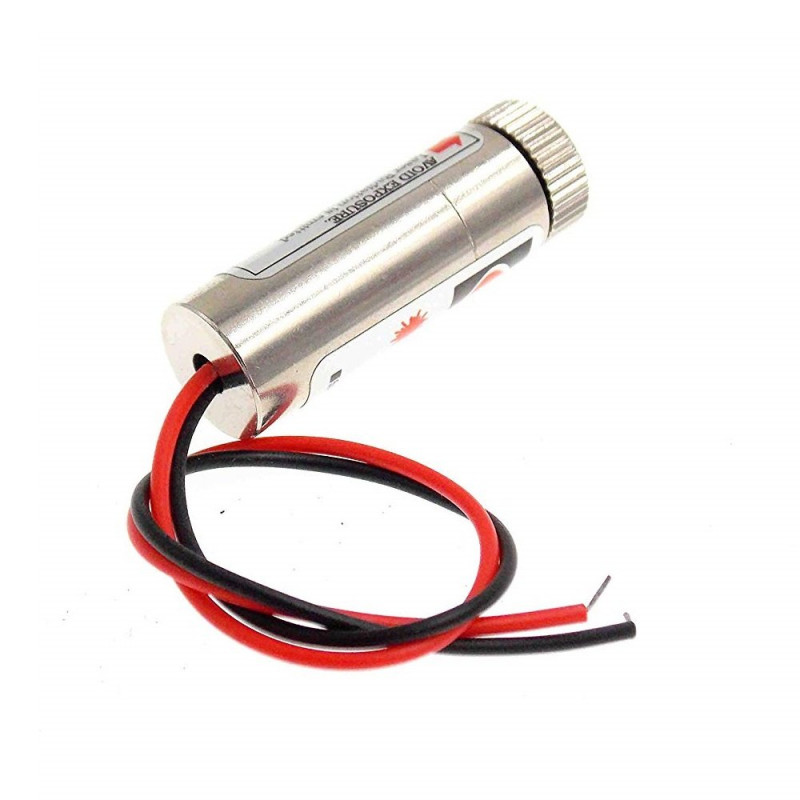

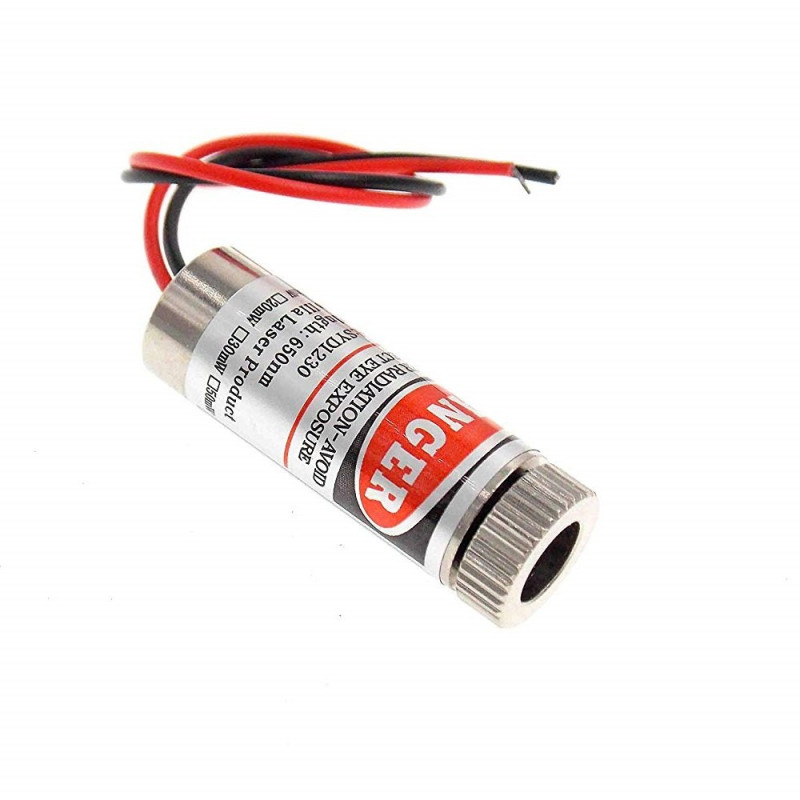

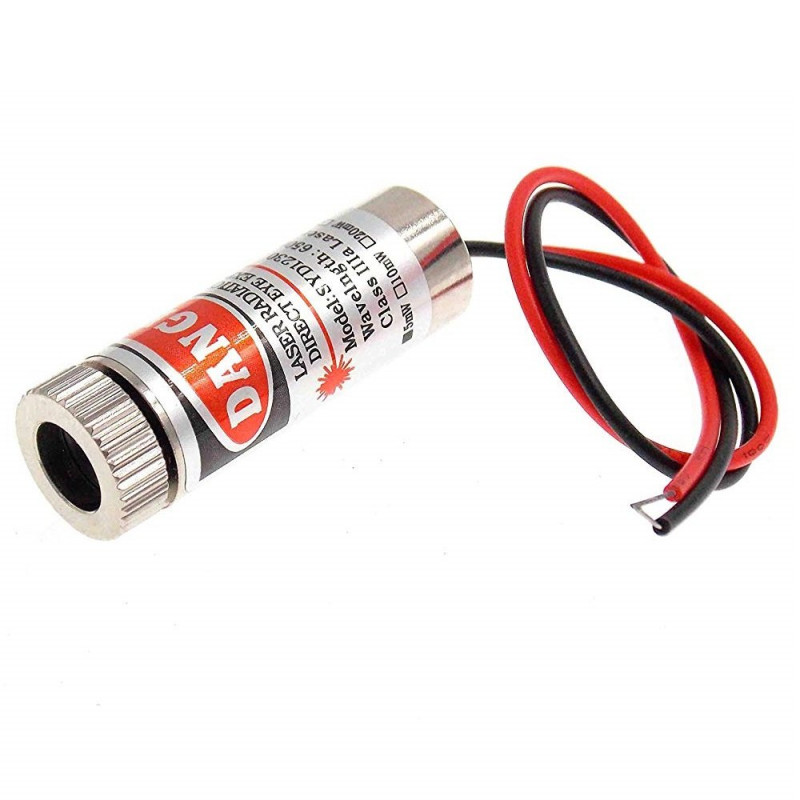

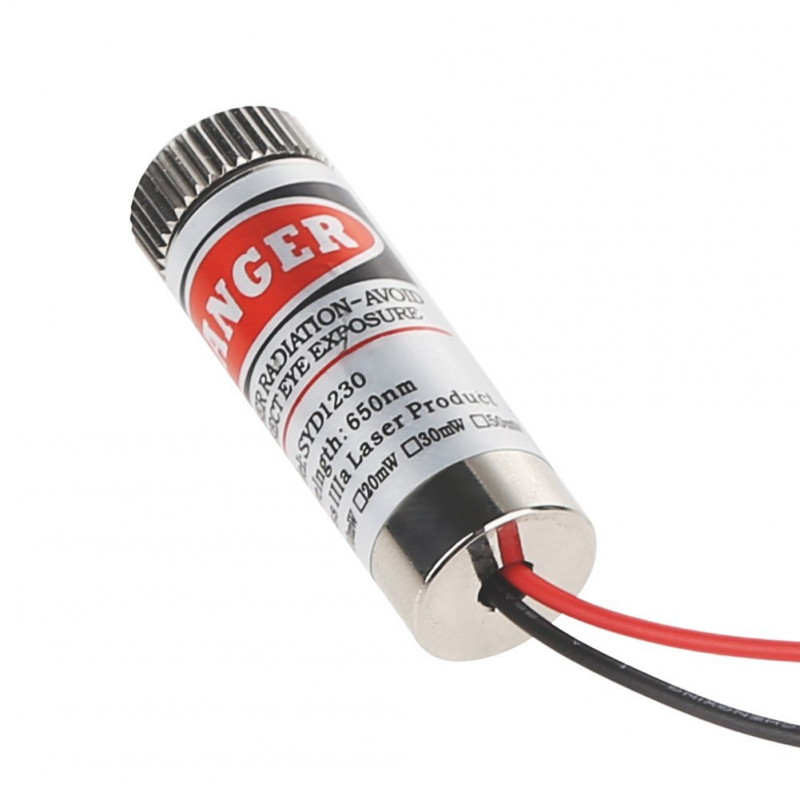

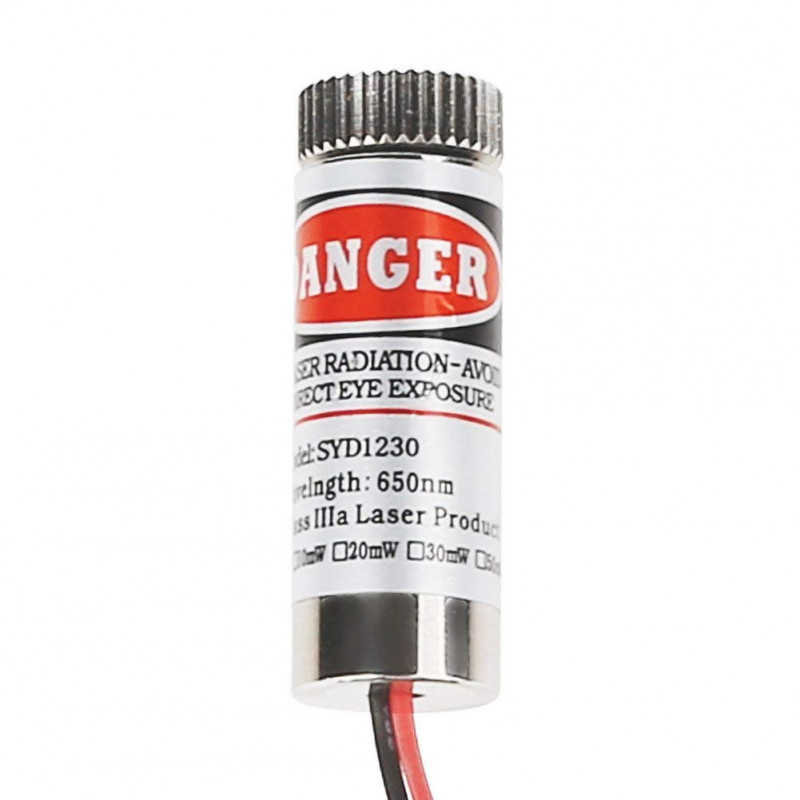

This is SYD1230 12mm 5mw Red CROSS LINES laser module. Easy to install, Durable and portable. laser emission head For Ciclop Scanner 3D printer Components Points Spot Size Adjustable.


It is suitable for 3V-5V 5mW standard, with 6mm outside diameter. It can be used to connect diode tubes for multiple uses.


This Laser diode module is very efficient and useful for your electronic projects.For example, with this product, you can make a laser radiation sensor and with the use of an Arduino development board, you can create your own laser harp. Simply connect power to the red and black wires and you will be lasing in no time.


Important NOTE and CAUTIONS:
  1. It does not emit the RED-Line or Point since it is a Single RED Cross LINE module.
  2. Please use the DC power supply 3~6V.
  3. Careful!This laser module has high output power, please wear goggles when testing or using as it can be hazardous to your vision.
  4. The laser beam must not be directed towards the eyes of a person or an animal in any way.
  5. The red cord is an anode, the black cord is a cathode.

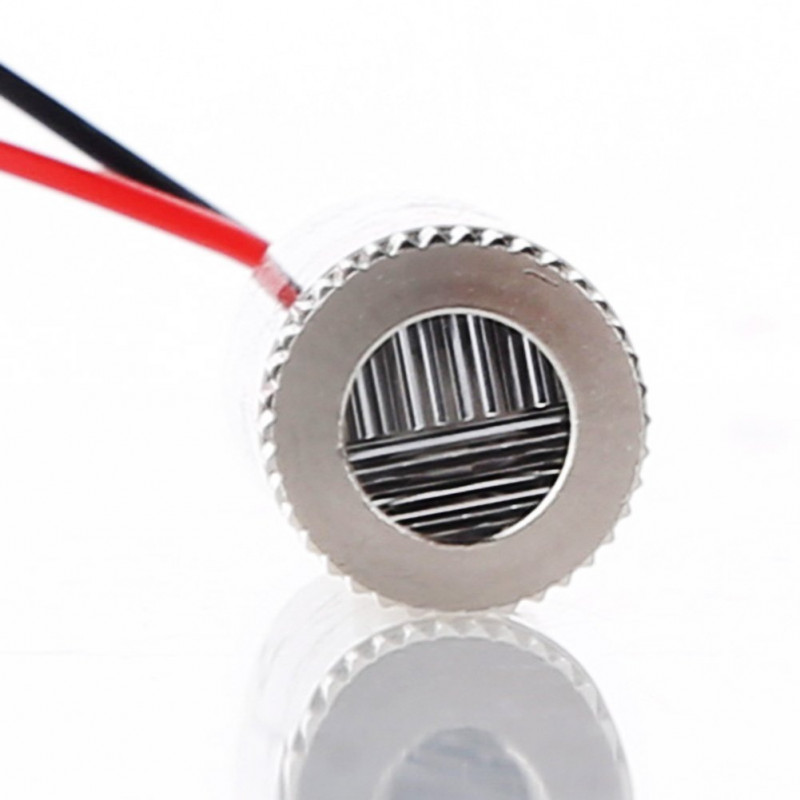

  6. Line-cross pattern Design of head shown in Image may differ from the actual product but it doesn't affect the functionality of the product.


Features:

  1. Practical test for point head: reflection visible to random target >1000m
  2. Focus points Intensity can be adjusted with the help of lens ring head


Package Includes:

1 x SYD1230 12mm 5mw Red CROSS LINES laser module



Specifications:

Input Voltage (V)

2.8 5.2

Input Current (A)

25m

Wavelength (nm)

650

Output Type

Red CROSS

Cable Length (cm)

13

Length (mm)

36

Width (mm)

12 (Body Diameter)

Weight (gm)

14



Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 341.02 (Inclusive of all Taxes)
