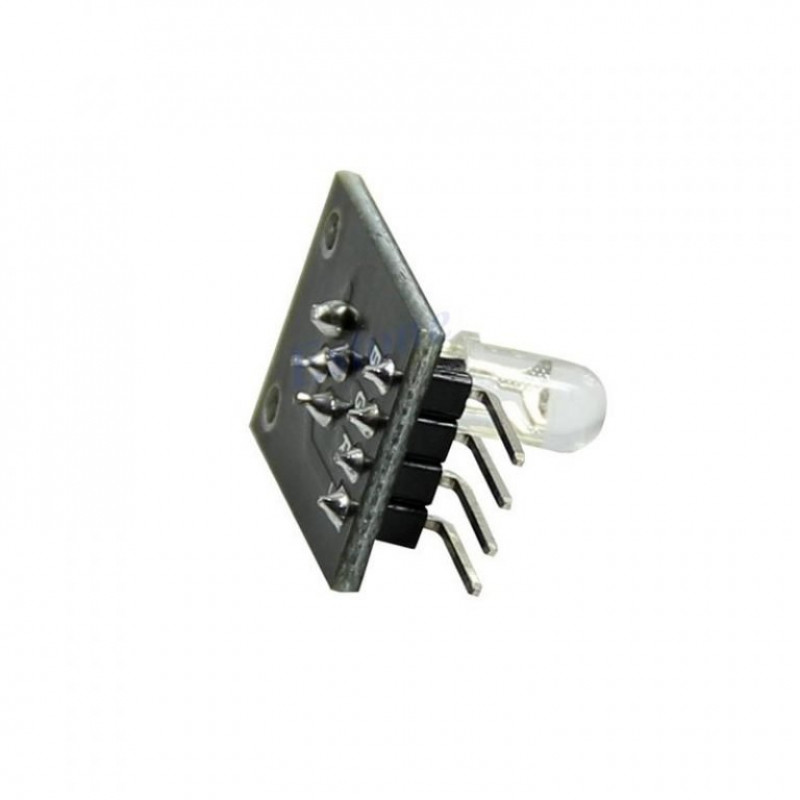

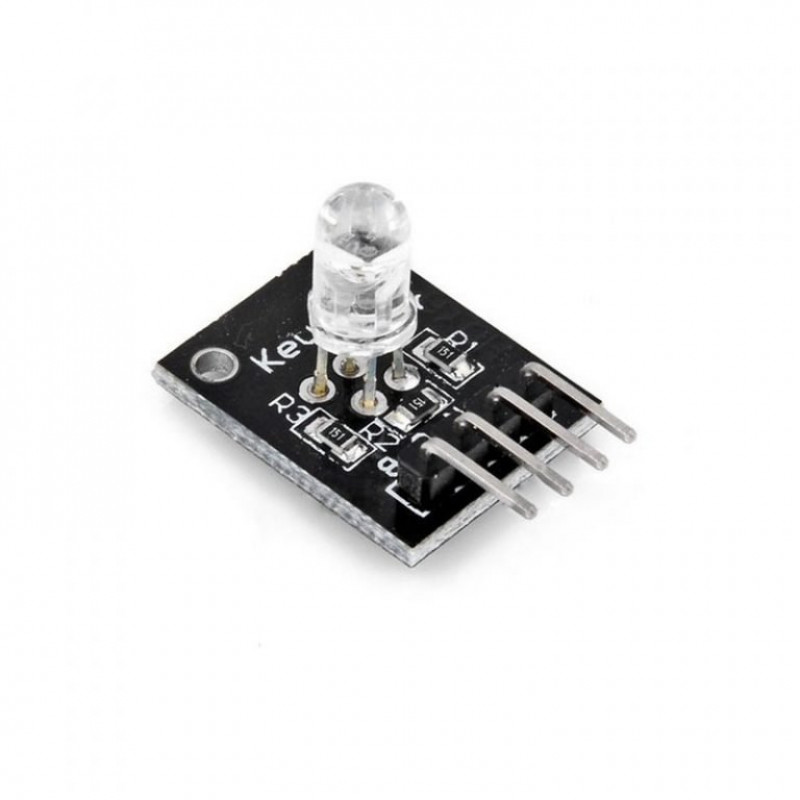

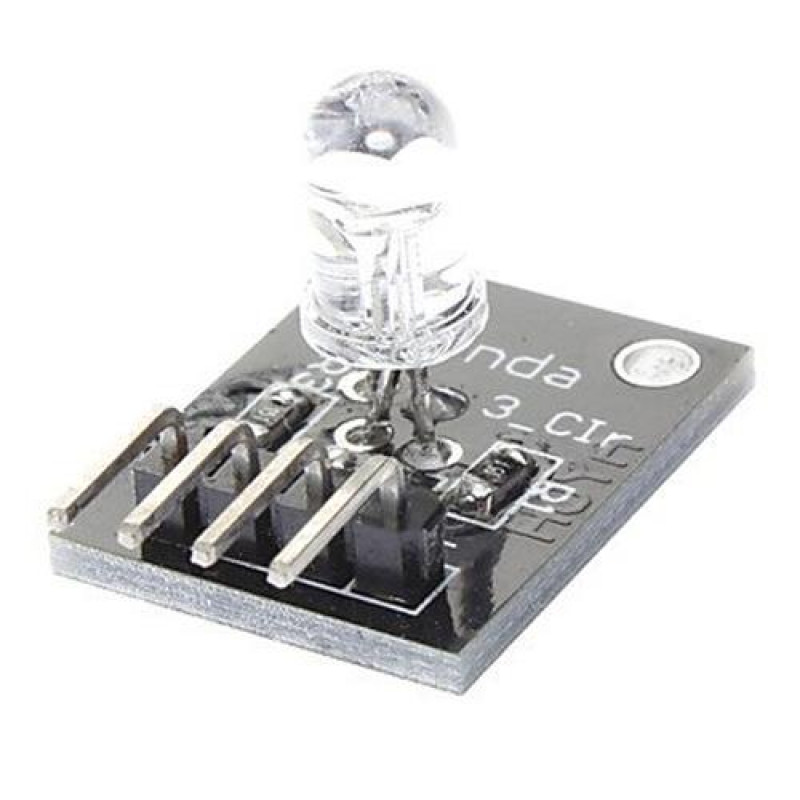

This module consists of a 5mm RGB LED and three150 limiting resistorsto prevent burnout. Adjusting the PWM signal on each colour pin will result in different colours.

This isa DIP 3 Color LED Module.Through the PWM adjusting, three primary colours can be mixed to obtain different colours.

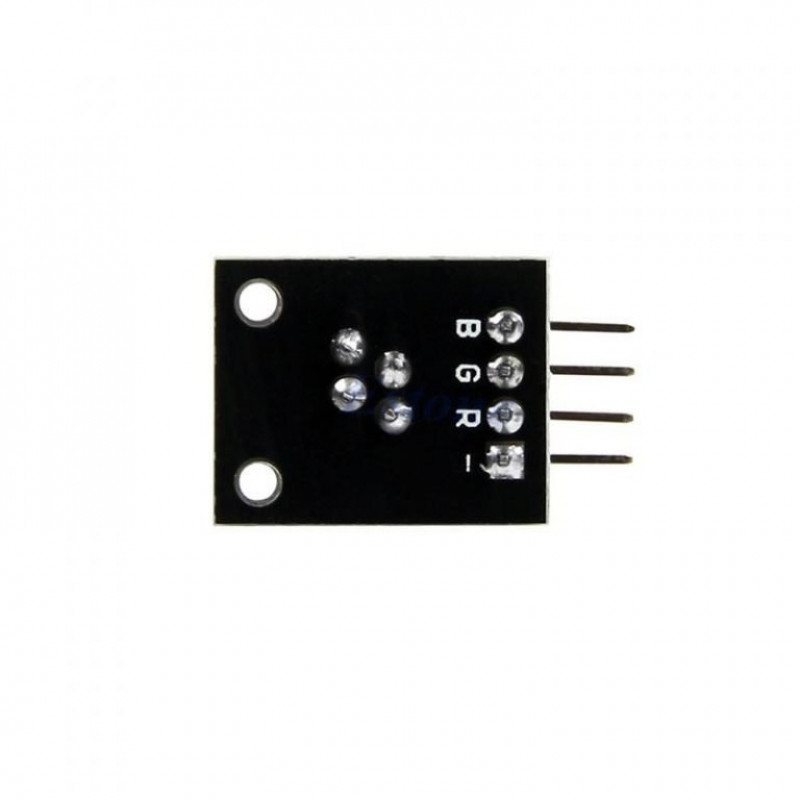

Connect the red pin (R) on the KY-016 to pin 11 on the Arduino. Blue (B) to pin 10, green (G) to pin 9 and ground (-) to GND. Notice that you do not need to use limiting resistors since they are already included on the board.


Pin Connection with Arduino:
LED moduleArduino
RPin11
BPin 10
GPin 9
-GND


Features :

  1. The use of plug-in full-colour LED.
  2. RGB trichromatic limiting resistor to prevent burnout.
  3. With a variety of single-chip interface.
  4. Through the PWM adjusting, three primary colours can be mixed to obtain different colours
  5. The working voltage: 5V


Package Includes :

1 x DIP 3 Color LED Module.



Specifications :-

Operating Voltage (VDC)

5

LED Type and Size

RGB 5 mm

LED drive mode

Common Cathode Driver

PCB Width

1.5mm

Length (mm)

20

Width (mm)

15

Height (mm)

15

Weight (gm)

5


Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 87.32 (Inclusive of all Taxes)
