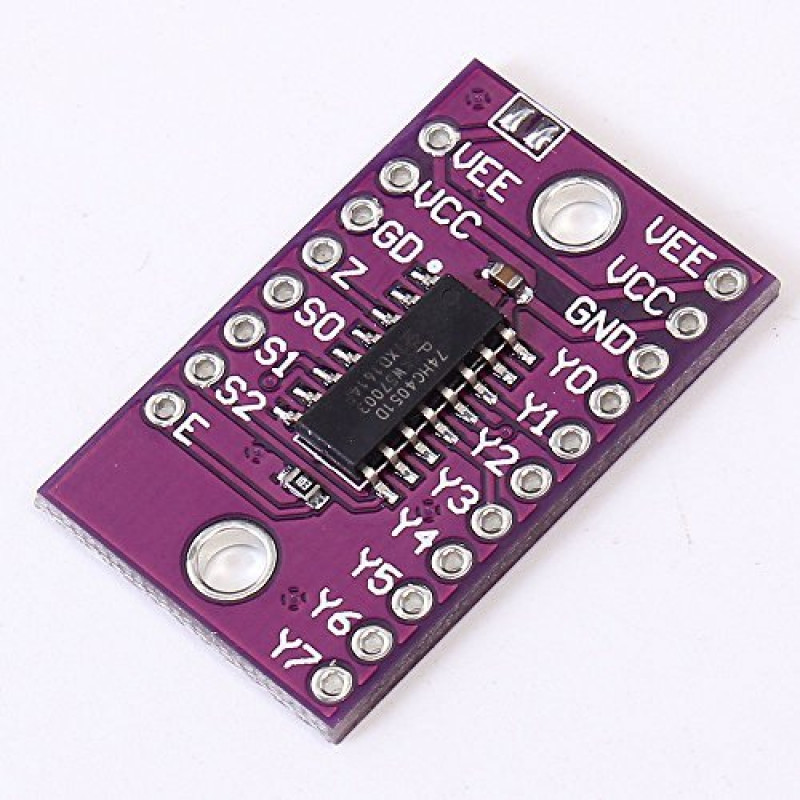

This is CJMCU-4051 74HC4051 8 Channel Analog Multiplexer/Demultiplexer Sensor Module Breakout Board for Arduino. 74HCT4051 is a single-pole octal-throw analog switch (SP8T) suitable for use in analog or digital 8:1 multiplexer/demultiplexer applications. The switch features three digital select inputs (S0, S1, and S2), eight independent inputs/outputs (Yn), a common input/output (Z) and a digital enable input (E). When E is HIGH, the switches are turned off. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.

Specifications and Features :

1.Wide Analog Input Voltage Range: +/-5V
2.Low ON Resistance: 80 ohm (type) at Vcc = 4.5V; 70 ohm (type) at Vcc = 6.0V; 60 ohm (type) at Vcc = 9.0V
3.Logic Level Translation: to enable 5V to communicate with +/-5V analog signals
4.Board Size: 30 x 19 mm

Package Includes :

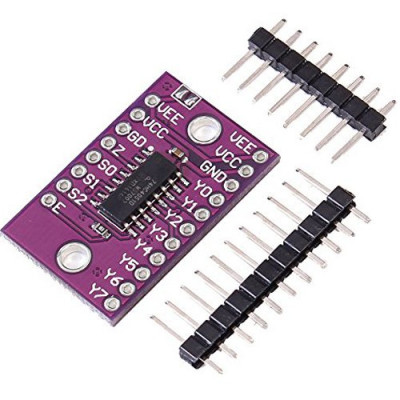

1 x 8 Channel Analog Multiplexer Demultiplexer Sensor Module with berg Pins.

Specifications :-

Input Supply voltage (V)


Length (mm)


Width (mm)


Height (mm)


Weight (gm)


Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 187.62 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

CJMCU-4051 74HC4051 8 Channel Analog Multiplexer/Demultiplexer Breakout Board for Arduino

  • Product Code: EC-6843
  • Availability: 24
  • Rs.136.00
  • (Excluding 18% GST)
