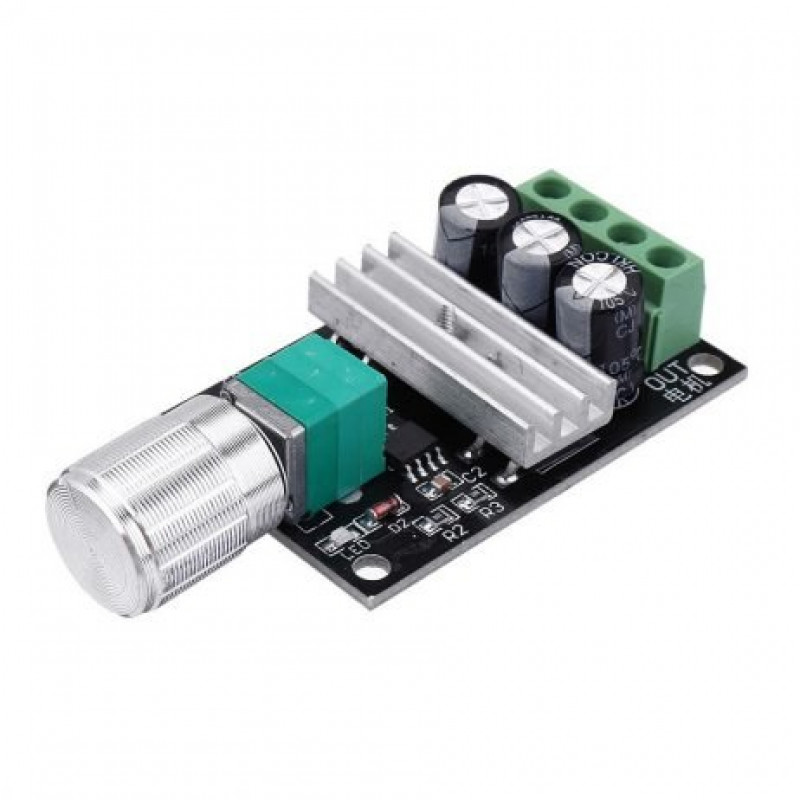

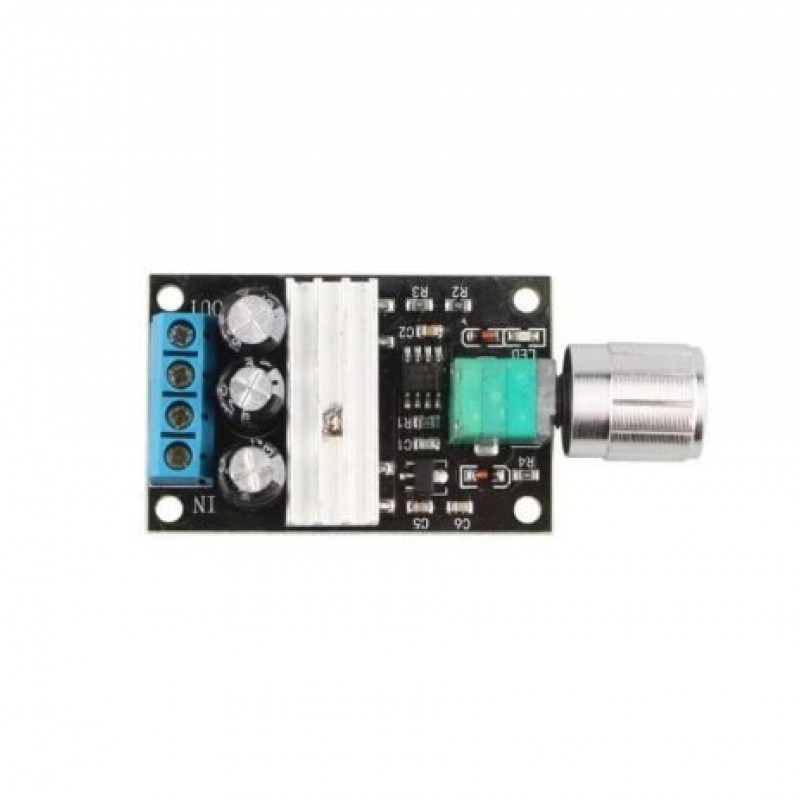

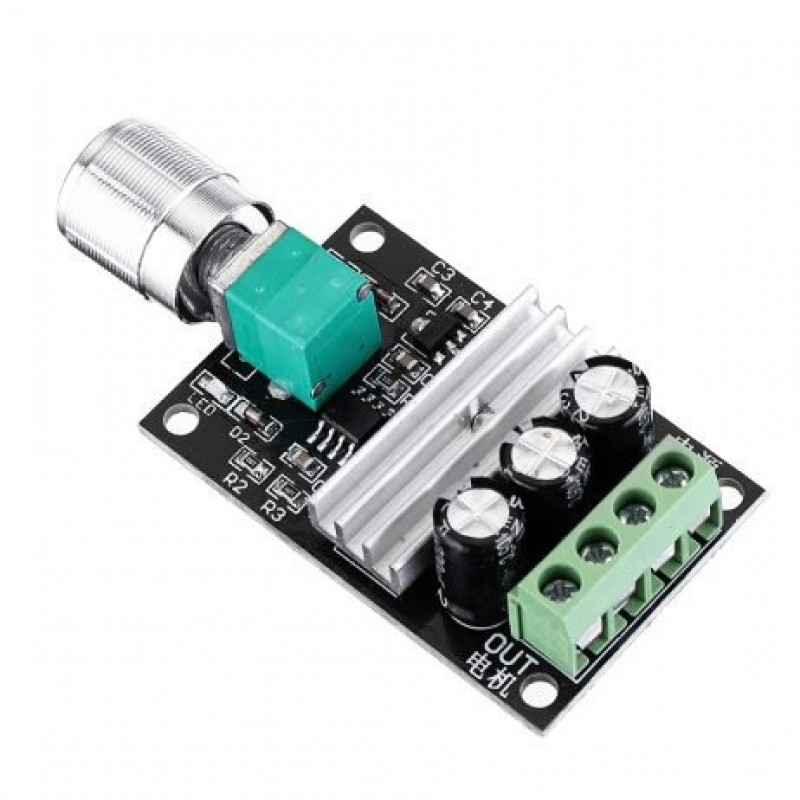

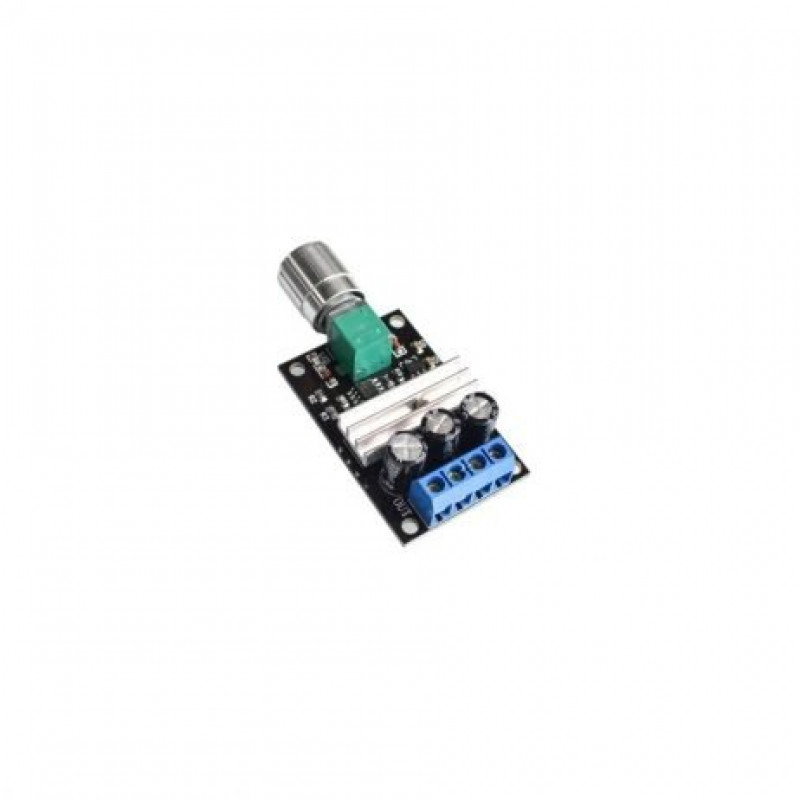

This 1203B PWM 6V 12V 24V 28V 3A DC Motor Speed Regulator allows controlling the speed of a motor with fully adjustable 0%-100%. The motor speed controller can easily provide a continuous current of 3A to your DC motor or other DC load.

Application:
  • This PWM Speed controller is forDC 6V 12V 24V 28V Motor.

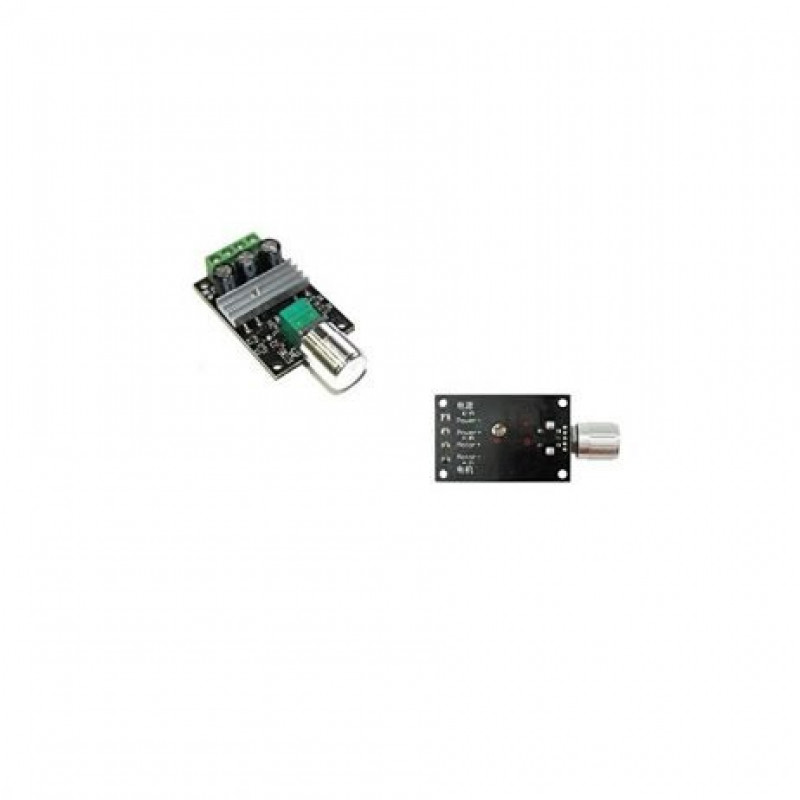

Pinouts:
  • Motor+: Motor Positive Terminal
  • Motor-: Motor Negative terminal
  • Power+: DC 6V 28V
  • Power-: Gnd

Note: Product Image May vary in terms of front knob or connector colour according to the availability


Features:

  • Speed of a motor is fully adjustable
  • DC 6V 12V 24V 28V Supported

Package Includes:

1 x 1203B PWM 6V 12V 24V 28V 3A DC Motor Speed Regulator



Specifications :-

Operating Voltage range

DC 6V 28V

Operating Current Range

Within 3A

Speed range

0-100%

Length (mm)

65

Width (mm)

32

Height (mm)

15

Weight (gm)

25


Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

1203B PWM 6V 12V 24V 28V 3A DC Motor Speed Regulator

  • Product Code: EC-5438
  • Availability: 89
  • Rs.208.00
  • (Excluding 18% GST)
