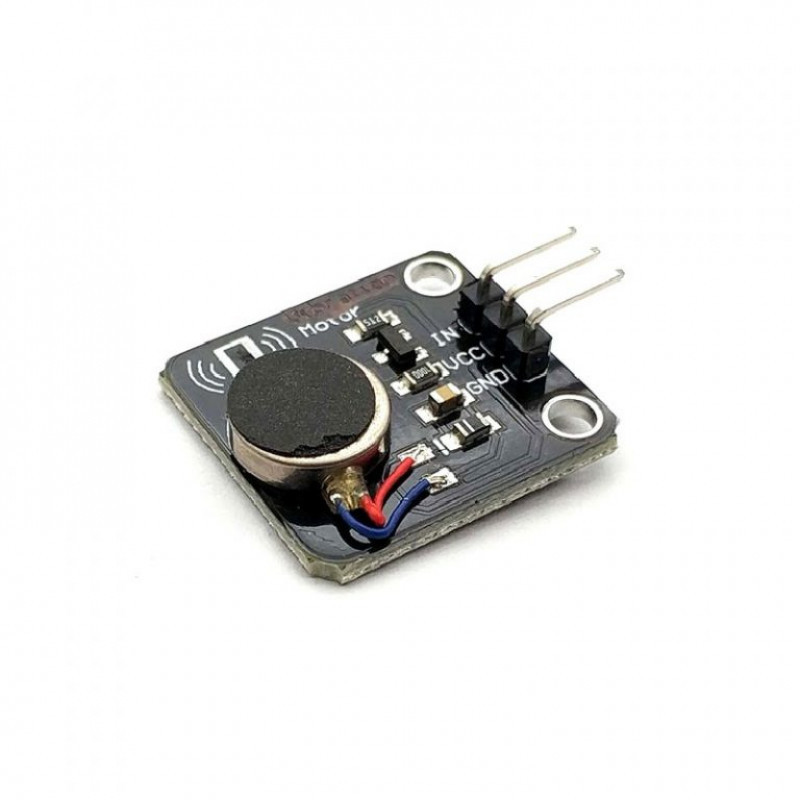

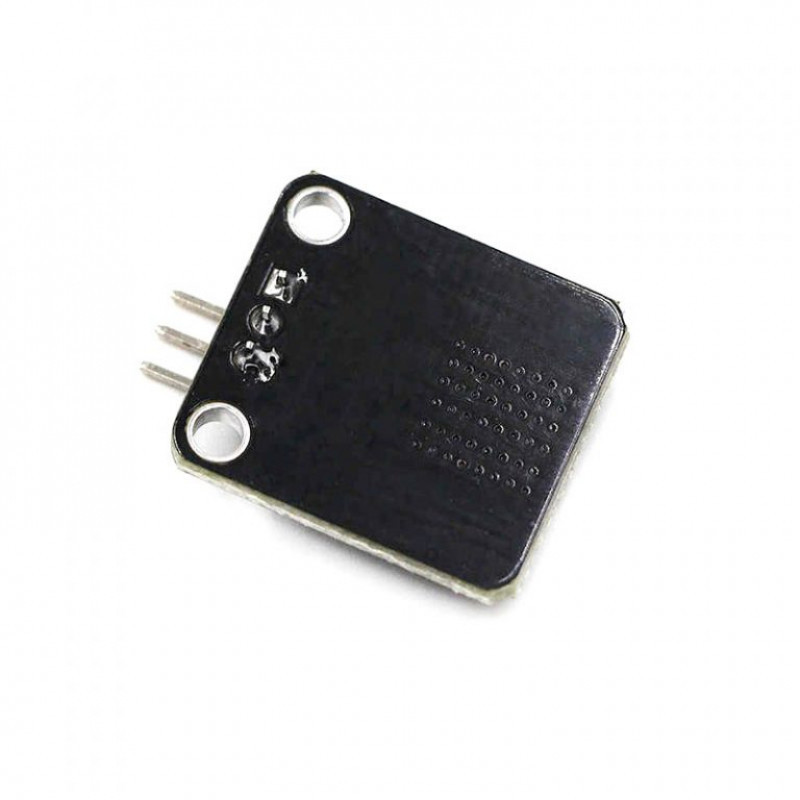

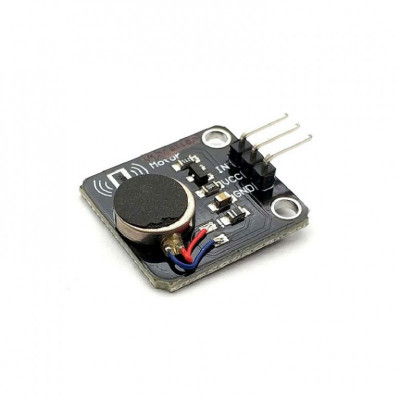

Do you need a vibration motor? So we have a small WM Vibration Motor Switch Toy Motor Sensor Module DC Motor Mobile Phone Vibrator DIY Kit Board sensor suitable as a non-audible indicator. When the input is high, the motor vibrates, just like your silent mode phone. The vibration intensity of the motor can be controlled by PWM; moreover, this module can easily convert electrical signals to mechanical vibration. Applications of this device include vibration-sensitive interactive products, wearable smart device, vibration reminders, etc.
Features:-
- Rated voltage: 5.0VDC
- High rated speed
- Size: 21*23mm
- Fixed hole: 3mm
- Pitch: 15mm
- Flat motor
- Drive: MOS tube high-level trigger, low-level cutoff
- Compatible with UNO R3/ Mega2560
- Great for DIY projects
Specifications:-
| Operating Voltage | 3 5.3 VDC |
| Motor Diameter | 10mm |
| Rated Speed | 9000 RPM (min) |
| Rated Voltage | 5 VDC |
| Rated Current | up to 60 mA |
| Starting Current | up to 90 mA |
| Starting Voltage | 3.7 VDC |
| Insulation Resistance | 10 M |
| Length (mm) | 23.5 |
| Width (mm) | 21 |
| Height (mm) | 8 |
| Weight (gm) | 3 |
Package Includes:
1 x DC Motor Mobile Phone Vibrator Vibration Motor Alarm Module Black
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 152.22 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
DC Motor Mobile Phone Vibration Motor Alarm Module
- Product Code: EC-4768
- Availability: 178
-
Rs.133.00
- (Excluding 18% GST)
