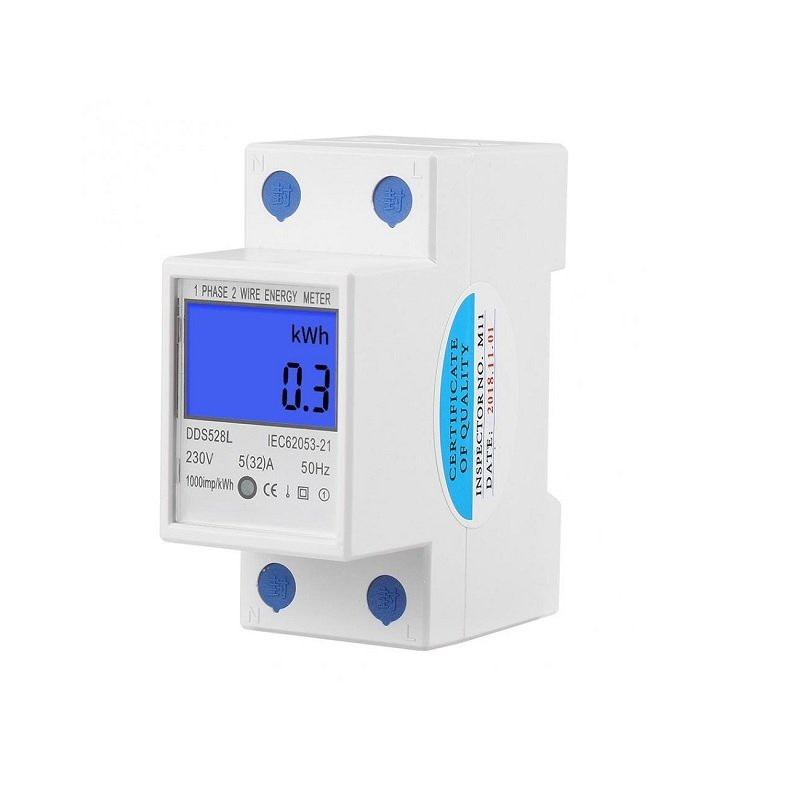

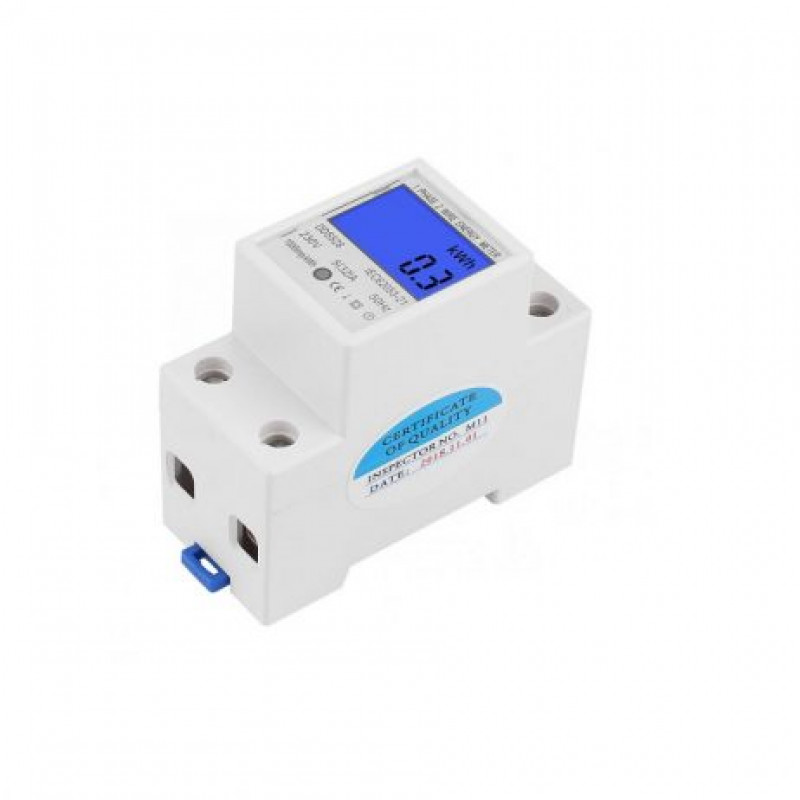

The DIN rail single phase electronic energy meter is a new style single phase whole type electronic type meter that uses cutting-edge microelectronics technology and imported special large-scale integrated circuits, as well as advanced digital sampling and SMT techniques.

In the rated frequency range of 50 Hz to 60 Hz, the meter is used to measure active energy power consumption. It can measure active energy consumption accurately and directly in both positive and negative directions.

Caution:

Please make sure, that there isn't heavy corrosive gas or any influence of dust, mold, and insects near the meter

Note:

1. The actual image may vary in terms of seal cap and buckle color

Features:

1. Good reliability
2. Small Volume
3. Light Weight
4. Specious nice appearance

Specifications:

1. Model: DDS528
2. Rated voltage: 230VAC
3. Rated current: 5-32A
4. Load capacity: 0.05Ib Imax (direct access type) or 0.02Ib Imax (access via transformer)

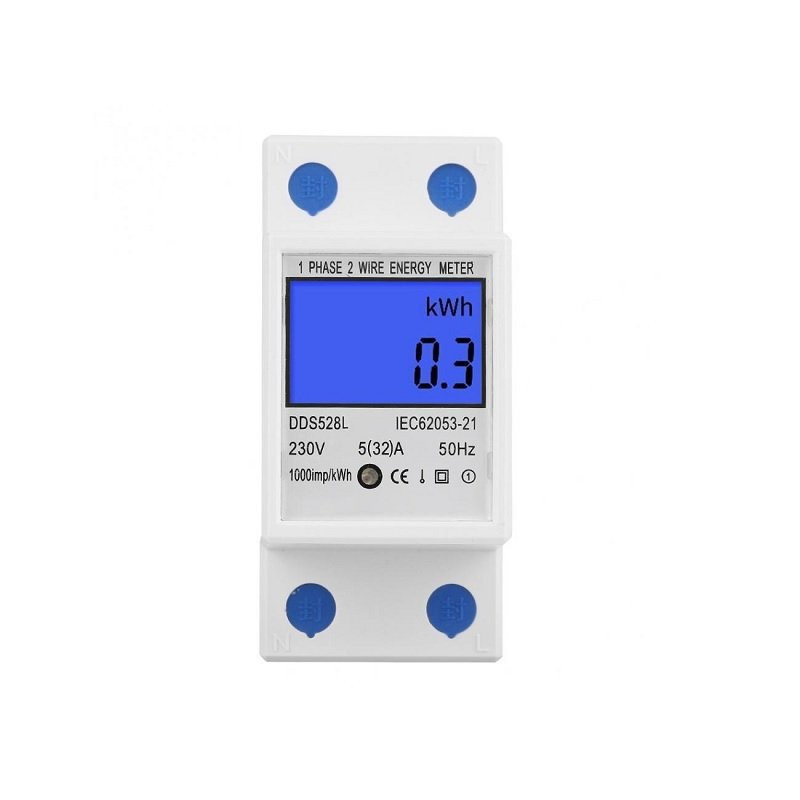

5. Data display: LCD display
6. Backlight: No

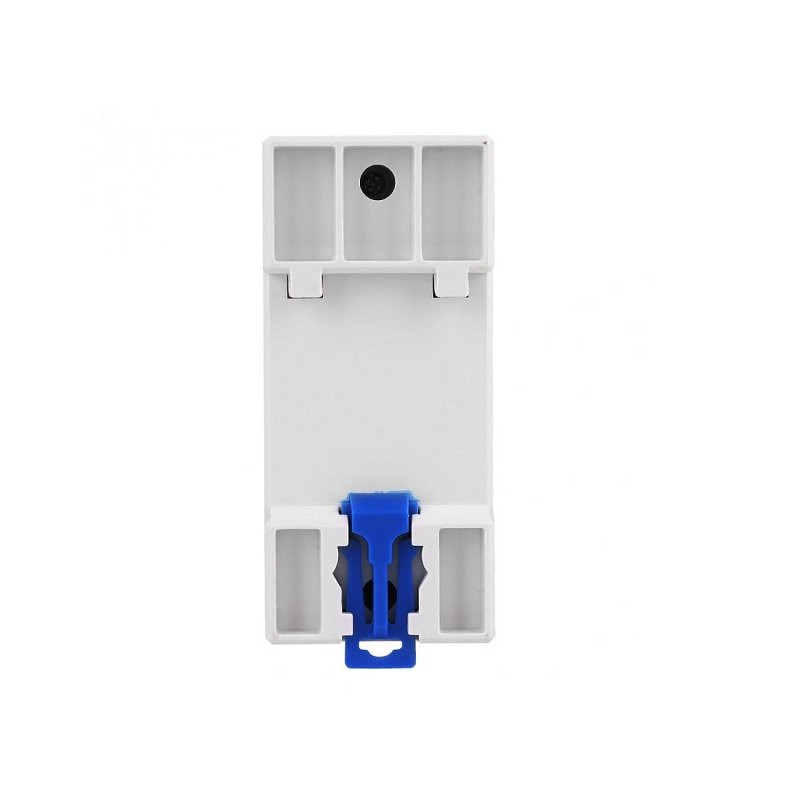

7. Mounting method: 35mm DIN rail
8. Working Temperature range: -25~55
9. Relative Humidity :95%RH
10. Size: 78.536.5mm
11. Weight:113 gm

Package Includes:

1 x DDS528L Energy Meter

4 x Seal Cap
