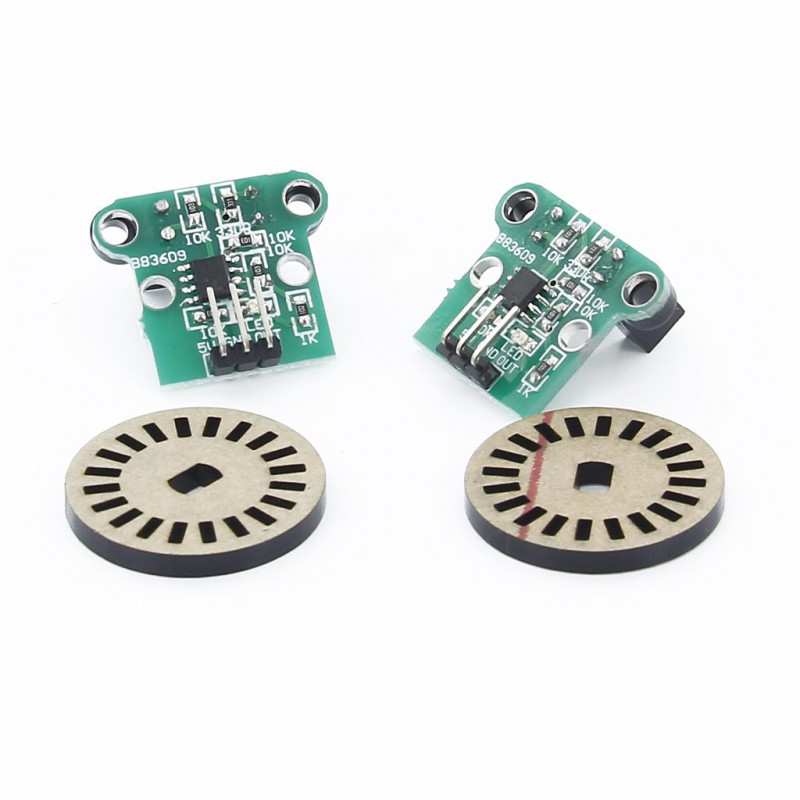

This speed measuring sensor is a wide voltage, high resolution, short response time, and the switch output speed measurement module. It can test the motors rotational speed with a black encoder (measured spec. is related to the encoder, the inner diameter of D type encoder that provided is 4mm, can be used for motor output shaft w/ 4mm diameter, which is TT motor we matched, yellow shell and white axis)
Features and Specification:
- Signal output: A, B two way; The TTL level
- Disc diameter: 24mm
- Inner Disc Diameter:: 4 mm
- The encoder resolution is about 20 line
- Speed measuring sensor configuration: The configuration can measure 1 road motor speed
Package Includes :

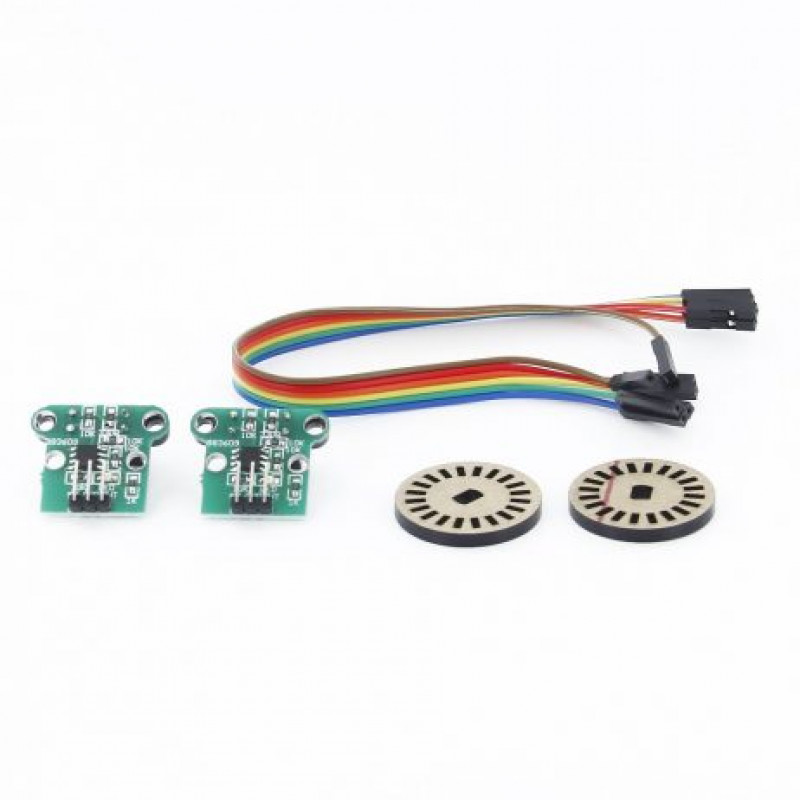

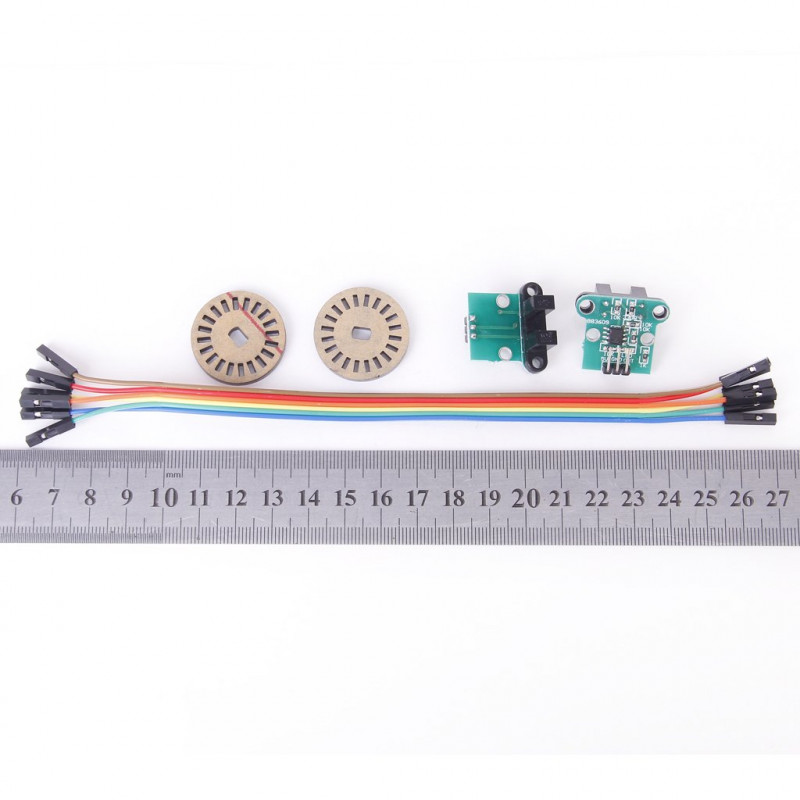

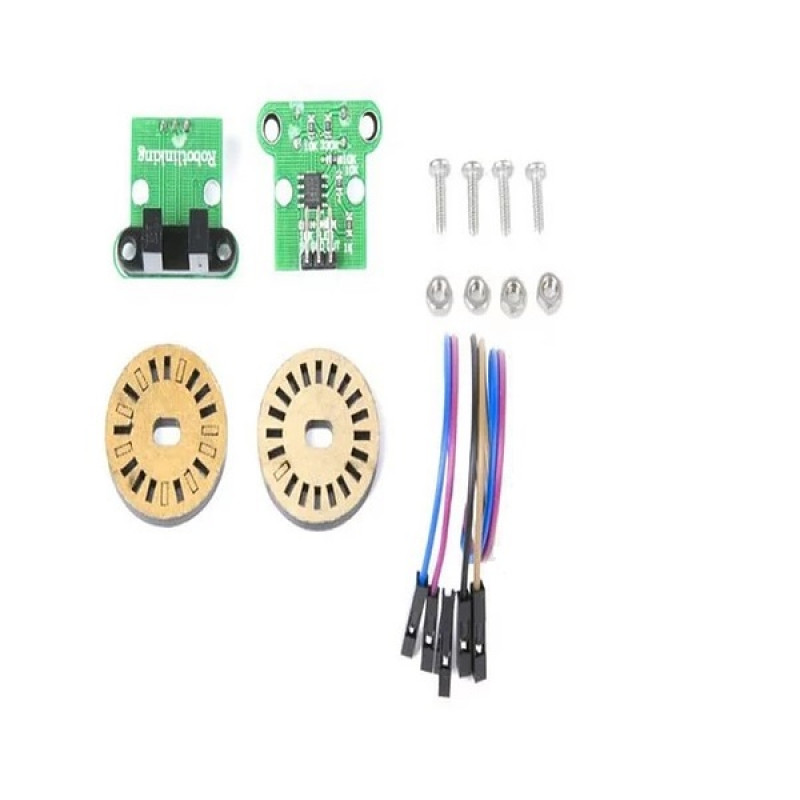

1 x Double Speed Measuring Module kit
1 x Screw set
Specifications :-
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Double Speed Photoelectric Measuring Module
- Product Code: EC-7904
- Availability: 2
-
Rs.394.00
- (Excluding 18% GST)
