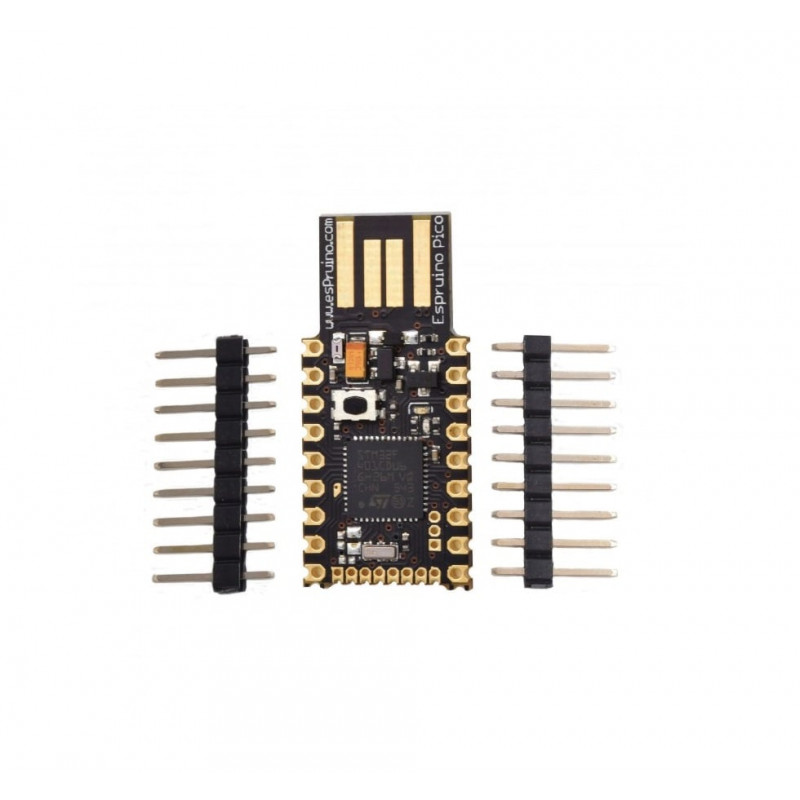

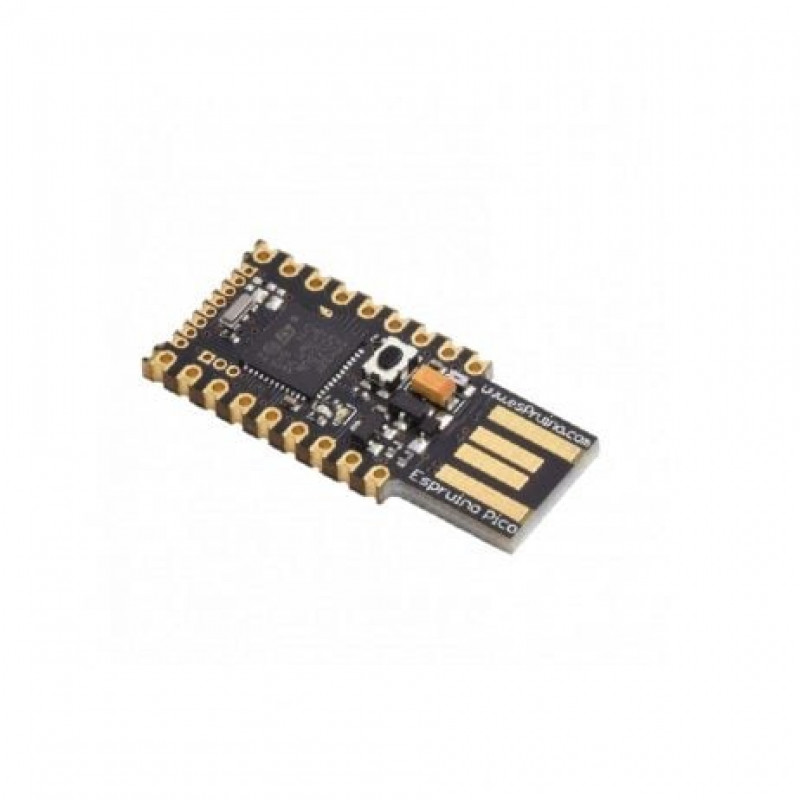

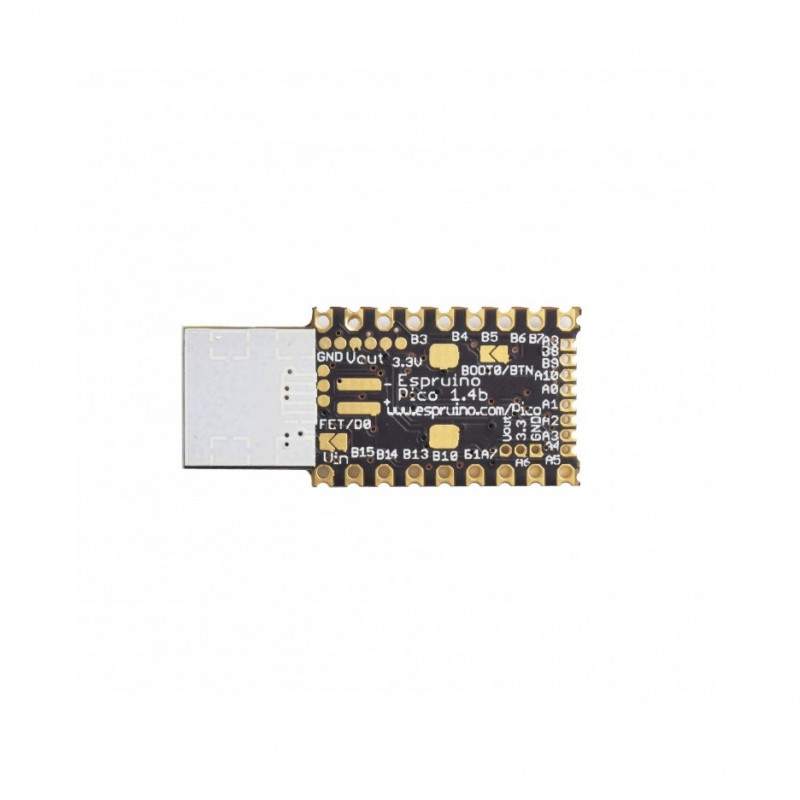

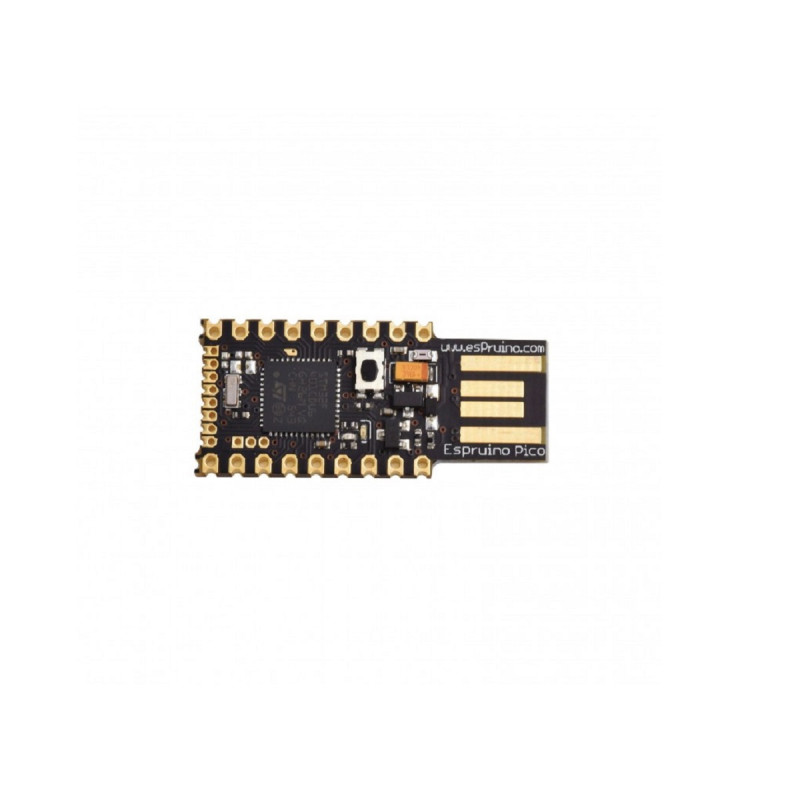

Espruino Pico is a tiny microcontroller board that runs JavaScript (it doesn't need to be plugged into a computer), making it easier than ever to control electronics in the real world. You can program it with nothing but a serial terminal program, but there's also an IDE that runs in the Chrome Web browser. Its got a syntax highlighted editor as well as a graphical programming language.
Once you have uploaded code, you can inspect and change variables (including functions) while your program is running. If you make something with an Espruino Pico and need to change it a year later, your original code is still there waiting for you!
Features:
- 33mm x 15mm (1.3 x 0.6 inch)
- 22 GPIO pins: 9 Analogs inputs, 21 PWM, 2 Serial, 3 SPI, 3 I2C
- All GPIO is 5 volt tolerant (Arduino compatible)
- 2 rows of 9 0.1 pins, with a third 0.05 row of 8 pins on the end
- On-board USB Type A connector
- Two on-board LEDs and one button.
- Current draw in sleep: < 0.05mA over 2.5 years on a 2500mAh battery
- On-board FET can be used to drive high-current outputs
Specification:
- 33mm x 15mm (1.3 x 0.6 inch)
- 22 GPIO pins: 9 Analogs inputs, 21 PWM, 2 Serial, 3 SPI, 3 I2C
- STM32F401CDU6
- CPU ARM Cortex M4,
- 384kb flash,
- 96kb RAM
- On-board 3.3v 250mA voltage regulator, accepts voltages from 3.5v to 16v
Package Includes :
1 x Espruino Pico (unpinned)
Brand/Manufacturer | Generic |
Country Of Origin | China |
Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
MRP | Rs. 4246.82 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Espruino Pico (unpinned)
- Product Code: EC-9311
- Availability: 1
-
Rs.3343.00
- (Excluding 18% GST)
