This Level Converter- 4 Channel features four high speed bi-directional 4 channels, allowing for safe and easy communication between devices operating at different logic levels.
The logic level converter circuit convert signals as low as 1.8 V to as high as 5 V and vice versa, and its four channels are enough to support most common bidirectional and unidirectional digital interfaces, including IC, SPI, and asynchronous TTL serial.
If you have ever tried to connect a 3.3V device to a 5V system, you know what a challenge it can be? A bi-directional Level Converter- 4 Channel is a small device that safely steps down 5V signals to 3.3V AND steps up 3.3V to 5V at the same time. This level converter also works with 2.8V and 1.8V devices. What really separates this Logic level converter from our previous versions is that you can successful

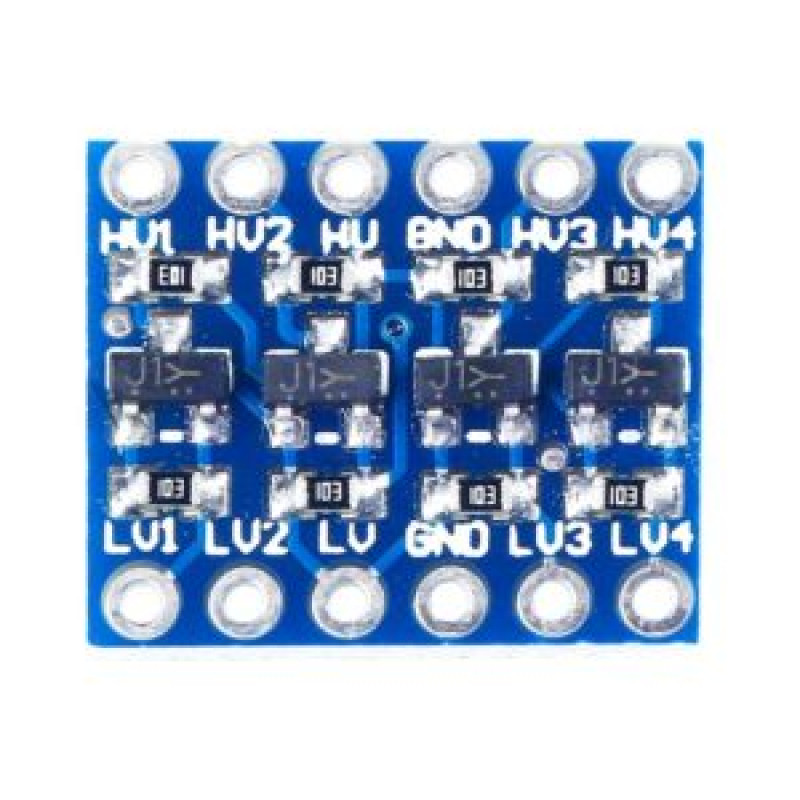

How to use:
- High voltage (5V for example) to the HV pin
- Low voltage (3.3V for example) to LV
- Gound from the system to the GND pin.
Specifications and Features:
- Mutual transform between 5V TTL and 3.3V TTL
- Four channels of logic and high voltage low voltage logic can two-way transform
- Portable and lightness, with 2 rows 6 pin contact pins
- Level Converter- 4 ChannelCompatible with the bread plate, can be used directly put on the breadboard
- 4 Channel Module (great for I2C or SPI) and will work with all microcontrollers, Arduino, Raspberry Pi, Intel Edison, NXP Mbed
Additional information
Number of Channels | 4 |
Voltage on Lx Side | 1.8V-5V |
Voltage on Hx Side | 2.8V-6V |
Power | 2.8V 6V |
Length (mm) | 16 |
Width (mm) | 13 |
Height (mm) | 3 |
Weight (gm) | 2 |
Package Includes:
1 x I2C 4 Channel 3.3V to 5V Bi-Directional Logic Level Converter
Brand/Manufacturer | Generic |
Country Of Origin | China |
Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
MRP | Rs. 56.64 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

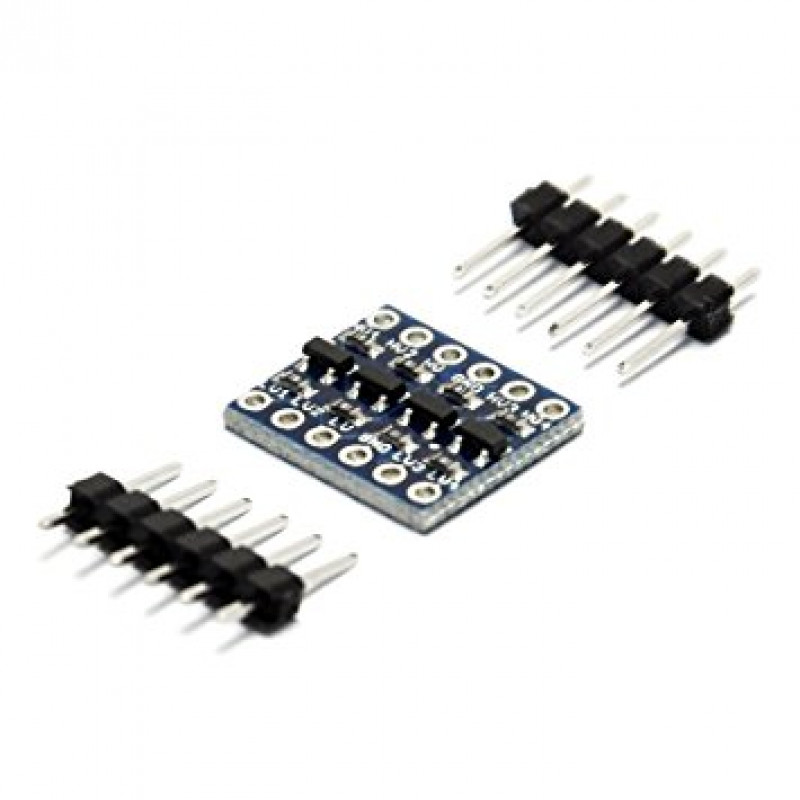

I2C 4 Channel 3.3V to 5V Bi-Directional Logic Level Converter
- Product Code: EC-4887
- Availability: 1192
-
Rs.23.00
- (Excluding 18% GST)
