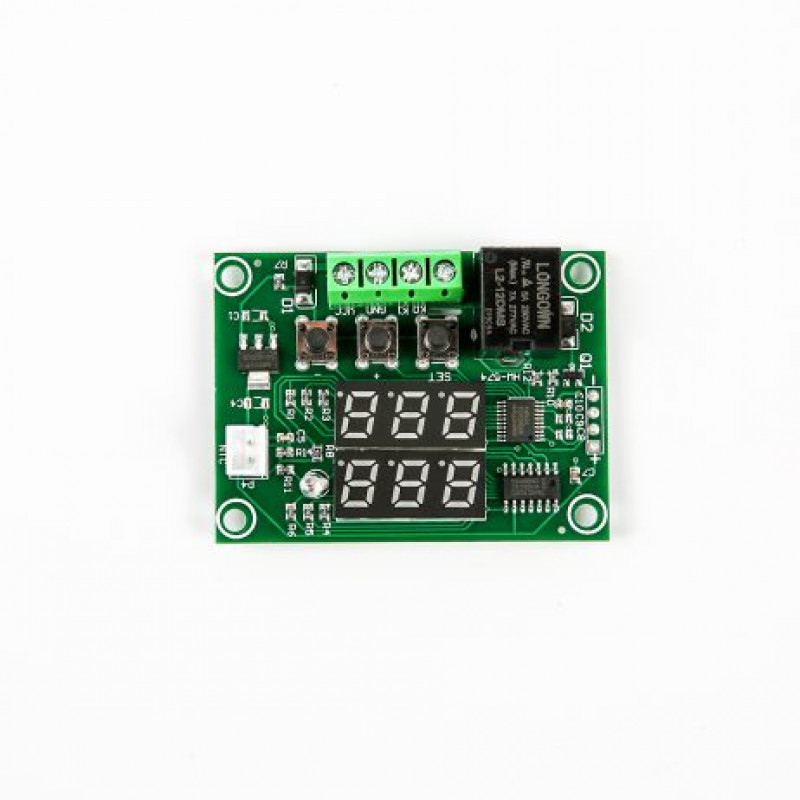

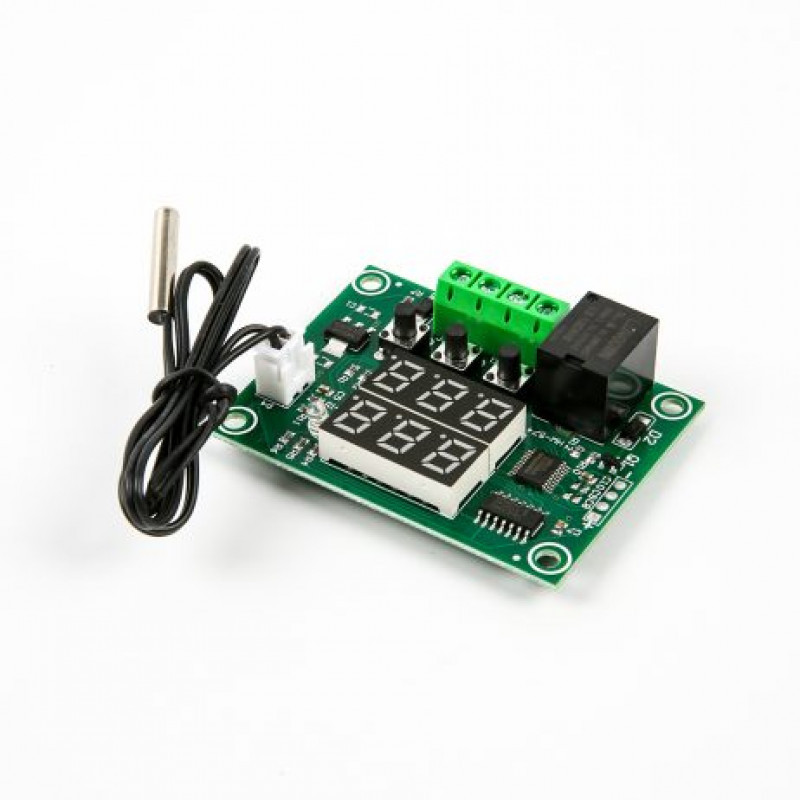

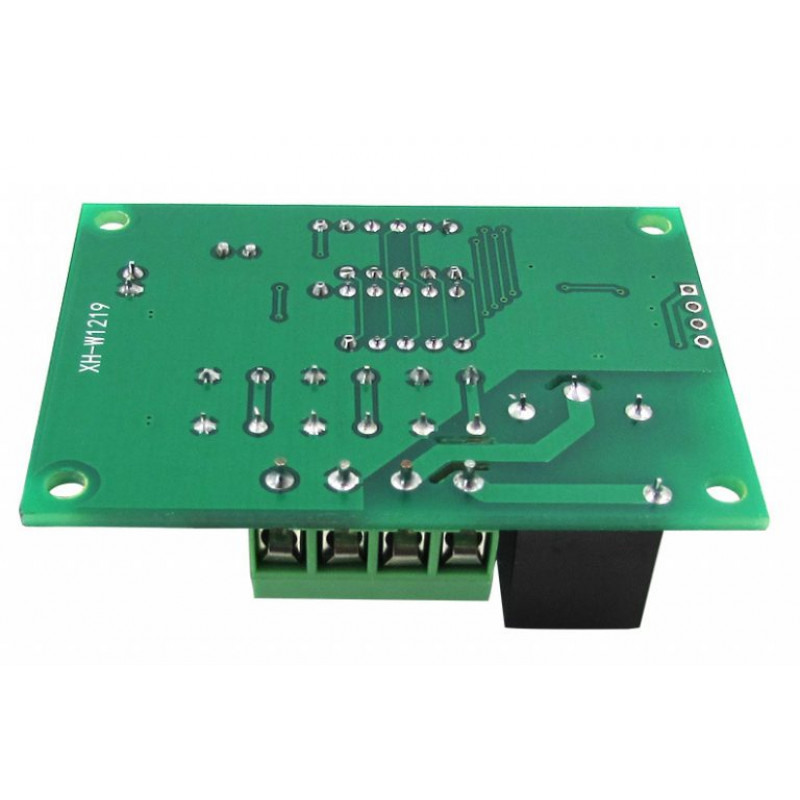

This is XH-W1219 12V Digital Red+Green Display Temperature Controller Module W/ NTC Waterproof Temperature Sensor. The XH-W1219 thermostat module with its C and I/O (sensor input, keys, double display, relay) can be re-programmed for automation tasks, and its easy to work with.

Digital thermostat module. The temperature controller/switch with waterproof NTC probe and integrated LED display in red and green.

Note: This board is Nuvoton based.


Button Functions :

P0(Temperature Control Mode)
When first use this product; if you are using it for heating, please set H, if using it for cooling, please set C

P1(Return Difference Setting)
Long press SET key entering into the internal setting, choose P1 setting; then press SET key to achieve return difference value setting

P2(Temperature Calibration)
This function is for temperature calibration. If detection temperature and the actual temperature is different, then users can apply this function to calibrate

P3(Delay Start)
This function is for compressor cooling

P4(Set High-Temperature Alarm Value)
When the actual temperature is higher than this value, the screen will flash and sound an alarm


Specifications:-

Model

XH-W1219

Control Range(C)

-50 to +110

Control Precision(C)

0.1

Measuring Input

NTC10K Sensor

High-Temperature Alarm(C)

-49 to +110

Input Voltage (V)

12

Output Type

Relay Output 10A (max)

Return Difference Setting(C)

0.1 to 30

Delay Starting(min)

0 to 10

Temperature Calibration(C)

-10 to 10

Length (mm)

60

Width (mm)

44

Height (mm)

17

Weight (gm)

22

Shipment Dimensions

7 6 2 cm


Package Includes :

1 x 12V Digital Red+Green Display Temperature Controller Module

1 xNTC Waterproof Temperature Sensor


Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 234.82 (Inclusive of all Taxes)
