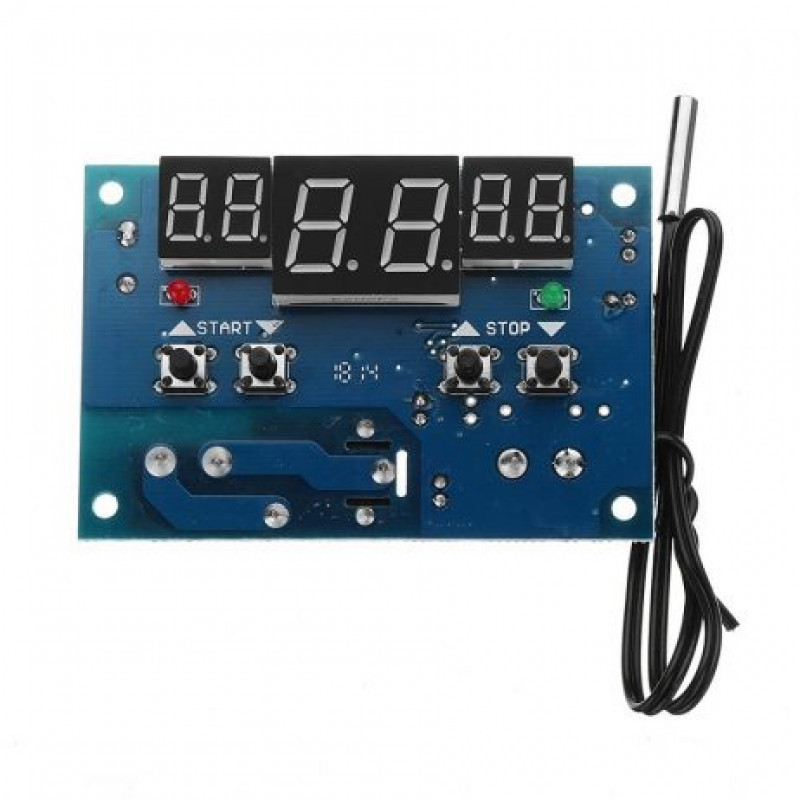

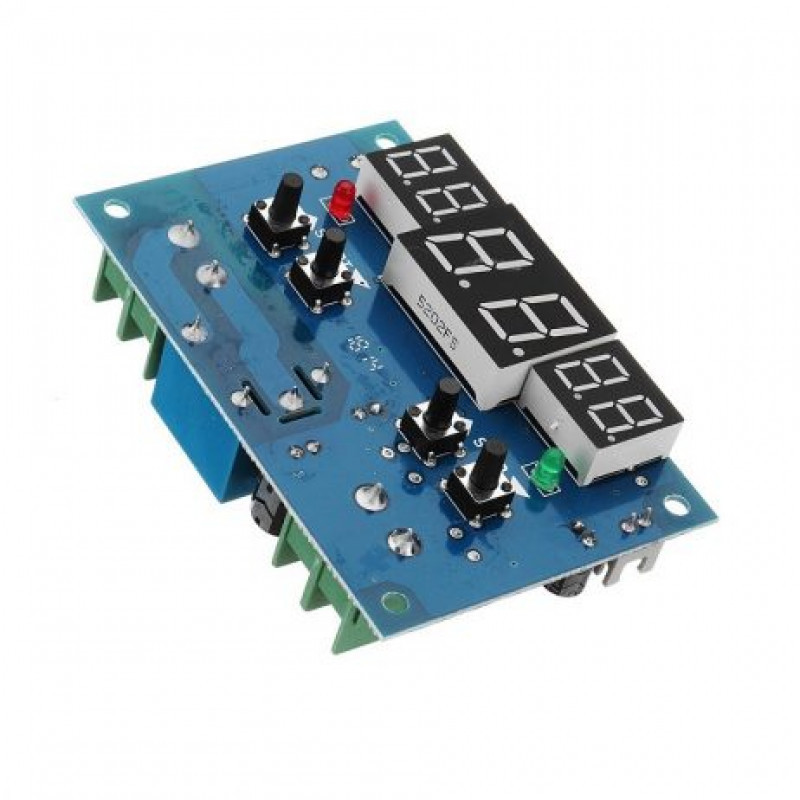

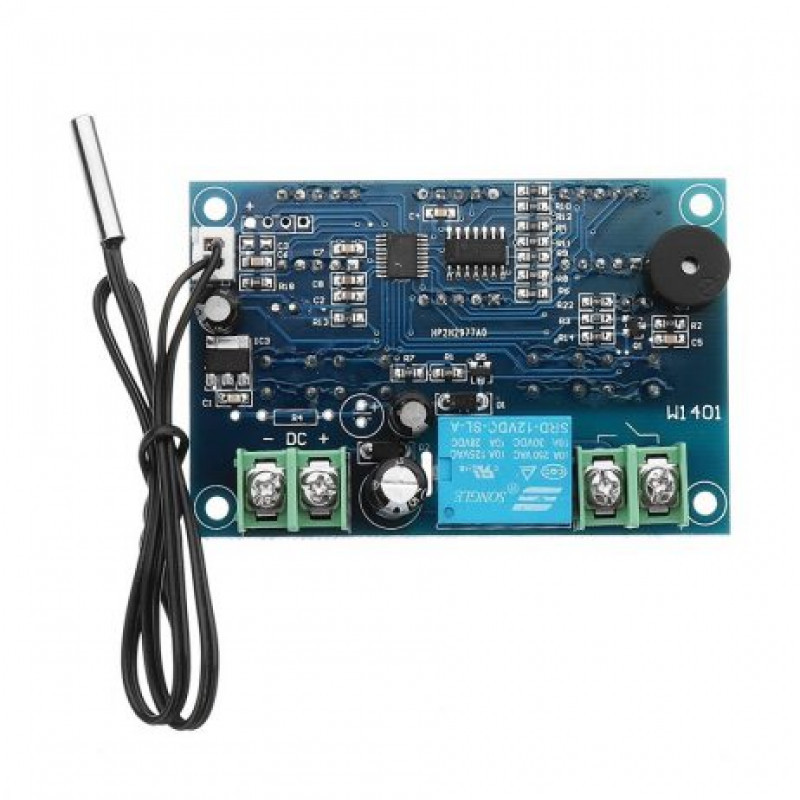

XH-W1401 DC12V Digital Thermostat Temperature Controller With NTC Sensor & LED Display is a dual temperature controlled thermostat. This module can control both heater and cooler and you can set it according to your application.
An NTC temperature sensor is provided for monitoring temperature from a range of -9 to 99. A relay is provided for AC or DC load control the relay can control up to 10 amperes. The module input voltage (supply voltage) is 12 volts DC.
Features:
- Imported High-Speed single-chip microcomputer.
- Three Display output status indicator.
- Automatically judge heating and cooling according to set temperature.
- Setting range is wide -9C~99C
- Used in various temperature control, water temperature control, incubators, etc.
Specifications:-
| Model | XH-W1401 |
| Thermostat Range | -9 to 99 |
| Supply Voltage (V) | 12V |
| Refresh Rate | 0.5 Sec |
| Length (mm) | 78 |
| Width (mm) | 51 |
| Weight (Kg) | 0.040 |
| Shipment Weight | 0.050 kg |
Package Includes:
1 x XH-W1401 DC12V Thermostat Intelligent Digital Thermostat Temperature Controller With Led Display

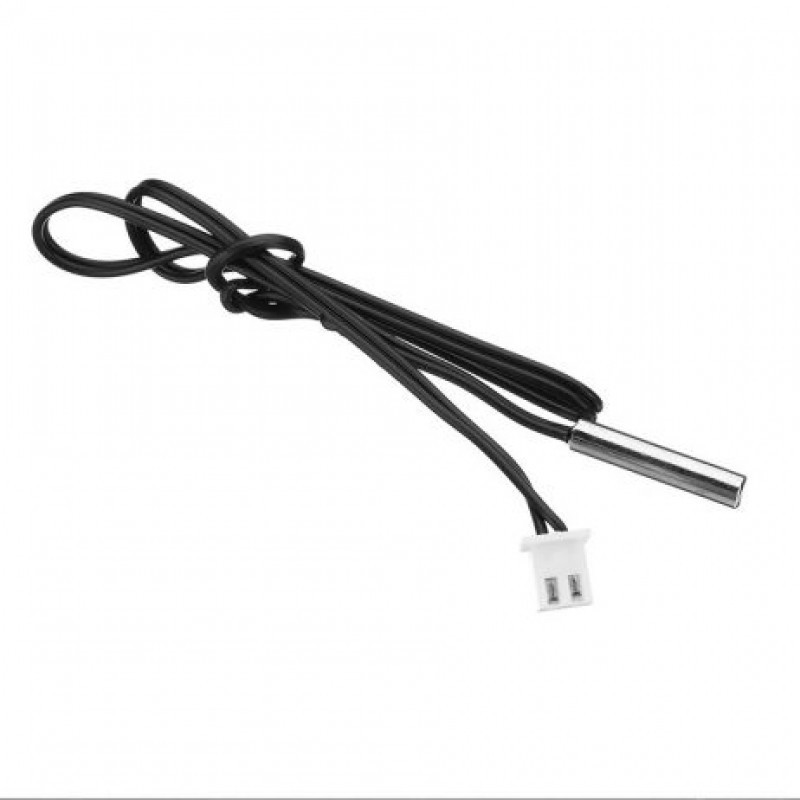

1 x NTC Temperature Sensor Probe
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 381.14 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
XH-W1401 12V DC Digital Thermostat Temperature Controller With NTC Sensor & LED Display
- Product Code: EC-4741
- Availability: 60
-
Rs.323.00
- (Excluding 18% GST)
