The DS1302 real-time clock (RTC) works very much like a watch. The RTC module accurately keeps time with a precise oscillator and is maintained with a small battery (not included). It is used to give an accurate date and time in many applications. The RTC module is ideal in any time-critical applications like attendance systems, digital cameras, automated sprinkler systems, or a time and calendar display.

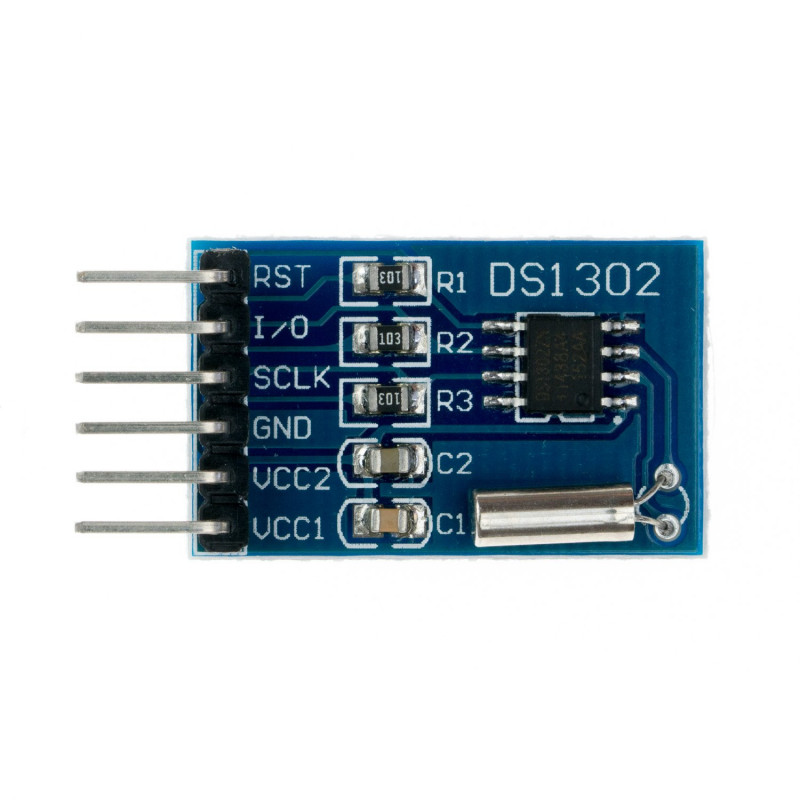

Pin configuration:

VCC2 +5 V/3.3V
GND GND
CLK P02
DAT P01
RST P00


Specifications:

  1. Crystal 32.768KHz, matching capacitance 6pF
  2. DS1302 8-pin SMD homemade chips
  3. Seconds, Minutes, Hours, Day of Month, Day of Week, and Year


Package Includes:

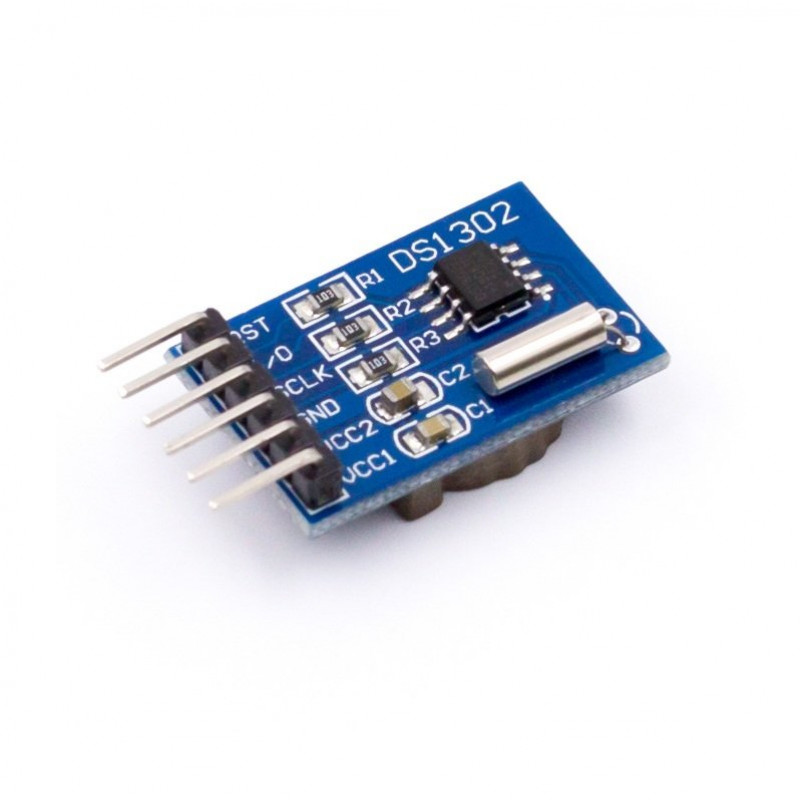

1 x DS1302 Real Time Clock RTC Module - Blue



Specifications:

Supply Voltage

2.0 5.5 V

Supply Current

< 300 nA @ 2.0 V

Interface Type

2 Wire Serial

Length (mm)

16.5

Width (mm)

26.3

Height (mm)

1.6

Weight (gm)

4




Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 73.16 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

DS1302 Real Time Clock RTC Module - Blue

  • Product Code: EC-6837
  • Availability: 68
  • Rs.62.00
  • (Excluding 18% GST)
