It is an Ingenex 3-24VDC 50V solid state relay 2A, output with resistance type fuse 50V 2A. The input control signal voltage for the relay module is: (the state of the 0-2.5V low-level relay OFF; the state of the 3-24V high-level relay ON).
It refers to a high-level trigger signal between the trigger terminal (IN) and the negative power supply forward voltage is usually triggered by the positive electrode and the power supply connected to a terminal Types of trigger mode, when the trigger end of the positive electrode voltage reaches the voltage or triggered, the relay is energized.
It has the blue KF301 terminal is connected to the line of control.
Specification:
- Operating Voltage (VDC): 3 ~ 24
- Supply Current (A): 2mA
- Switching Voltage (VAC):50@2A
- Operating Temperature (C): -40 to 85
- Opt. Relative Humidity(RH): 20% 85%
- Storage condition (): 65 to 125
- Length (mm): 34
- Width (mm): 26
- Height (mm): 22
- Weight (gm): 10
Package Includes:
1 x 1 Channel 3-24V Relay Module Solid State High-Level SSR DC Control DC with Resistive Fuse
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 282.02 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

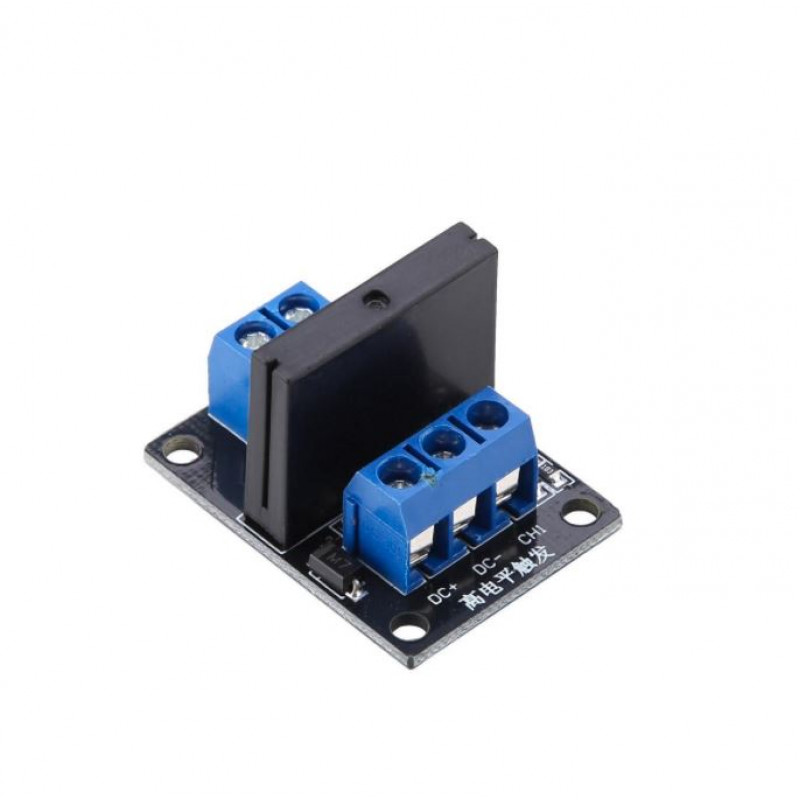

1 Channel 3-24V Relay Module Solid State High Level SSR DC Control DC with Resistive Fuse
- Product Code: EC-9198
- Availability: 38
-
Rs.247.00
- (Excluding 18% GST)
