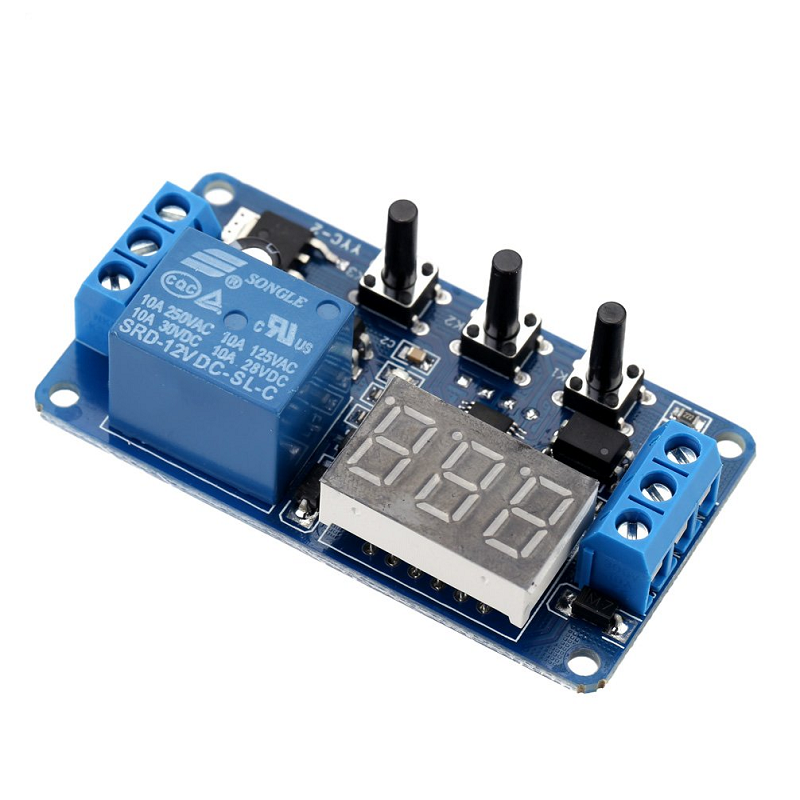

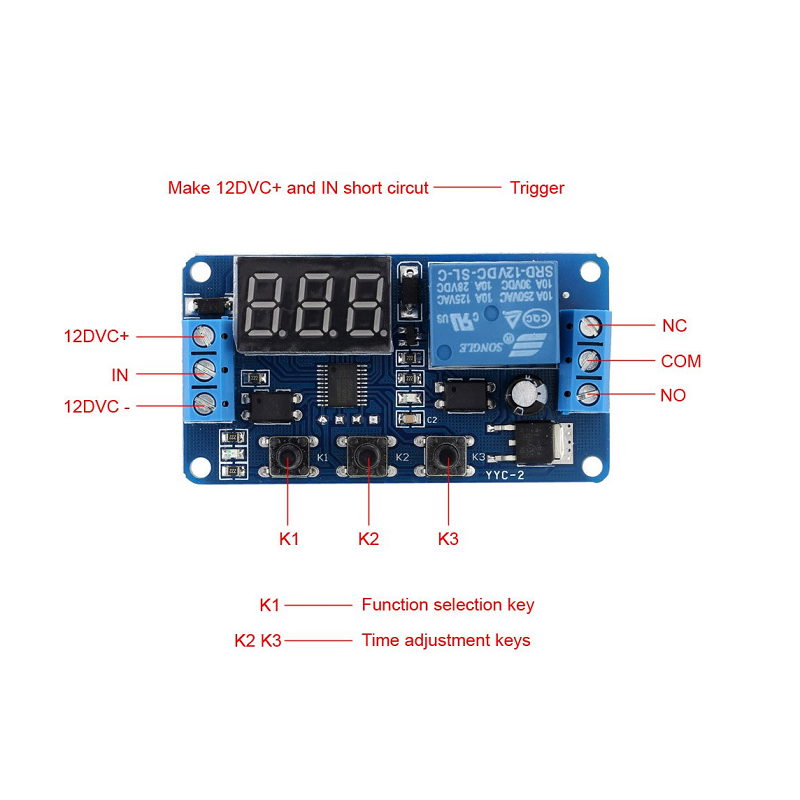

This is a relay module with an automatic delay timer. The module consists of a 12V relay along with a three-digit seven-segment display. The module is based on an N76E003AT20 microcontroller. The module has three buttons one to control the function and others to set the delay time.


Features:

  1. Increase the power supply anti-reverse function.
  2. The use of opto isolated input and output enhanced anti-jamming capability and consumption.
  3. The last setting parameters can be memorized after power off.
  4. A signal terminal voltage signal can be maintained for a long time.
  5. To ensure stability, industrial grade PCB board.

Package Includes:

1 x 12V Relay Module with Automatic Delay Timer



Specifications :-

Timing Range(Selectable)

0.1~99.9 seconds
1~999 seconds
1~999 minutes

Operating Voltage (VDC)

12

Signal Voltage

4 20VDC

Output Capacity

Can Control the Load within DC 30V 5A or AC 220V 5A

Static Current

20mA

Working Current

50mA

Operating Temperature (C)

-40 to 85

Length (mm)

68

Width (mm)

40

Height (mm)

25

Weight (gm)

44



Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 659.62 (Inclusive of all Taxes)
