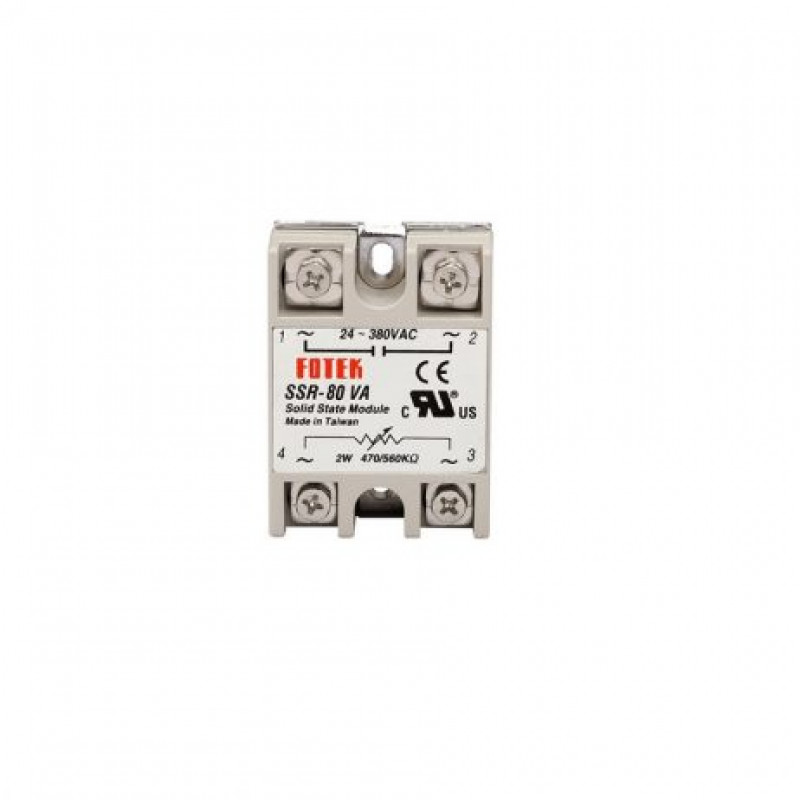

This is an SSR-80VA Solid State Relay Module 470-560K/24-380VAC 80VA. A solid-state relay (SSR) is an electronic switch, which, unlike an electromechanical relay, contains no moving parts. The types of SSR are photo-coupled SSR, transformer-coupled SSR, and hybrid SSR. A photo-coupled SSR is controlled by a low voltage signal which is isolated optically from the load.
The control signal in a photo-coupled SSR typically energizes an LED which activates a photo-sensitive diode. The diode turns on a back-to-back thyristor, silicon-controlled rectifier, or MOSFET transistor to switch the load.
In this Particular SSR, the power output is controlled by the trigger angle of the triac with the variable resistor of 470-560K. Each one of these relays is equipped with four screw terminals (for use with ring or fork connectors) and a plastic cover that slides over the top of the relay to protect the terminals.
Features:
- Long service life and high reliability
- Reduced electromagnetic interference
- Highly reliable, compact size designed to offer users maximum simplicity.
Specifications:
- Dielectric Strength: Over 2.5kVA / 1 min
- Trigger resistance: 470-560K
- Switching Voltage (VAC):24-380
- Operating Temperature Range (C):-20 to 85
- Material: ABS
- Length (mm):45.5
- Width (mm):62.5
- Height (mm):24
- Weight (gm):93
Package Includes:
1 x 24-380V SSR-80VA Solid State Voltage Regulator
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 754.02 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
24-380V SSR-80VA Solid State Voltage Regulator
- Product Code: EC-9263
- Availability: Out Of Stock
-
Rs.639.00
- (Excluding 18% GST)
