It is a 6 Channel 5V Relay Module with Optocoupler. The relay normally open interface maximum load: AC 250V/10A, DC 30V/10A.With optocoupler isolation, strong drive capability, stable performance; trigger current 5mA, module working voltage: DC 5V.Each channel of the module can be triggered by a jumper to set a high level or a low level. Fault-tolerant design, even if the control line is disconnected, the relay will not move. With status indicator: power (green), 6-channel relay status indicator (red).All module size interfaces can be directly connected through the terminal block, which is convenient and practical.
Features:
- 6-way relay output module contact capacity is 10A 250V.
- input IN1, IN2, IN3, IN4, IN5, IN6 signal, a low level is effective.
- Using single-chip design, reliable performance, strong anti-interference, no false triggering, superior performance.
- The trigger terminal has optocoupler isolation, the independent external power supply can trigger completely isolated.
- Each relay has an activity indicator light. With 4 fixed bolt holes, easy installation.
- Support all SCM control. It is applicable to the industrial sector, PLC control and home intelligent control.
Package Includes:
1 x 6 Channel 5V Relay Module with Optocoupler
Specifications :-
| Operating Voltage (VDC) | 3.3 ~ 5 |
| Supply Current (A) | 20mA |
| Trigger Voltage (VDC) | 5 |
| Switching Voltage (VAC) | 250@10A |
| Switching Voltage (VDC) | 30@10A |
| Operating Temperature (C) | -40 to 85 |
| Storage condition () | 65 to 125 |
| Length (mm) | 104 |
| Width (mm) | 53 |
| Height (mm) | 17 |
| Weight (gm) | 78 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
* Product Images are shown for illustrative purposes only and may differ from actual product.

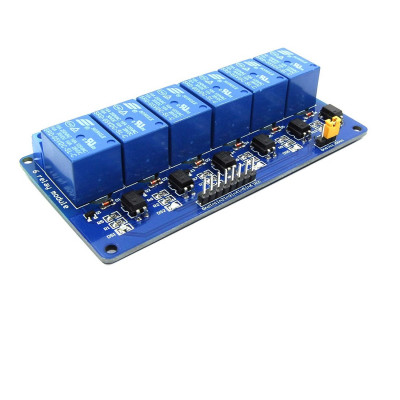

6 Channel 5V Relay Module with Optocoupler
- Product Code: EC-6602
- Availability: 20
-
Rs.387.04
