The PN532 is a highly integrated transmission module for contactless communication at 13.56 MHz including microcontroller functionality based on an 80C51 core with 40 Kbytes of ROM and 1 Kbytes of RAM. The PN532 combines a modulation and demodulation concept completely integrated for different kinds of contactless communication methods and protocols at 13.56 MHz with an easy-to-use firmware for the different supported modes and the required host controller interfaces.

It works as RFID reader/writer,1443-A card or a virtual card and also supports NFC with Android phone. It is also compatible with Arduino.


Features:

  1. Support II2, SPI and HSU (High-Speed UART)
  2. I2C / UART: 3.3V ~ 24V TTL
  3. SPI: 3.3V TTL with 100-ohm resistors in series
  4. Communication distance: 5cm~7cm
  5. On-board level shifter, Standard 5V TTL for I2C and UART, 3.3V TTL SPI
  6. Work in NFC Mode or RFID reader/writer Mode
  7. RFID reader/writer supports:
  8. Plug and play, compatible
  9. Built-in PCB Antenna, with 4cm~6cm communication distance
  10. On-board level shifter, Standard 5V TTL for I2C and UART, 3.3V TTL SPI
  11. Work as an RFID reader/writer
  12. Work as a 1443-A card or a virtual card
  13. Exchange data with other NFC devices such as a smartphone

Package Includes:

1 x PN532 NFC RFID Wireless Module V3


Additional information

Operating Voltage

3.3V ~ 5V

Supporting Protocols

II2, SPI and HSU (High-Speed UART)
I2C / UART: 3.3V ~ 24V TTL
SPI: 3.3V TTL with 100-ohm resistors in series

Communication distance

5cm~7cm

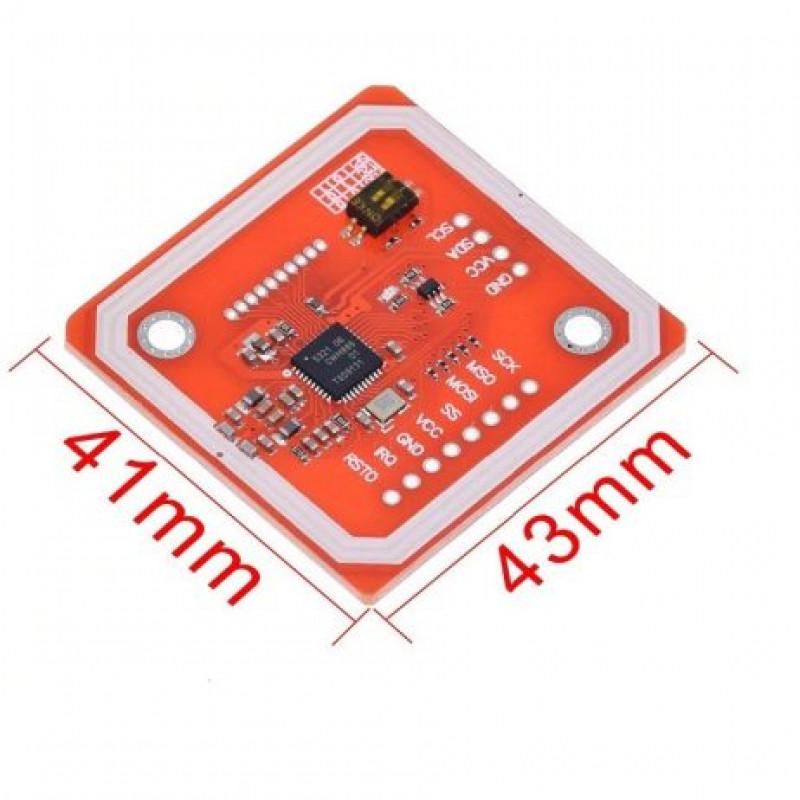

Module Size

42.7 x 40.4 x 4 mm (LxWxH)

Shipment Weight

0.1 kg


Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 411.82 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

PN532 NFC RFID Read / Write Module V3 Kit

  • Product Code: EC-4727
  • Availability: 64
  • Rs.349.00
  • (Excluding 18% GST)
