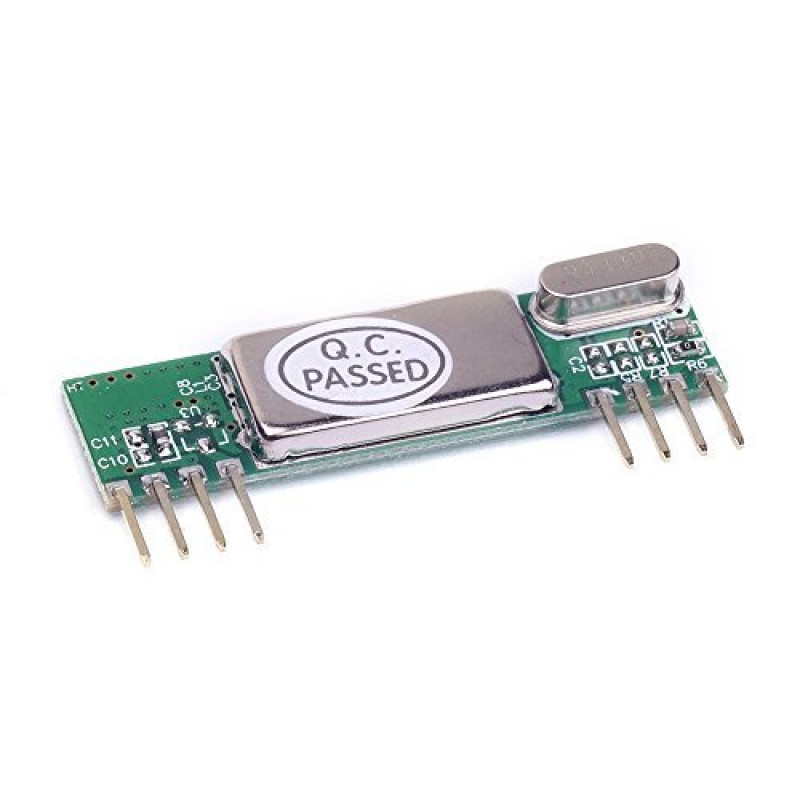

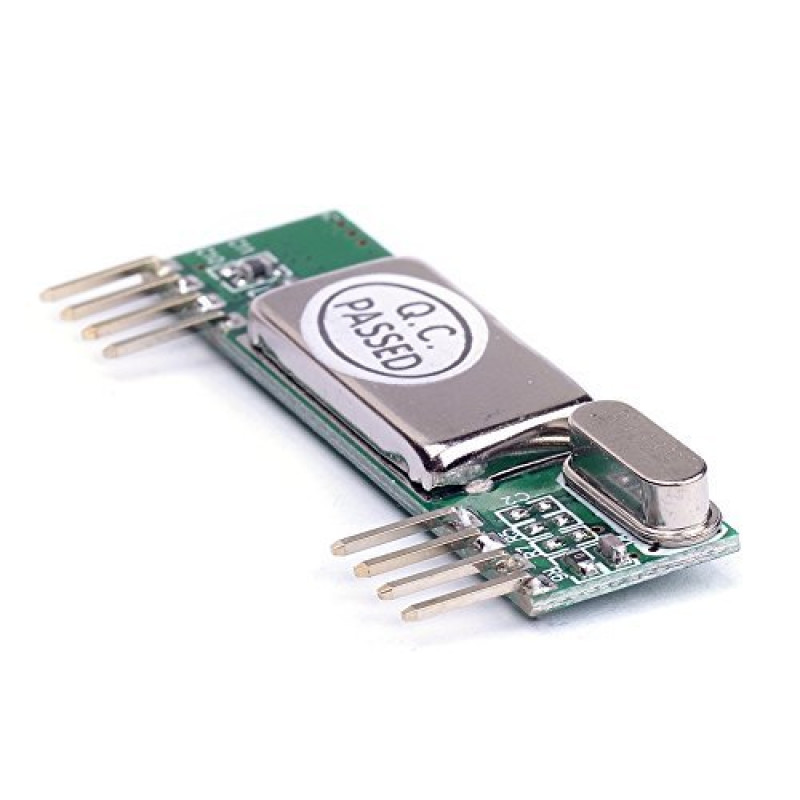

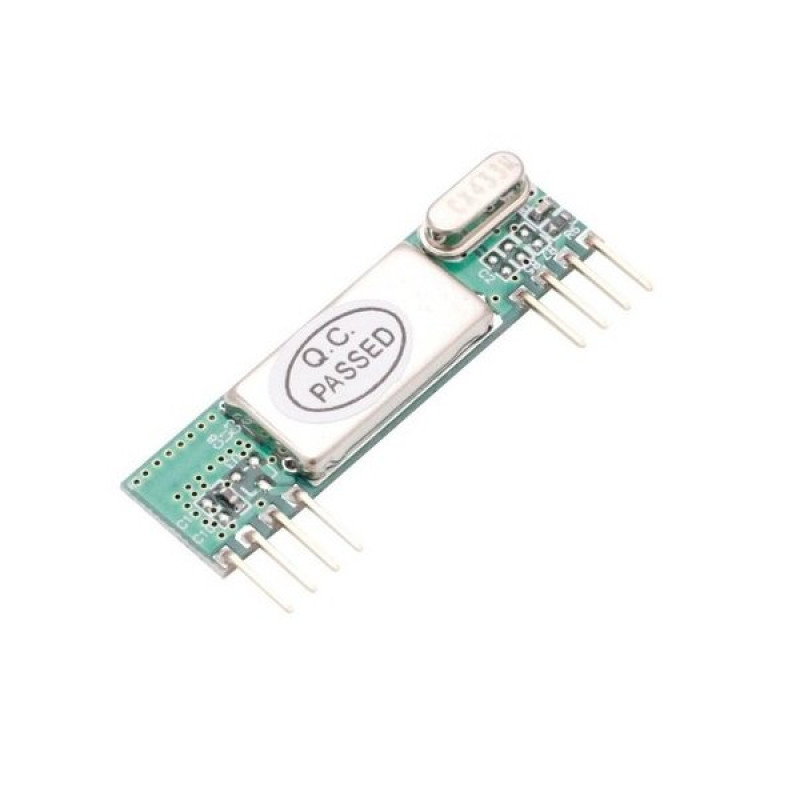

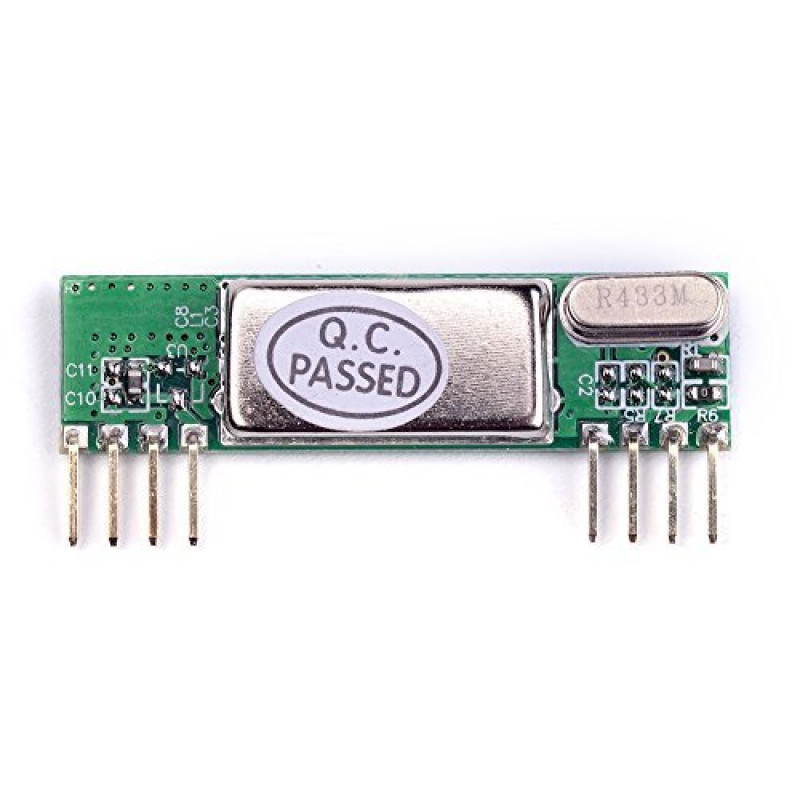

RXB6 433Mhz Superheterodyne Wireless Receiver Module work with our 434MHz transmitters. They can easily fit into a breadboard and work well with microcontrollers to create a very simple wireless data link. Since these are only receivers, they will only work communicating data one-way, you would need two pairs (of different frequencies) to act as a transmitter/receiver pair.


Applications:
  1. Car remote door switch (RKE);
  2. Remote control door opener;
  3. Wireless security alarm;
  4. Remote control curtains;
  5. The wireless industrial controller;
  6. A wireless data transmission.

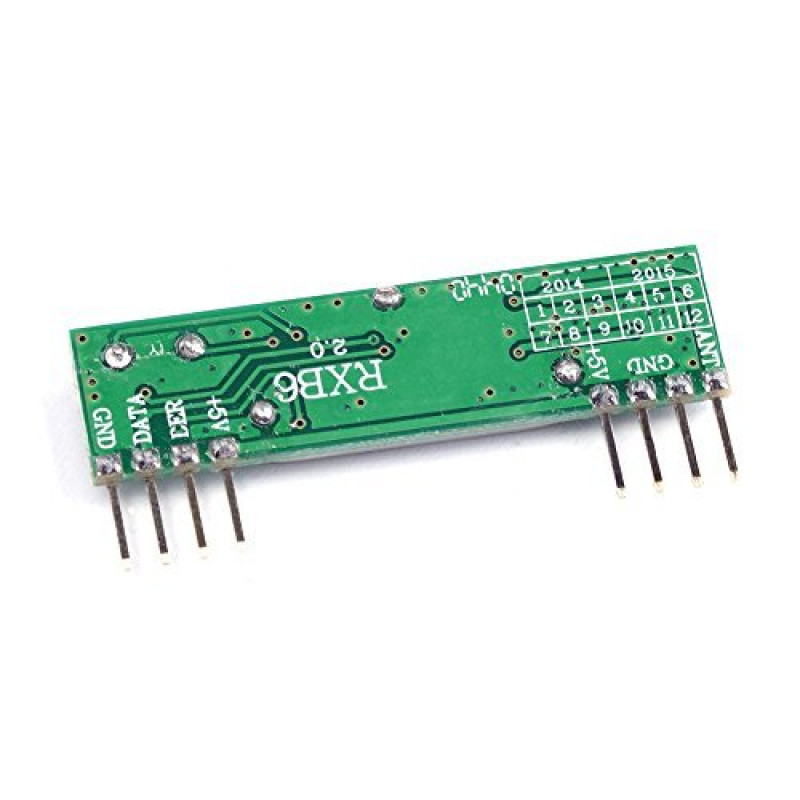

Pin Configuration:




Features:

  1. Power Enable mode power consumption can be done lowest 50nA;
  2. has an analog RSSI signal strength level output;
  3. Good selectivity and spurious radiation suppression, and easy through CE / Fcc international certification;
  4. Good local oscillator radiation suppression, multiple receiver modules to work together (ie, more than single income) and will not interfere with each other, used together does not affect the receiving distance.
  5. Temperature range: -40-85 can work even in harsh ambient temperature.


Package Includes:

1 xRXB6 433Mhz Superheterodyne Wireless Receiver Module.


Specifications :-

Power supply voltage

3 5.5V

Operating frequency

433.92 MHz

Operating Temperature range (C)

-40 ~ +85

Power Consumption

3.3V @ 433.92MHz, 6.0mA

Receiver Sensitivity Reach

-116dBm

Length (mm)

43

Width (mm)

17

Height (mm)

4

Weight(gm)

3


Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 174.64 (Inclusive of all Taxes)
