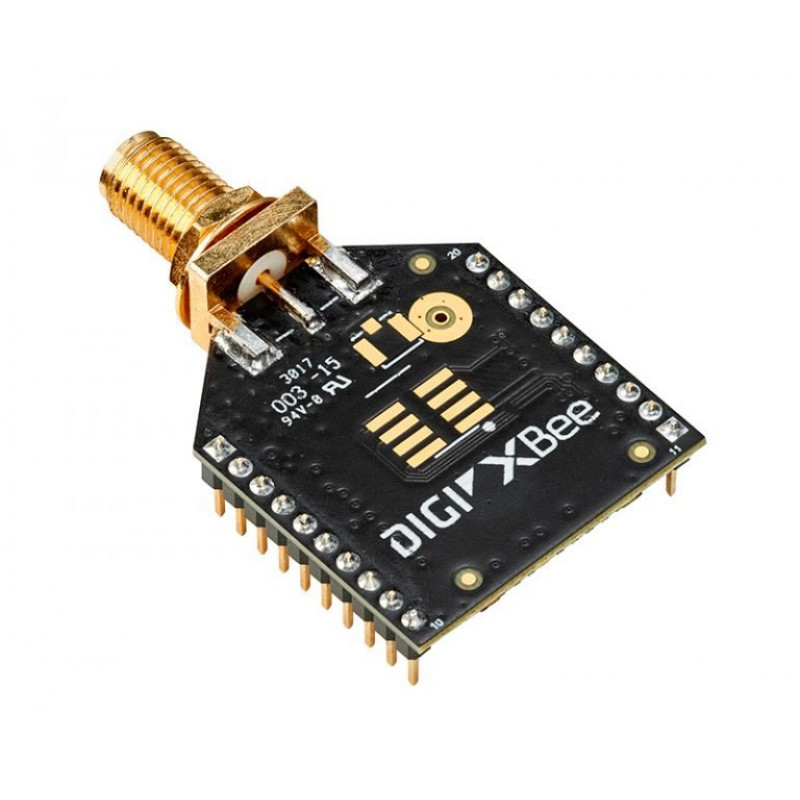

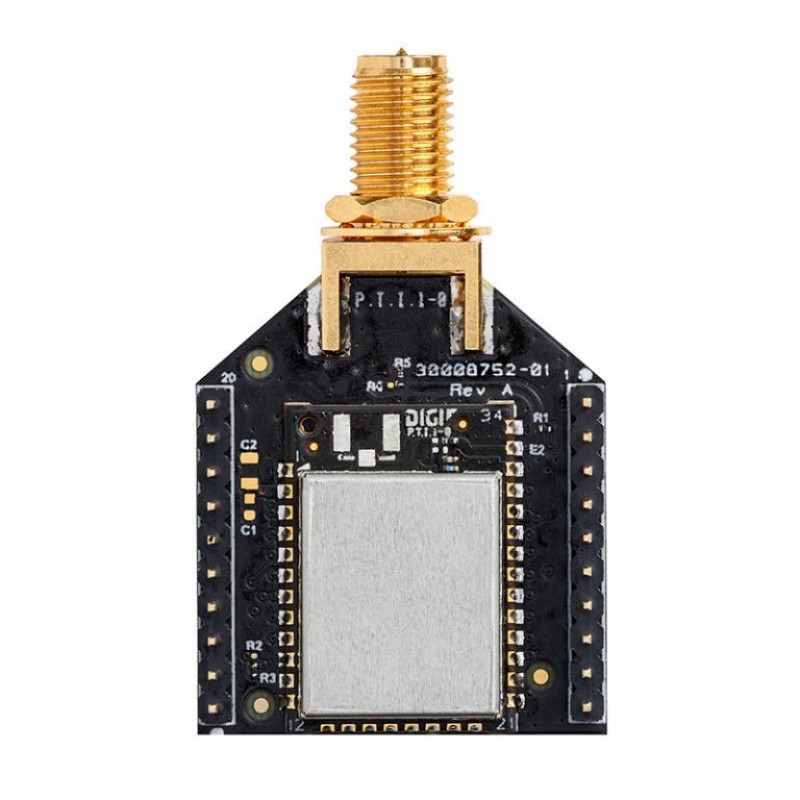

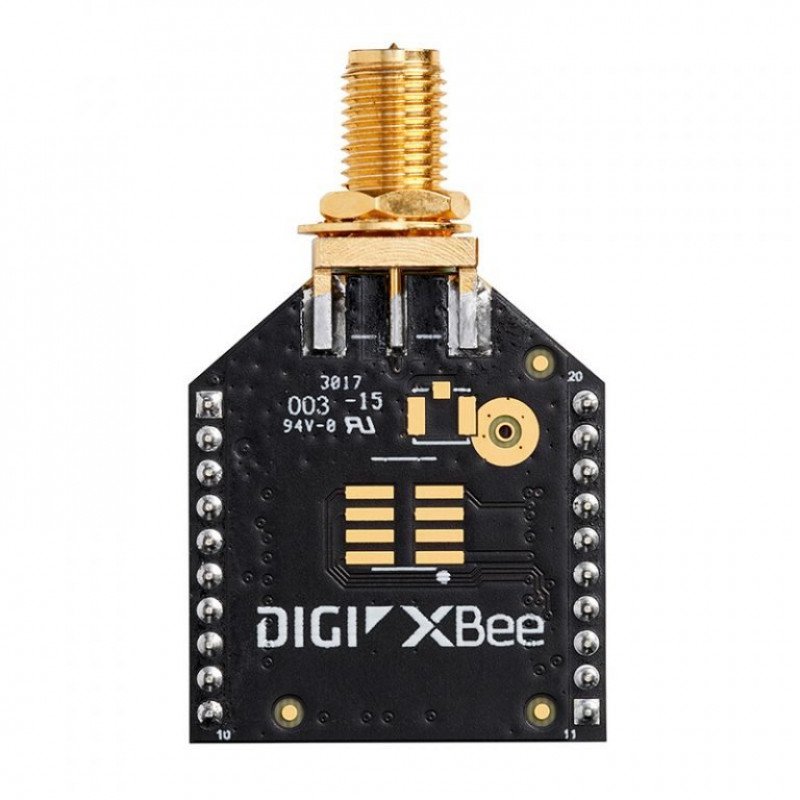

The Digi XBee3 2.4GHz ZB3.0 RP-SMA Female Antenna, Digi XBee3 modules accelerate time to market for designers, OEMs, and solution providers by quickly enabling wireless connectivity and easy-to-add functionality. Building on industry-leading technology, pre-certified Digi XBee3 modules offer the flexibility to switch between multiple frequencies and wireless protocols as needed.

Digi XBee3 2.4GHz ZB3.0 RP-SMA Female Antenna offers a fully interoperable ecosystem covering all vertical markets including building automation, smart energy, digital health, intelligent lighting, and others. With Digi Remote Manager, Digi XBee3 modules can be easily configured and controlled from a simple, central platform.

Built-in Digi TrustFence security, identity, anddata privacy features use more than 175 controls to protect against new and evolving cyber threats. MicroPython and XCTU software tools simplify adding functionality, configuration, and testing.

The difference between XBee and XBee Pro is:

  1. XBee-PRO TH modules are slightly longer than regular XBees (except for TH XBee3 modules).
  2. XBee-PRO modules typically use more power.
  3. The XBee-PRO has a longer range than the XBee.
  4. The XBee-PRO typically has a higher MSRP.

Key Features :

SIZE AND FLEXIBILITY:
At 13 mm x 19 mm, the new Digi XBee3 micro form factor allows for more compact and portable applications Digi XBee3 is one module for all protocols including ZigBee, 802.15.4, DigiMesh and BLE, all configurable via Digi XCTU


PROGRAMMABILITY:
Eliminate the need for an external microcontroller and create smart end nodes and low-end gateways using Micro Python


SECURITY:
Intrinsic IoT security with Digi TrustFence, a layered approach securing the edge device, through the gateway, into and out of the IoT


Features:

  1. Serial Data Interface: Uart, Spi, I2c
  2. Configuration Method:API Or At Commands, Local Or Over-the-air (Ota)
  3. Frequency Band: ISM 2.4 GHz
  4. Form Factor: Micro, Through-hole, Surface Mount
  5. Interference: Immunity Dsss (Direct Sequence Spread Spectrum)
  6. Adc Inputs: (4) 10-bit Adc Inputs
  7. Digital I/o: 15
  8. Antenna Options:
    1. Through-hole: Pcb Antenna, U.fl Connector, RP-SMA Female Connector
    2. Smt: Rf Pad, Pcb Antenna, Or U.fl Connector
    3. Micro: U.fl Antenna, Rf Pad, Chip Antenna
  9. Operating Temperature -40 C To +85 C


Package Includes:

1 x Digi XBee3 2.4 GHz ZB 3.0 RP-SMA Female Antenna.


Specifications :-

TRANSCEIVER CHIPSET

Silicon Labs EFR32MG SoC

DIGI XBEE PART NUMBER

XB3-24Z8ST-J

DATA RATE

RF 250 Kbps, Serial up to 1 Mbps

RATED INDOOR/URBAN RANGE

Up to 200 ft (60 m)

RATED OUTDOOR/RF LINE-OF-SIGHT RANGE

Up to 4000 ft (1200 m)

RECEIVER SENSITIVITY (1% PER)

-103 dBm Normal Mode

TRANSMIT POWER

+8 dBm

SUPPLY VOLTAGE

2.1 to 3.6V

TRANSMIT CURRENT

40 mA @ 8 dBm 135 mA @ 19 dBm

RECEIVE CURRENT

15 mA

POWER-DOWN CURRENT

1.7 microAmp @ 25 degrees C

MEMORY

1 MB / 128 KB RAM

CPU/CLOCK SPEED

HCS08 / up to 50.33 MHz

PROTOCOL

ZigBee 3.0

ENCRYPTION

128/256 bit AES

RELIABLE PACKET DELIVERY

Retries/Acknowledgements

IDS

PAN ID and Addresses, cluster IDs and endpoints (optional)

CHANNELS

16 channel


Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 2460.3 (Inclusive of all Taxes)
