This is Zigbee XBee Pro S2C 802.15.4 Module 63mW 3Km. The XBee and XBee-PRO ZigBee RF modules provide cost-effective wireless connectivity to electronic devices. They are interoperable with other ZigBee PRO feature set devices, including devices from other vendors.
The XBee802.15.4 products enable robust end-point connectivity with ease. Whether deployed as a pure cable replacement for simple serial XBEE S2C 802.15.4 RF MODULES communication, or as part of a more complex hub-and-spoke network ofsensors, XBee 802.15.4 RF modules maximize performance and ease of development.
XBee and XBee-PRO ZigBee modules are ideal for hobbyists and educational research as well as applications in the energy and controls markets where manufacturing efficiencies are critical. The Serial Peripheral Interface (SPI) provides a high-speed interface and optimizes the integration with embedded microcontrollers, lowering development costs and reducing time to market.
Digis ZigBee compatible module is based on the Ember EM35x (EM357 and EM3587) system on chip (SoC) radio ICs from SiliconLabs, utilizing 32-bit ARM CortexTM M3 processor.
IMPORTANT!!!
Because XBee modules have 2 mm pin spacing, we recommend one of the adapter boards for each module. The XBee adapter boards provide several advantages to theXBee modulessuch as breadboard-friendly standard 0.1-inch pin spacing, mounting holes, and easy-to-solder connections. Even if you are communicating point-to-point without a PC, we still recommend that you always have at least one XBee USB Adapter Board, so you can easily configure and test each XBee module prior to putting it in a point-to-point application.
Application :
- Remote industrial control and monitoring
- Long-range remote control
- Wireless data acquisition
- Wireless networking
Features:
- Supports binding and multicasting for home automation
- Mesh-network topology
- 2.4 GHz for worldwide deployment
- Common XBee footprint fits Parallax XBee Adapters and the Propeller Activity Board
- Industry-leading sleep current of sub 1 A
- Firmware upgrades via UART, SPI or over the air
Package Includes:
1 x Zigbee XBee Pro S2C Module
Specifications :-
| Brand | Digi |
| Model | S2C PRO |
| TRANSCEIVER CHIPSET | SiliconLabs EM357 SoC |
| DATA RATE | 250kbps Max |
| RATED OUTDOOR/RF LINE-OF-SIGHT RANGE | Up to 2 miles (3200m) |
| Frequency Range | 2.4GHz |
| Sensitivity (dBm) | -101 |
| Input Supply Voltage (VDC) | 2.7 ~ 3.6 |
| TRANSMIT CURRENT | 120 mA |
| RECEIVE CURRENT | 31 mA |
| Output Power | 63mW |
| Operating Temperature (C) | -40 to 90 |
| Antenna Connector | RP-SMA |
| Interface Type | SPI, UART |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
* Product Images are shown for illustrative purposes only and may differ from actual product.

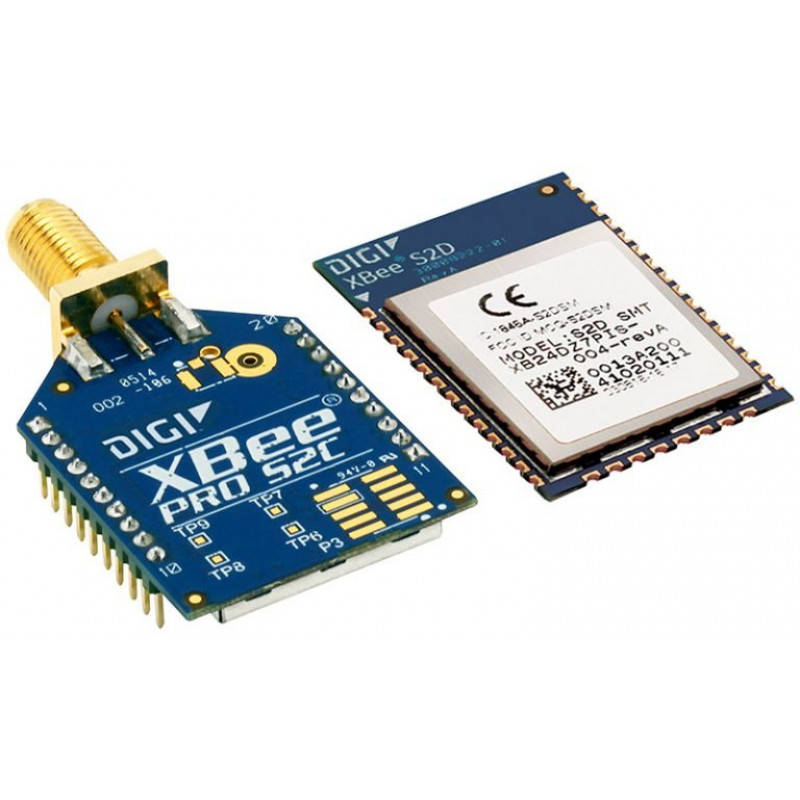

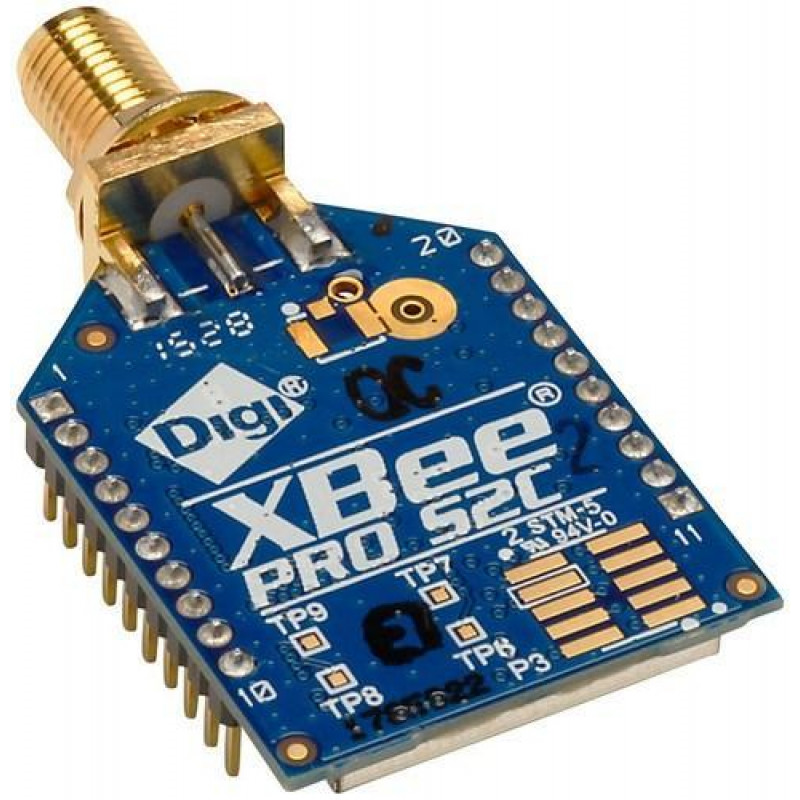

XBee Pro S2C 63mW 802.15.4 Module without Antenna
- Product Code: EC-5265
- Availability: Out Of Stock
-
Rs.2581.84
