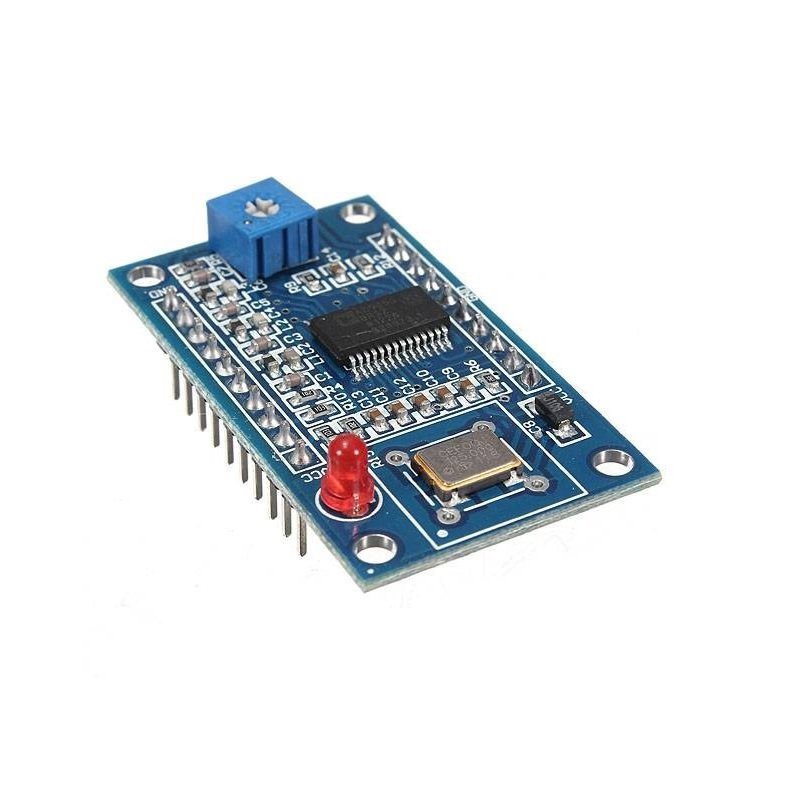

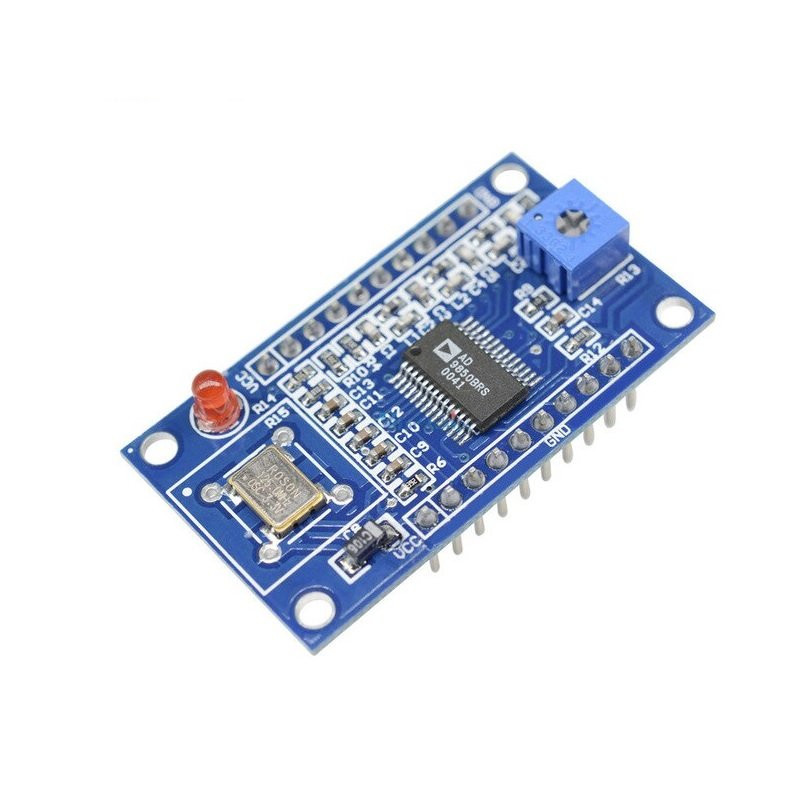

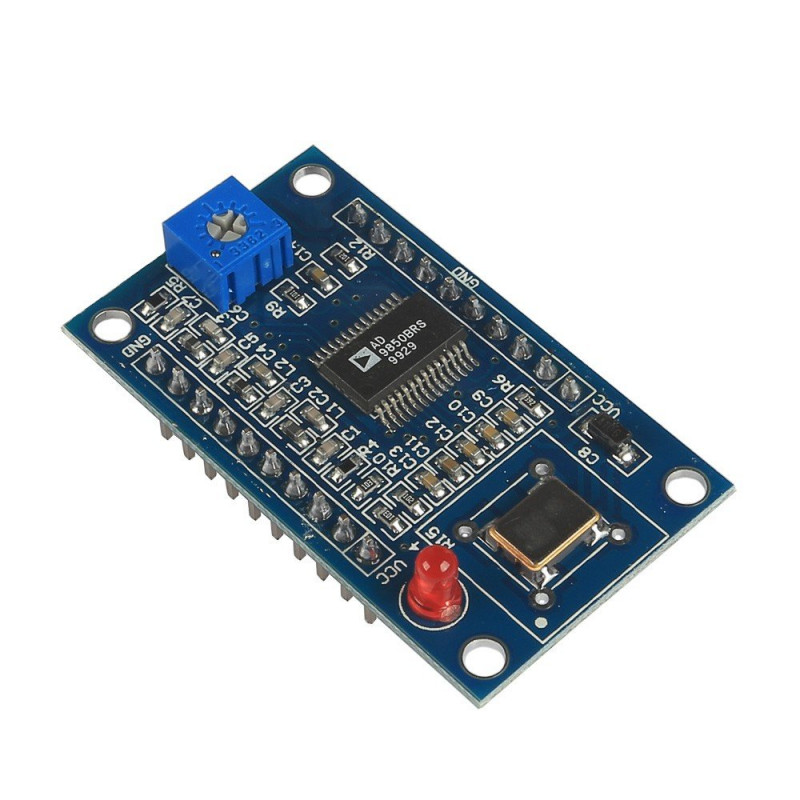

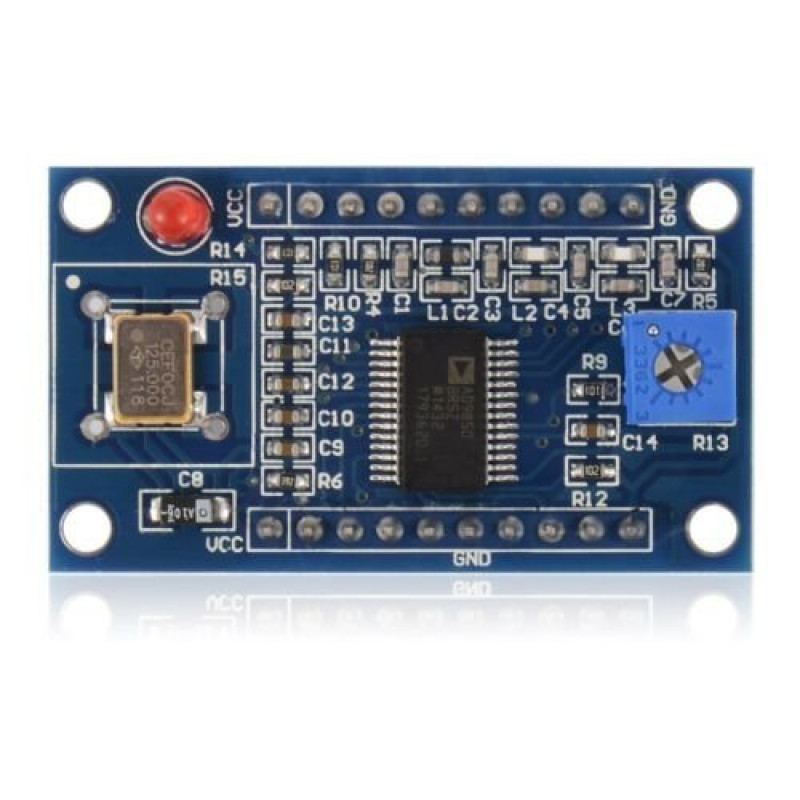

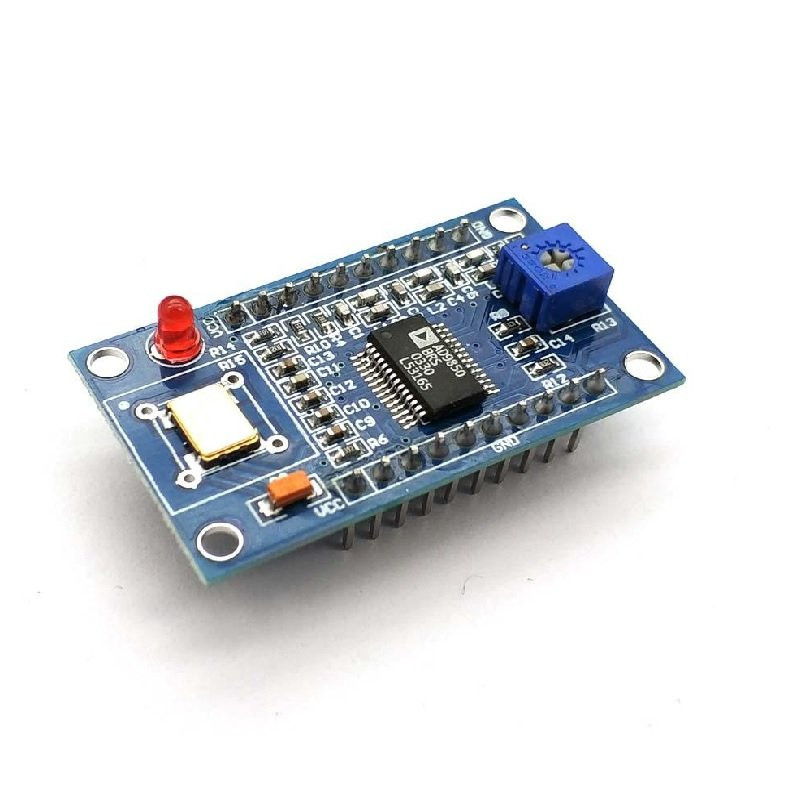

AD9850 DDS Signal Generator Module 0-40MHz IC Test Equipment signal generator It can be used to generate Square Wave of 0-1MHz. AD9850 to: 0-40MHz AD9851: 0-70MHz.
The Module has a small compact Size of approx. 4.5 x 2.6 x 1.7 cm. The module can output sine wave, square wave, two sine wave, and two square-wave output. Frequency harmonics in the 20-30MHz, the waveform will be less and less clean. 70MHz low-pass filter, waveform SN than better Generate DA benchmark the pin (PIN12) leads; convenient to adjust the application to do the amplitude of the output waveform.
When the frequency after 20-30Mhz, Harmonic is getting bigger and bigger; The waveform will become increasingly unclean. The 70-MHz low-pass filter makes the SN ratio of the waveform better. The comparator reference input voltage is generated by the variable resistor, adjust the resistance can be different duty cycle square wave
Comparator reference input voltage generated by the variable resistor to adjust the resistance can be a different duty cycle square wave AD9850 to the module using 125MHz active crystal, the AD9851 module 30MHZ the active crystal.
Specifications and Features:
- 2 sine wave and 2 square wave output.
- AD9850: 0-40MHz.
- After the 20-30MHz frequency harmonics increases, the waveform will be less and less clean.
- Low-pass filter with 70MHz, so the waveform better than SN.
- Parallel and serial data input we can select via a jumper.
- DA produced the benchmark pin (PIN12) leads for easy adjustment to do the magnitude of the output waveform Application.
- Comparator reference input voltage generated by the variable resistor; using resistor we can adjust the duty cycle of a square wave.
Useful Links:
Package Includes:
1 xAD9850 DDS Signal Generator Module
Specifications :-
| Input Supply Voltage (VDC) | 6 |
| Operating Voltage (VDC) | 3.3 ~ 5 |
| Output Frequency Range | 0 40MHz |
| Digital Output Continuous Current (A) | 0.005 |
| DAC Output Current (A) | 0.03 |
| Storage condition () | -40 to 80 |
| Operating Temperature Range (C) | -40 to 85 |
| Length (mm) | 50 |
| Width (mm) | 30 |
| Height (mm) | 20 |
| Weight (gm) | 4 |
| Shipment Weight | 0.005 kg |
| Shipment Dimensions | 4 3 1 cm |
| Brand/Manufacturer | |
| Country Of Origin | |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 1563.5 (Inclusive of all Taxes) |
