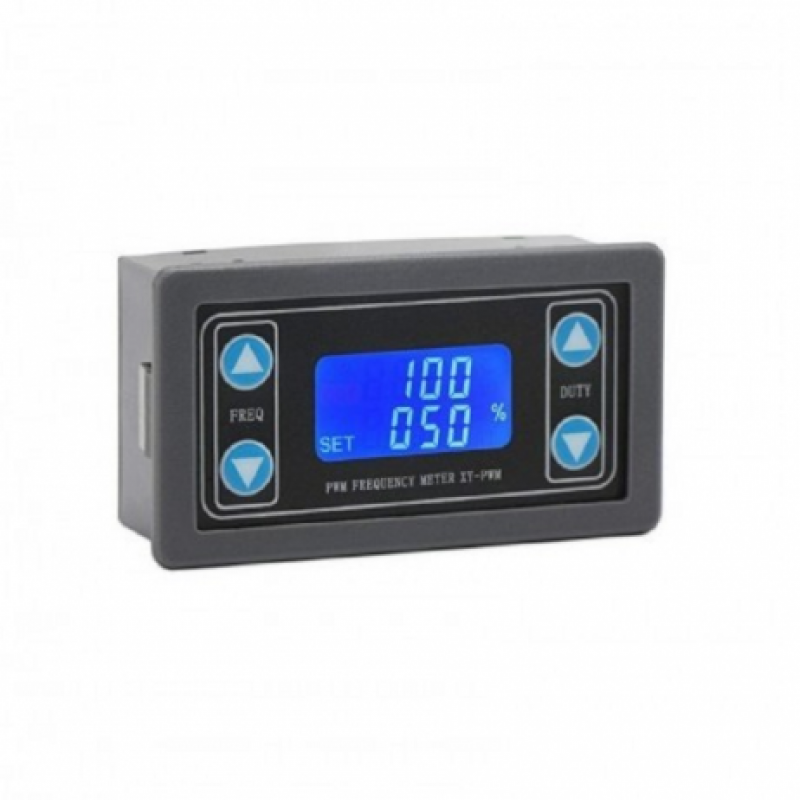

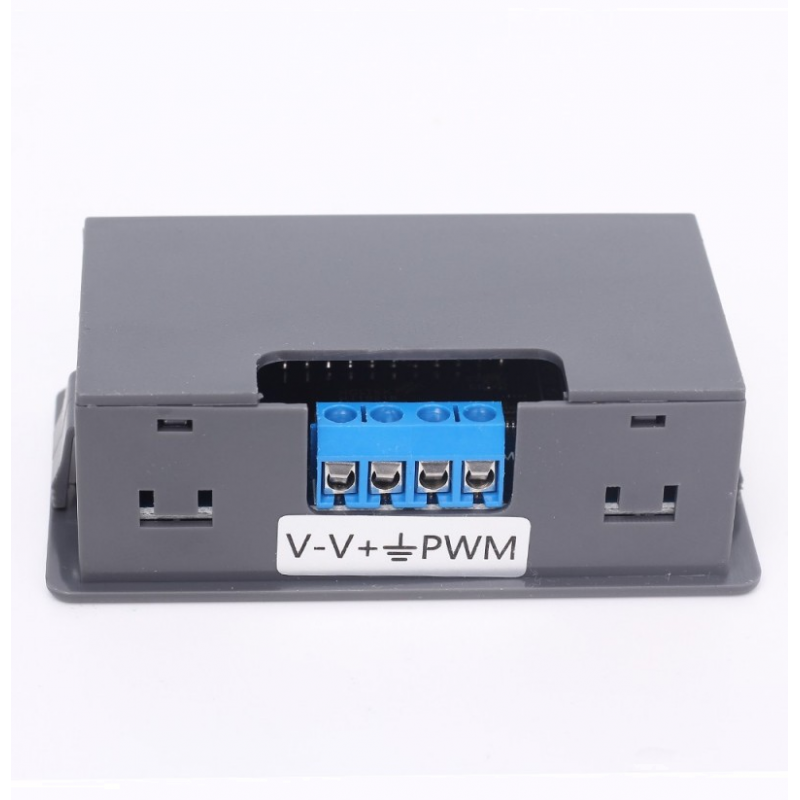

This is a PWM generator, which is housed in a protective shell. It can generate a PWM frequency from 1Hz to 150KHz. This device can be used where an accurate and reliable source of PWM is required.
Features:
- Bright LCD Display
- Supports UART
- Adjustable Frequency Output
- High Accuracy Detection
- Supporting Power-OFF Memory Function
- Supports Duty Cycle Adjustment
Package Includes:
1 x Digital PWM Generator with Display
Specifications :-
| Model | XY-PWM |
| Microcontroller IC | N76E003AT20 |
| Operating Voltage (VDC) | 3.3 ~ 30 |
| Frequency Range | 1Hz~150KHz |
| Frequency Accuracy | 2% |
| Signal Load Capacity | output current can be around 5~30ma |
| Output Amplitude | PWM amplitude is equal to supply voltage |
| Operating Temperature (C) | -20 to 70 |
| Length (mm) | 79 |
| Width (mm) | 43 |
| Height (mm) | 27 |
| Weight (gm) | 36 |
| Shipment Weight | 0.039 kg |
| Shipment Dimensions | 8 5 3 cm |
| Brand/Manufacturer | |
| Country Of Origin | |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 600.62 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Digital PWM Generator with Display
- Product Code: EC-7607
- Availability: 14
-
Rs.509.00
- (Excluding 18% GST)
