The AD9833 is a low power, programmable waveform generator capable of producing sine, triangular, and square wave outputs. Waveform generation is required in various types of sensing, actuation, and time domain reflectometry (TDR) applications. The output frequency and phase are software programmable, allowing easy tuning. No external components are needed.

The AD9833 has a standard serial interface that allows the part to interface directly with several microprocessors. The device uses an external serial clock to write the data or control information into the device.

The AD9833 is written to via a 3-wire serial interface. This serial interface operates at clock rates up to 40 MHz and is compatible with DSP and microcontroller standards. The device operates with a power supply from 2.3 V to 5.5 V.

The AD9833 has a power-down function (SLEEP). This allows sections of the device that are not being used to be powered down, thus minimizing the current consumption of the part, e.g., the DAC can be powered down when a clock output is being generated.


Features:

  1. Digitally programmable frequency and phase
  2. 12.65 mW power consumption at 3 V
  3. 0 MHz to 12.5 MHz output frequency range
  4. 28-bit resolution: 0.1 Hz at 25 MHz reference clock
  5. Sinusoidal, triangular, and square wave outputs
  6. 2.3 V to 5.5 V power supply
  7. No external components required
  8. 3-wire SPI interface

Package Includes:

1 x GY-9833 AD9833 Programmable Sine Square Wave DDS Signal Generator



Specifications :-

Power Supply

2.3 V to 5.5 V

Temperature Range

40C to +105C

Input Current

10A

Input Capacitance

3pF

Output Frequency Range

0 MHz to 12.5 MHz

Length(mm)

18

Width(mm)

13

Height(mm)

8

Weight(g)

1(approx)

Shipment Weight

0.01 kg

Shipment Dimensions

7 4 2 cm

Brand/Manufacturer
Country Of Origin
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 411.82 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

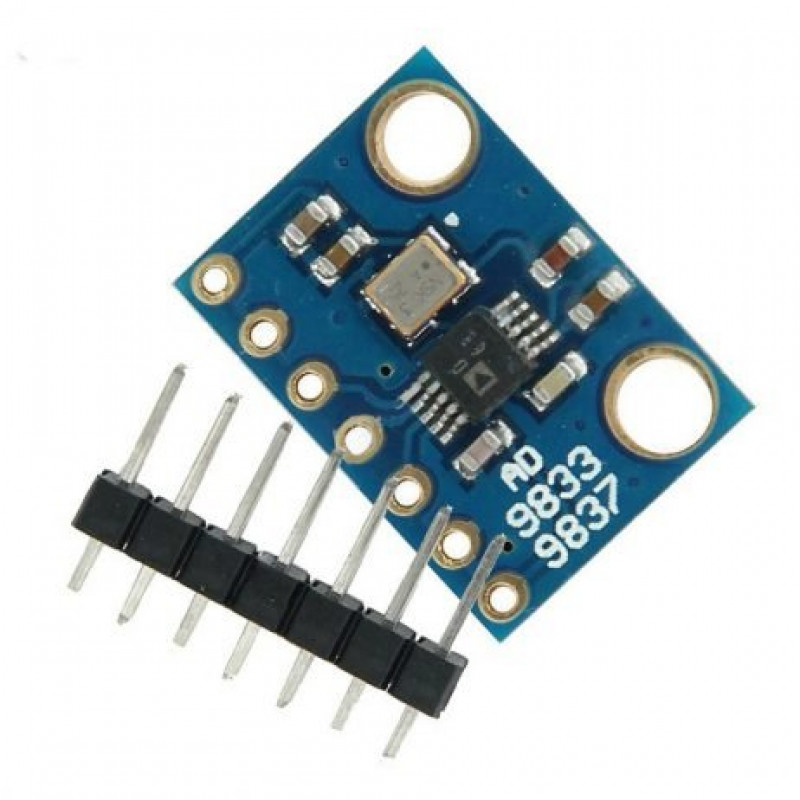

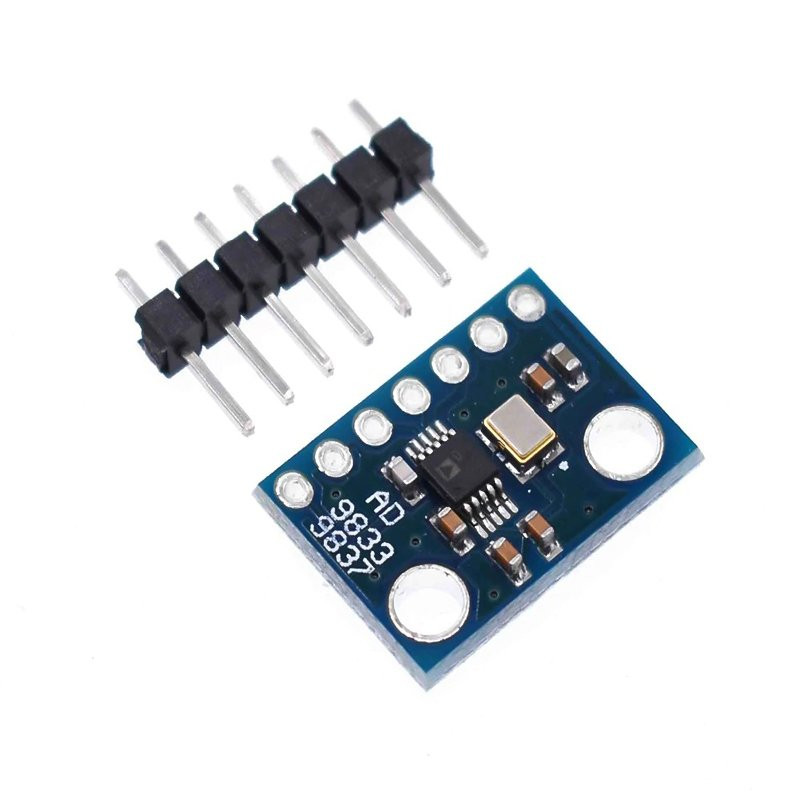

GY-9833 AD9833 Programmable Sine Square Wave DDS Signal Generator

  • Product Code: EC-7611
  • Availability: 465
  • Rs.349.00
  • (Excluding 18% GST)
