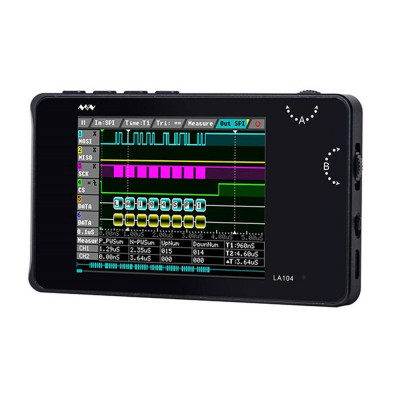

LA104 is a compact, portable logic analyzer with a display screen. It is widely applied to a variety of industries and fields, such as automotive electronics, communication, power supply and computer.
A logic analyzer is used to analyze the logic relationship of digital systems, as it can collect and store multichannel digital signals and directly display their sequential relationship on the screen. The logic analyzer is equipped with the function of protocol analysis and can parse the logic signal of the protocols physical layer into data of the high layer protocol and display them on the screen.
Features:
- Colour display.
- 4 Input Channels.
- 100MHz Max Sampling Rate.
- 100MHz Measuring Bandwidth.
- Built-In 8MB Flash Storage.

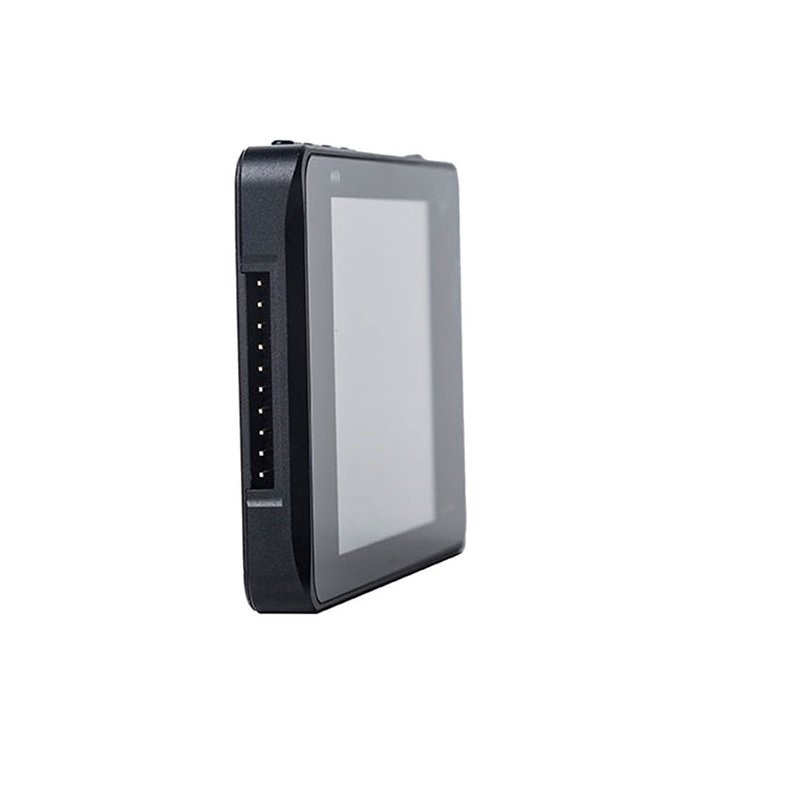

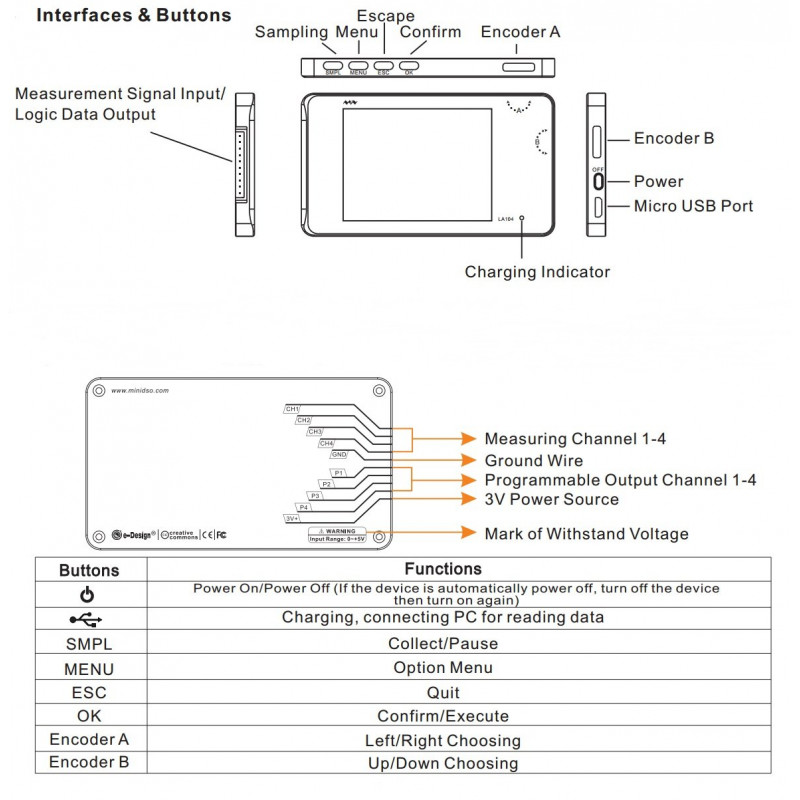

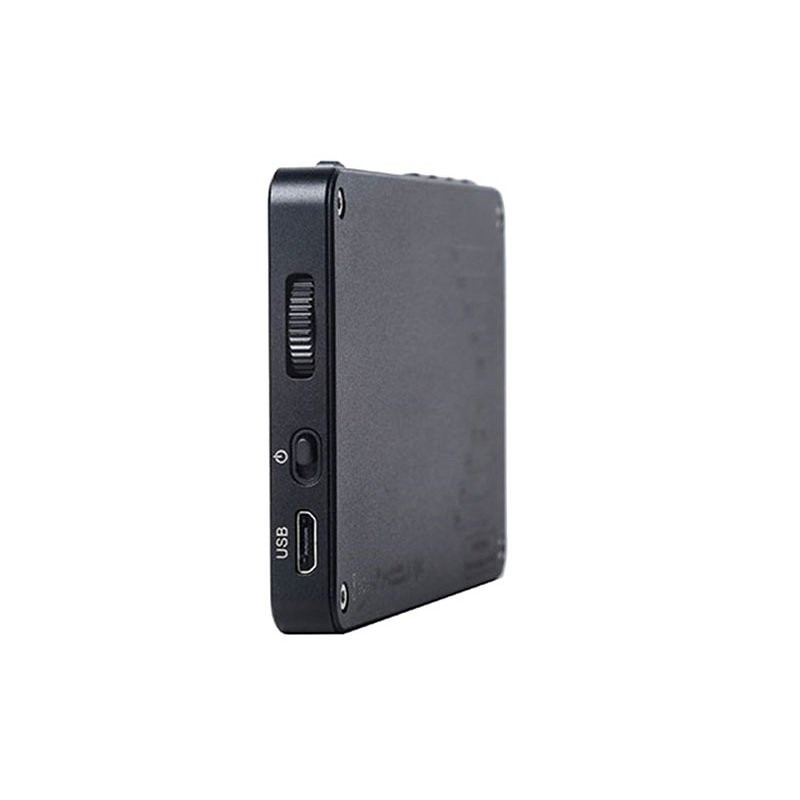

Compact Design:
Equipped with a rich 2.8 320240 TFT display and side thumbwheels allow for easy operation and navigation.

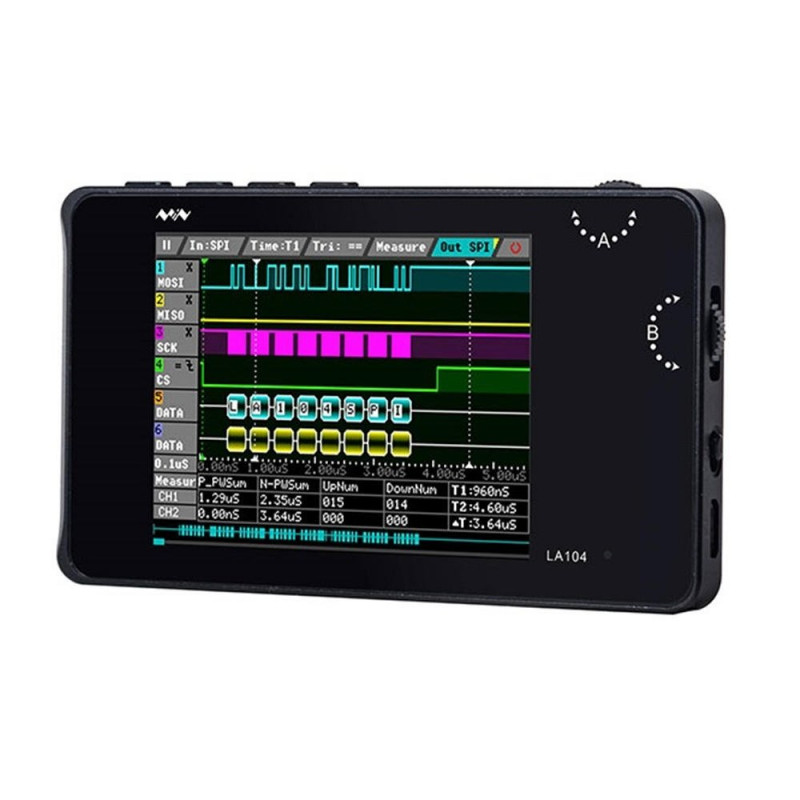

Wide Application:
Analyze UART, I2C, SPI, and many other standard protocols accepted. This unit is specially designed for UART, SPI, I2C, and other communication debugging.

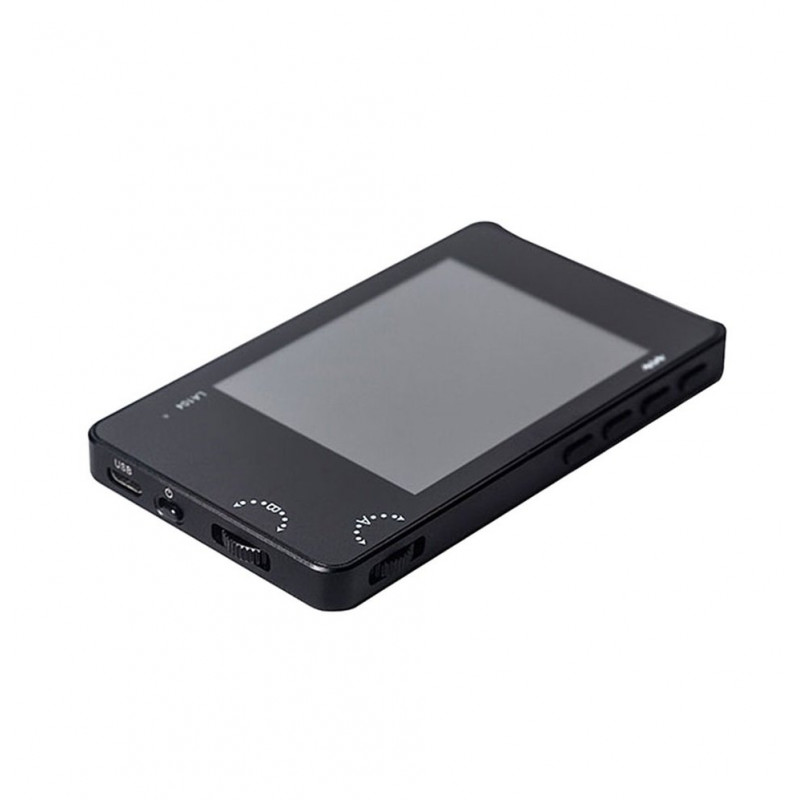

Portable:
Its small form factor conveniently fits inside any pocket so its always ready on the go!
Easy Saving:
The built-in 8 MB flash storage makes saving images and transferring data easier than ever!
Simple to Use:
Product instructions are provided, but if you have any more concerns, SainSmart provides more details in their wiki page and customer assistance with any questions that may arise!
Package Includes:

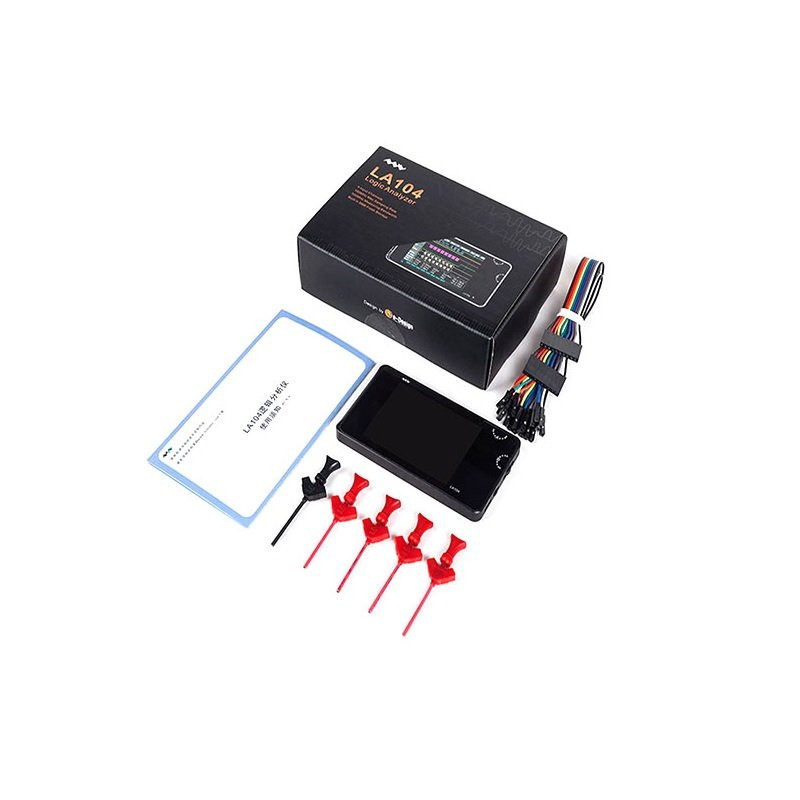

1 xMini DSO LA104 Digital Logic Analyzer + Accessories

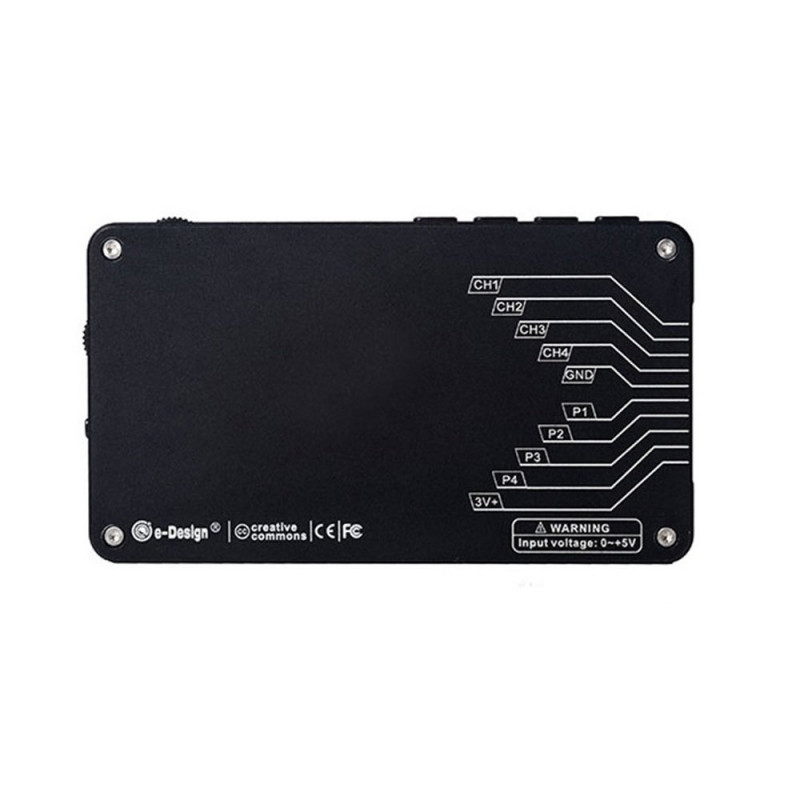

Specifications :-
| Input | Channels: 4 |
| Output | Channels: 4 |
| Stoarage | 8MB USB flash disk memory |
| Screen Size | 2.8'' |
| Screen Resolution | 320240 |

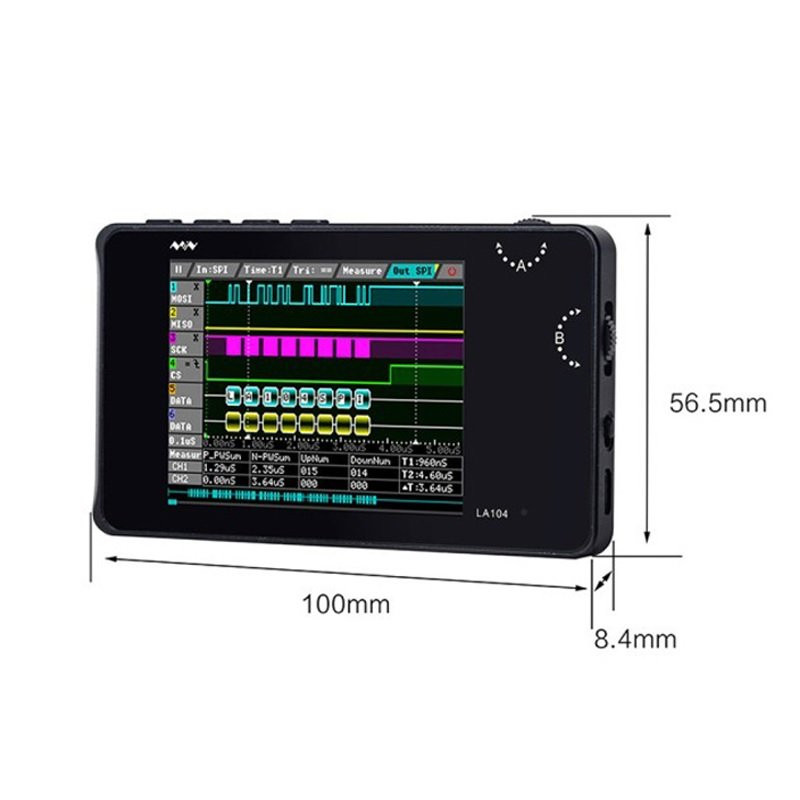

| Dimension (LxWxH)mm | 100 x 56 x 8.6 |
| Weight | 83g |
| Certifications | CE, FCC |
| Channel | 4 |
| Max Sampling Rate | 100M Sa/S |
| Min Captured Pulse width | 10ns |
| Input Voltage Range | 0-5V |
| Equivalent Input Impedance | 1M |
| Threshold Voltage | 1.2-3V |
| Programmable Output Channel | 4 |
| Programmable Output Type | PWM,SPI,I2C,UART |
| Programmable Output Amplitude | 3v |
| 3V Power Output Channel | 1 |
| Storage | Built-in 8M Flash Storage |
| Battery | Built-in 500mAh Lithium Battery |
| Shipment Weight | 0.1 kg |
| Shipment Dimensions | 10 7 3 cm |
| Brand/Manufacturer | |
| Country Of Origin | |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 10146.82 (Inclusive of all Taxes) |
